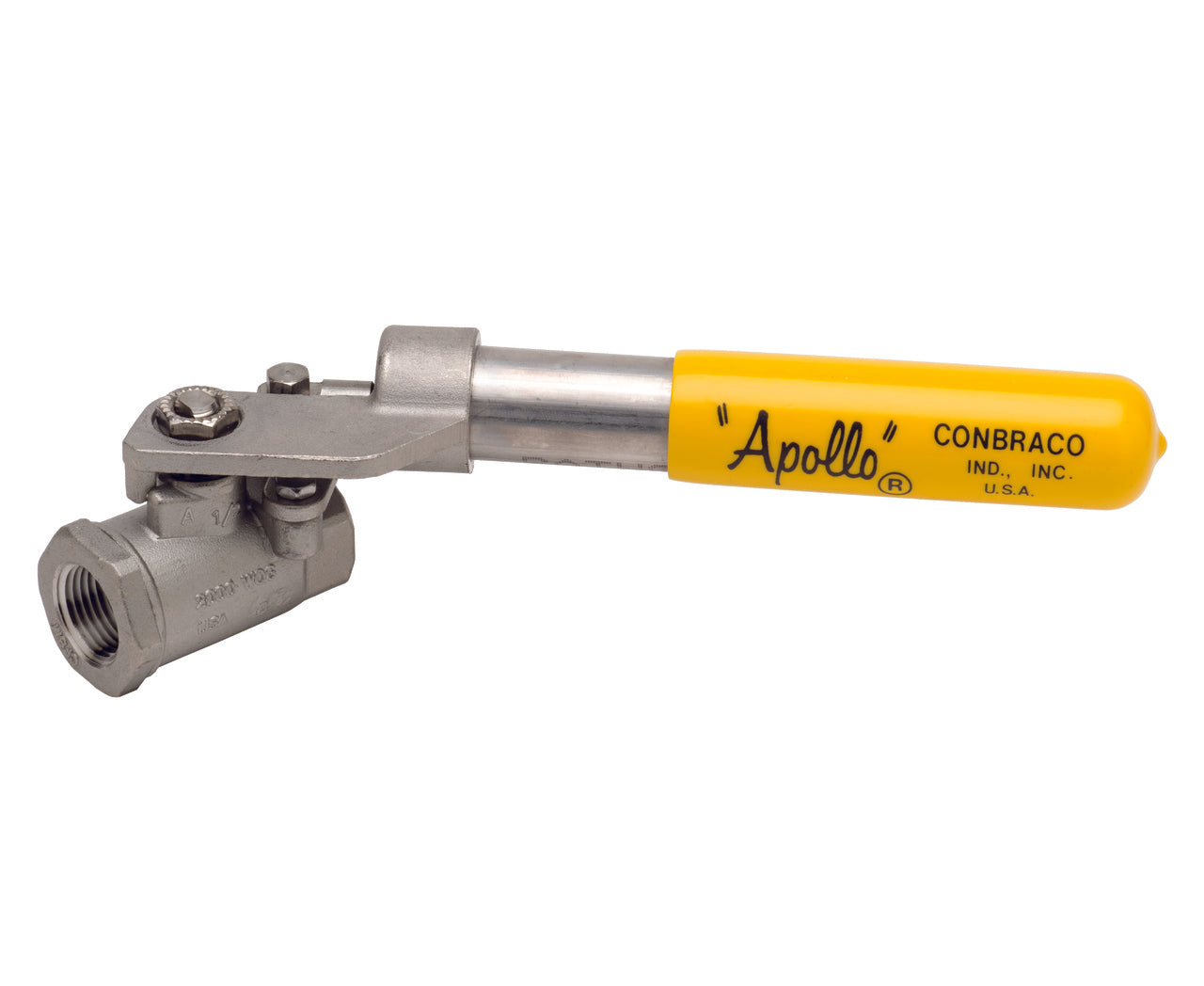

Conbraco 76-503-01A 1/2 Ss Thrd Std Ball Valve

Product Description

The CONBRACO 76-503-01A is a 2-Piece In-Line Standard Ball Valve, part of the Series 76-500. This valve features a stainless steel body and a lever handle operator. Designed with a 316 stainless steel stem and MPTFE stem packing, it meets industry standards MSS-SP-110 and NACE MR0175 (2000) & MR0103 (2012).

• 2-Piece In-Line Standard Ball Valve
• Stainless Steel Body Material
• Lever Handle Operator Type

Product Highlights

Standard ball valve with stainless steel body, lever handle, and 316 stainless steel stem. Meets MSS-SP-110 and NACE standards.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 76-503-01A
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 76-500
• Nominal Size: 1/2 IN
• Connection Type: FNPT
• Pressure Rating: 2000 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -50 To 500 DEG F
• Body Material: Stainless Steel
• Operator Type: Lever Handle
• Handle Material: Stainless Steel
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Packing Material: MPTFE Stem
• Seat Material: MPTFE
• Seal Material: PTFE
• Material Standard: Body: ASTM A351 Grade CF8M, Ball And Stem: ASTM A276
• Industry Standards: MSS-SP-110 Compliant, Meets NACE MR0175 (2000) And MR0103 (2012)
• Width: 2-1/4 IN
• Lead Free: No
• Handle Length: 7 IN
• Pipe Size: 1/2 in
• Port Size: 1/2 NPT
• Stem Type: Blowout Proof
• Body Style: Inline
• Ball Material: 316 Stainless Steel
• Valve Structure: 2-Piece
• Maximum Pressure: 2000 psi CWP
• Temperature Range: -50 to 500 °F
• Body Seal Material: PTFE
• Valve Body Material: Stainless Steel
• Media Pressure Rating: Cold Water - 2000 psi Steam - 150 psi
• Maximum Steam Pressure: 150 PSI WSP
• Compliance Specifications: ISO 9001
• Flow Coefficient (Cv) / Flow Factor (Kv): 15 Cv
• Port: Full
• Size: 1/2"
• Stem Packing: Multifill PTFE (MPTFE)
• Stem Bearing: RPTFE
• Materials: stainless steel (ASTM A351 CF8M)
• Finishing: none
• Shape: straight
• Connection type: FPT - female thread conical (NPT)
• Bore (Full bore): 12.7 mm (No)
• Product group: valves (ball valves)
• ETIM class: EC011343 Ball valve
• Housing material: Stainless steel
• Surface protection housing: None
• Material ball: Stainless steel
• Material spindle: Stainless steel
• Material primary spindle seal: Polytetrafluoroethylene (PTFE)
• Nominal diameter connection 1: DN 15
• Outer pipe diameter connection 1: 21.34mm
• Outer pipe diameter connection 1 (imperial): 0.84"
• Connection 1: Internal thread conical (NPT)
• Nominal diameter connection 2: DN 15
• Outer pipe diameter connection 2: 21.34mm
• Outer pipe diameter connection 2 (imperial): 0.84"
• Connection 2: Internal thread conical (NPT)
• With filter: No
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• Medically clean: No
• Grease-free: No
• Housing construction: 2-part
• Full bore: No
• Length of connection 1: 28.45mm
• Length of connection 1 (imperial): 1.12"
• Working length connection 1: 14.22mm
• Working length connection 1 (imperial): 0.56"
• Length of connection 2: 28.19mm
• Length of connection 2 (imperial): 1.11"
• Working length connection 2: 14.73mm
• Working length connection 2 (imperial): 0.58"
• Handle height: 14.22mm
• Handle height (imperial): 0.56"
• Handgrip length: 16.51mm
• Handgrip length (imperial): 0.65"
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• Material: Stainless Steel
• End Style: Threaded
• Type: Ball Valve
• Series: 76-500
• Manufacturer: Aalberts Integrated Piping Systems
• Category: Ball Valves
