Conbraco 75-108-01 2 Brz Ball Valve 2 IN

Product Description

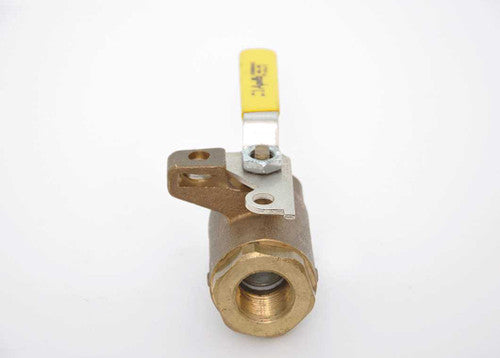

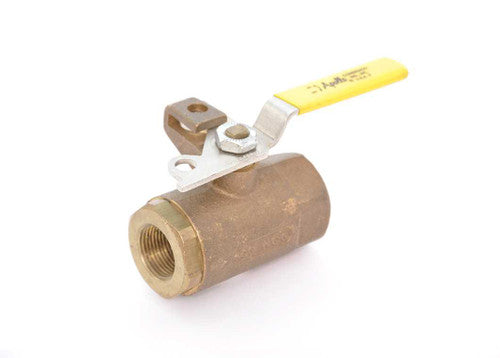

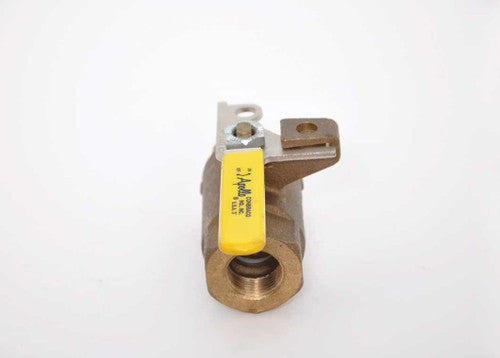

The CONBRACO 75-108-01 is a standard ball valve from the Series 75-100, featuring a 2 IN nominal size and FNPT connection type. Designed with a bronze body and a locking lever handle, it withstands pressure up to 600 PSI (CWP) and 150 PSI (SWP). It is suitable for temperatures ranging from 0 to 500 DEG F.

• Standard Ball Valve
• Locking Lever Handle
• Compliant with MSS-SP-110 and WW-V-35C Federal Specification

Product Highlights

This bronze ball valve offers a 1-1/2 IN opening, steel handle with vinyl grip, and brass stem, making it suitable for various applications requiring a reliable shut-off mechanism.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 75-108-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 75-100
• Nominal Size: 2 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 0 - 500 DEG F
• Opening: 1-1/2 IN
• Body Material: Bronze
• Operator Type: Locking Lever Handle
• Handle Material: Steel, zinc plated w/vinyl
• Stem Material: Brass
• Trim Material: Brass Stem and RPTFE Seat
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Body Material Standard: ASTM B584
• Ball And Stem Material Standard: ASTM B16
• Body Material Specification: UNS C84400
• Handle Finish/Color: Zinc Plated
• Ball Finish/Color: Chrome Plated
• Industry Standards: MSS-SP-110 Compliant, WW-V-35C Federal Specification, CRN: OC10908.5C
• Width: 4.68 IN
• Lead Free: No
• Other Physical Dimension: 3.06 IN Inlet Center To Top Of Handle, 5-1/2 IN Handle Length
• Flow Co-Efficient (Cv): 108
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Stem Seal Material: MPTFE
• Valve Body Material: B584 Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Port: Full
• Handle Type: Lever
• Stem Packing: MPTFE
• Stem Bearing: RPTFE
• End Style: FNPT
• Port Type: Standard
• Softgoods Material: MPTFE
• Actuator Type: Lever
• Inlet to Outlet Length: 4.68 in
• Manufacturer: Apollo Conbraco
• Manufacturer #: 75-108-01
• Series: 75-100 Series
• Top to Inlet Center: 3.06 in
• Type: 2-Piece
• Domestic/Import: Domestic
• Material Standard: ASTM B584-C84400, ASTM B283-C37700, ASTM B16
• Media: Gas, Water
• Orifice Size: 1-1/2 in
