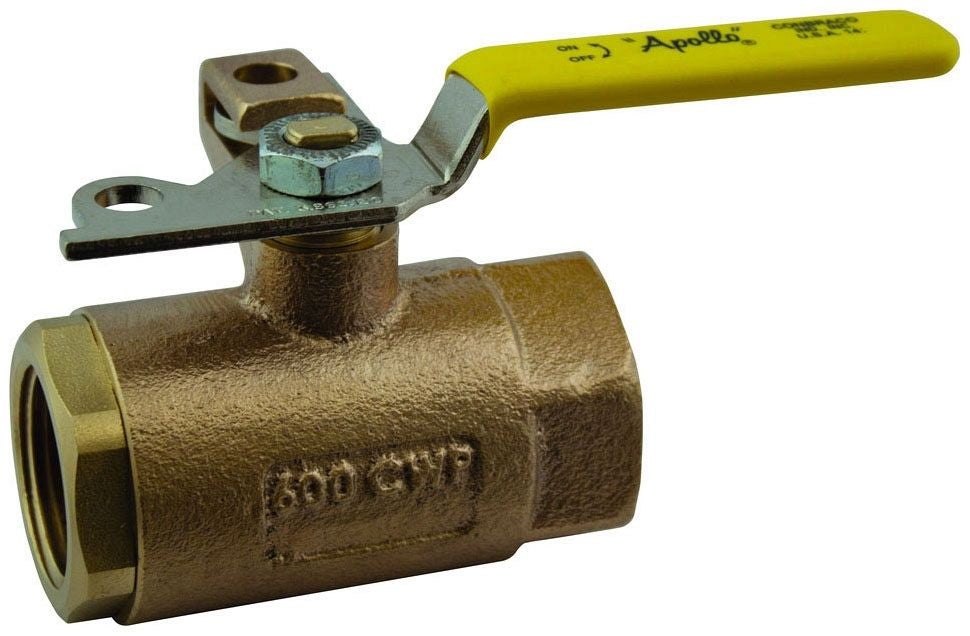

Conbraco 75-107-01 Bronze Ball Valve 1-1/2 IN

Product Description

The CONBRACO 75-107-01 is a standard bronze ball valve with a 1-1/2 IN nominal size and FNPT connection type. Suitable for applications requiring a pressure rating of 600 PSI (CWP) or 150 PSI (SWP) and temperatures from 0 to 500 DEG F. Features a locking lever handle for secure operation.

• Nominal Size: 1-1/2 IN
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Locking Lever Handle

Product Highlights

This bronze ball valve offers secure operation with a locking lever handle and is suitable for a wide range of pressure and temperature requirements.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 75-107-01

Technical Specifications

• Series/Model: Series 75-100
• Nominal Size: 1-1/2 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 0 - 500 DEG F
• Opening: 1-1/4 IN
• Body Material: Bronze
• Handle Operator Type: Locking Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Stem and RPTFE Seat
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Width: 4.37 IN
• Lead Free: No
• Other Physical Dimension: 2.87 IN Inlet Center To Top Of Handle, 5-1/2 IN Handle Length
• Flow Co-Efficient (Cv): 84
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Flow Direction: 2-Way
• Locking Device: Pad-Locking Device
• Overall Length: 4.31 in
• O-Ring Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: B584 Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Port Size: 1-1/2 NPT
• CWP: 600
• Pieces: 2
• Valve Operation: Manual
• Domestic / Import: Domestic
• End Style: FNPT
• Port Type: Standard
• Softgoods Material: MPTFE
• Actuator Type: Lever
• Inlet to Outlet Length: 4.37
• Manufacturer: Apollo Conbraco
• Manufacturer #: 75-107-01
• Top to Inlet Center: 2.87
