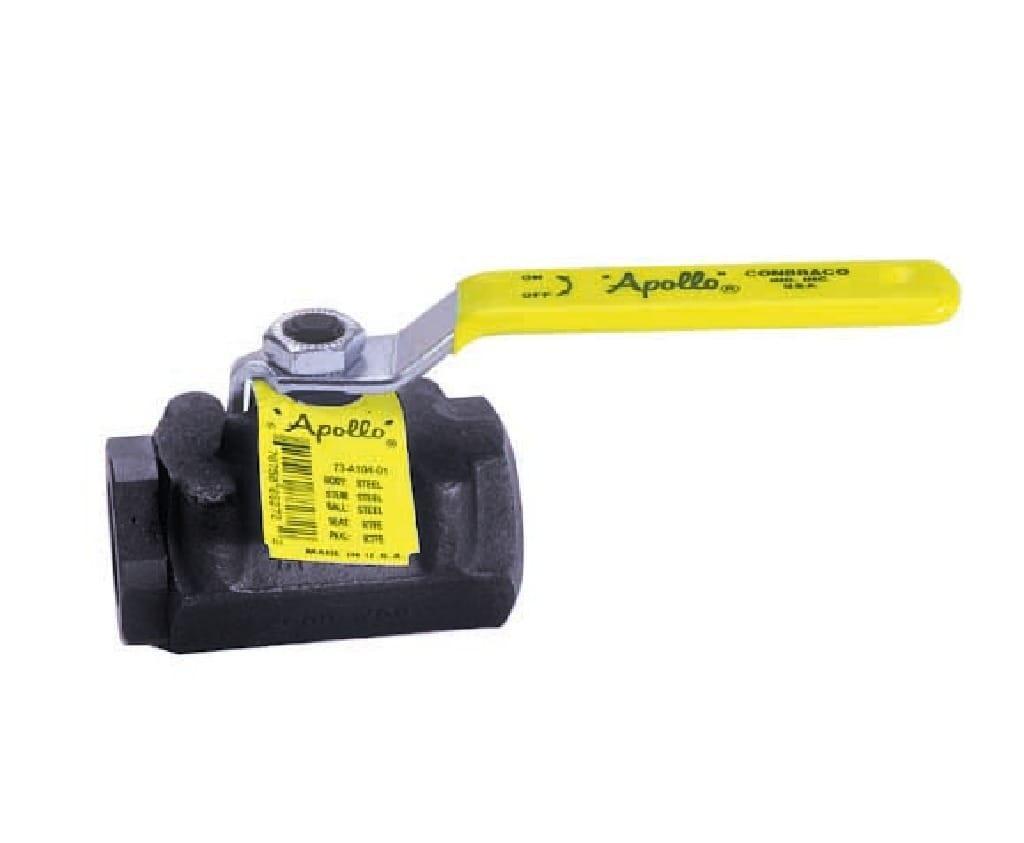

Conbraco 73A-104-01A 3/4 CS Std Ball Valve 3/4 in

Product Description

The CONBRACO 73A-104-01A is a 2-Piece In-Line Standard Ball Valve, part of the Series 73A-100. It features a 3/4 IN nominal size and FNPT connection type. The valve is constructed with a carbon steel body and a lever handle operator. Suitable for gas and water media with a pressure rating of 2000 PSI (CWP).

• 2-Piece In-Line Standard Ball Valve
• FNPT Connection
• Carbon Steel Body
• Lever Handle Operator

Product Highlights

Durable carbon steel ball valve with lever handle, suitable for various applications with its robust pressure rating.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 73A-104-01A
• Country of Origin: US

Technical Specifications

• Series/Model: Series 73A-100
• Nominal Size: 3/4 in
• Connection Type: FNPT
• Pressure Rating: 2000 psi CWP
• Temperature Rating: -20 To 450 DEG F
• Opening: 0.81 IN
• Body Material: Forged Carbon Steel
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Carbon Steel Or Stainless Steel
• Trim Material: Carbon Steel Ball
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: RPTFE
• Material Standard (Body And Stem): ASTM A108
• Finish/Color: Zinc Plated Handle, Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, AAR Approved #E999032
• Width: 3.07 IN
• Lead Free: No
• Flow Co-Efficient (Cv): 30
• Actuator Type: Lever Handle
• Ball Material: Carbon Steel
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 3.07 in
• Media: Gas/Water
• Orifice Size: 0.68 in
• Port Type: Standard
• Softgoods Material: MPTFE
• Top to Inlet Center: 2.07 in
• Type: 2-Piece
• Mfg Standards/Approvals: AAR Approved E999032, ASTM A105 Valve Body, ASTM A108, MSS SP-110
• Warranty: 5 Years
