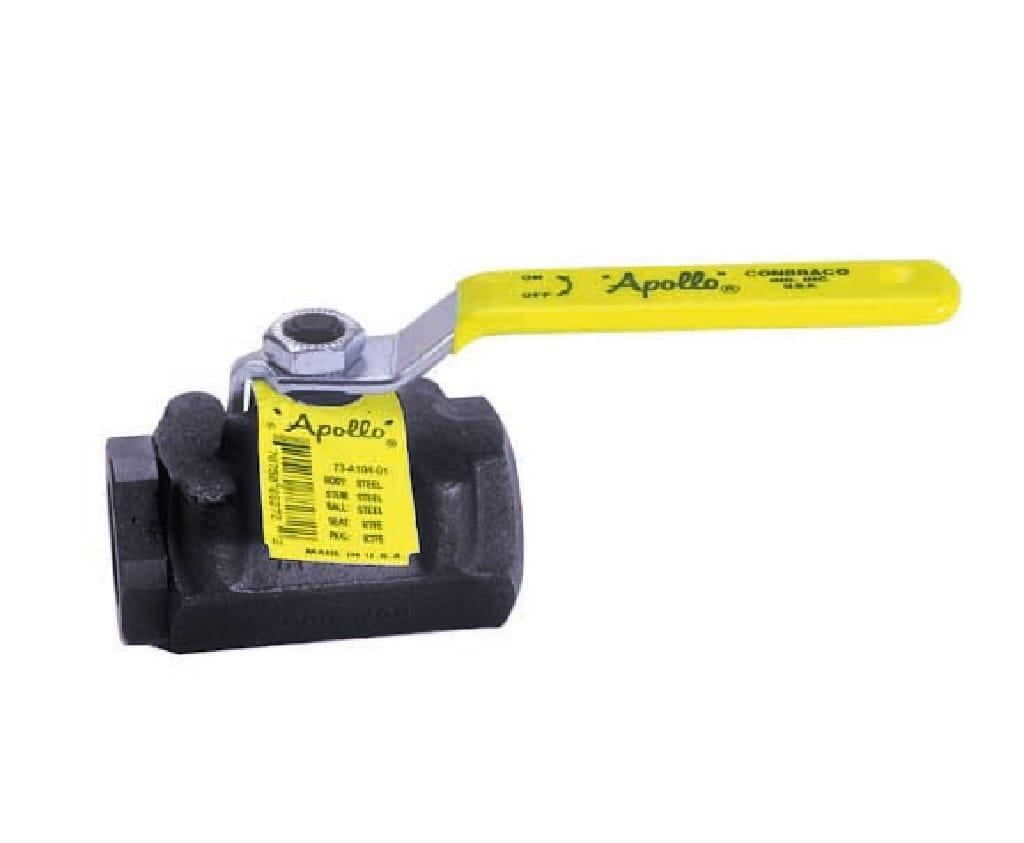

Conbraco 73A-101-01A 1/4 CS Std Ball Valve

Product Description

The CONBRACO 73A-101-01A is a 2-Piece In-Line Standard Ball Valve, part of the Series 73A-100. It features a 1/4 IN nominal size and FNPT connection type. Constructed with a carbon steel body and a lever handle, it is suitable for applications requiring a reliable shutoff. Pressure rated to 2000 PSI (CWP) and 150 PSI (SWP).

• 2-Piece In-Line
• Standard Ball Valve
• Lever Handle

Product Highlights

The valve offers a temperature rating of -20 To 450 DEG F and a flow co-efficient (Cv) of 8.4.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 73A-101-01A
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 73A-100
• Nominal Size: 1/4 IN
• Connection Type: FNPT
• Pressure Rating: 2000 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 450 DEG F
• Opening: 0.37 IN
• Body Material: Carbon Steel
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Carbon Steel Or Stainless Steel
• Trim Material: Carbon Steel/RPTFE
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: RPTFE
• Material Standard: Body And Stem: ASTM A108
• Finish/Color: Zinc Plated Handle, Chrome Plated Ball
• Industry Standards: MSS-SP-110 Compliant, AAR Approved #E999032
• Width: 2.3 IN
• Lead Free: No
• Flow Co-Efficient (Cv): 8.4
• Port Type: Standard
• Softgoods Material: MPTFE
• Actuator Type: Lever Handle
• Ball Material: Chrome Plated Carbon Steel
• Inlet to Outlet Length: 2.3 in
• Manufacturer Name: Apollo Conbraco
• Media: Water
• Top to Inlet Center: 1.72 in
• Type: 2-Piece
• Includes: Adjustable Packing Gland
• Warranty: 5 Years
• Domestic/Import: Domestic
