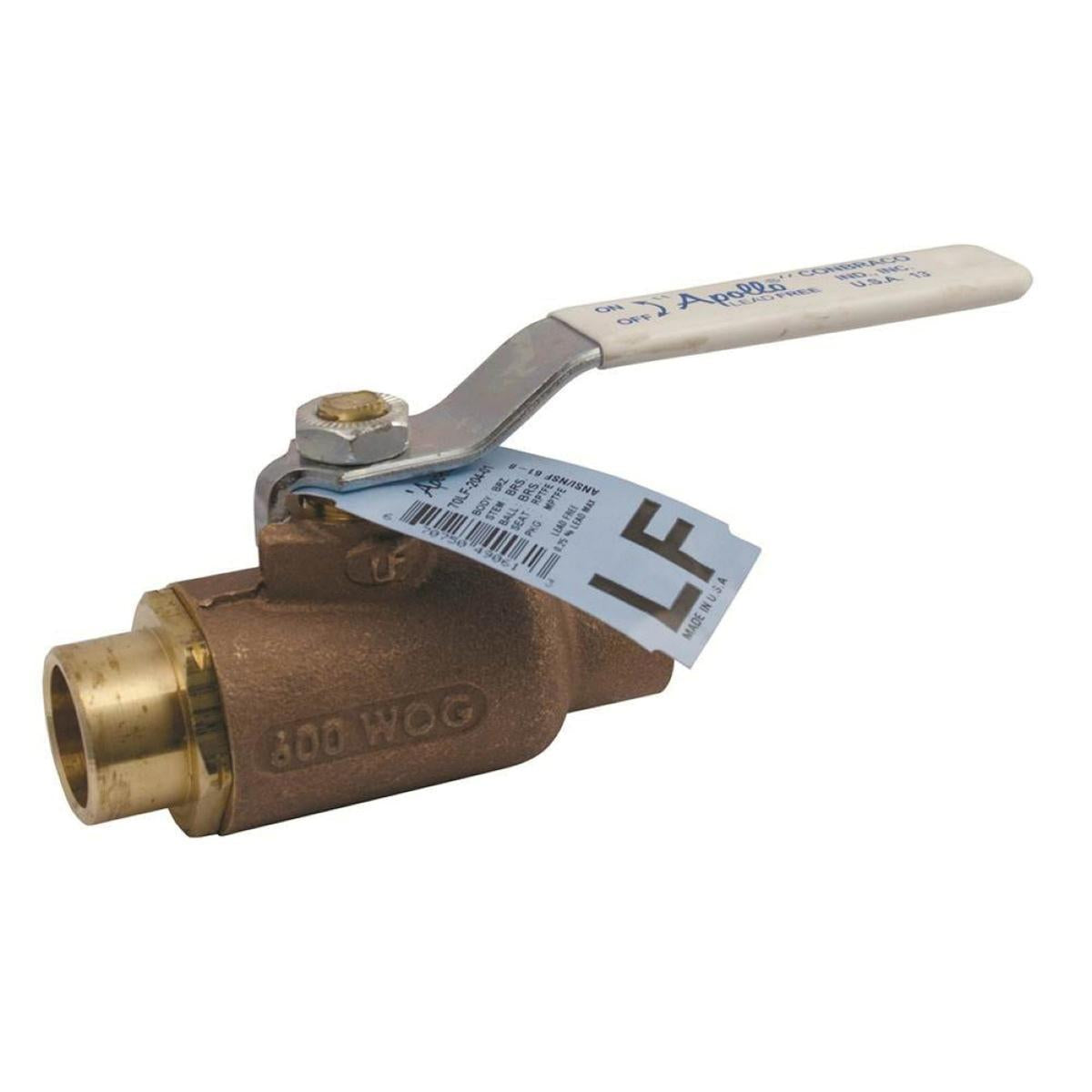

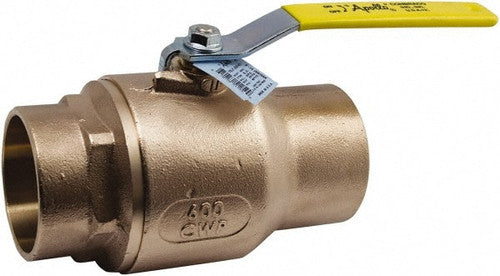

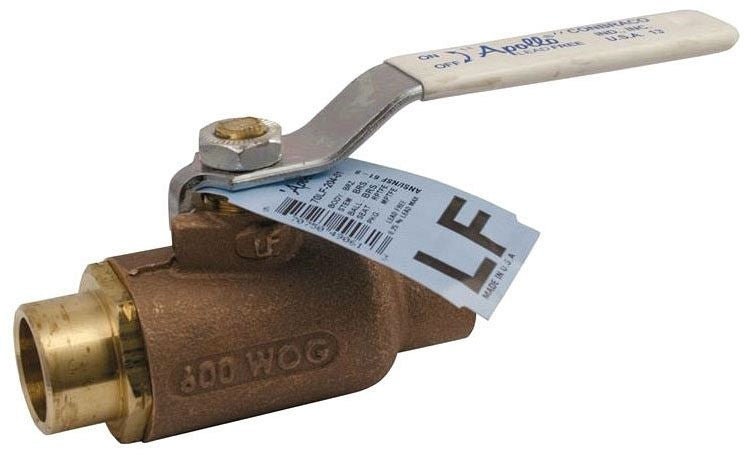

Conbraco 70LF-206-01 1-1/4 Lead Free Brz Sweat Ball Valve

Product Description

The CONBRACO 70LF-206-01 is a 2-piece in-line standard ball valve from the Series 70LF-200. It features a 1-1/4 IN nominal size and a compression (solder) connection type. The valve has a pressure rating of 600 PSI (CWP) and 150 PSI (SWP), with a temperature rating of -50 to 450 DEG F. Suitable for plumbing and heating systems, including potable water.

• Lead Free
• 2-Piece In-Line Standard Ball Valve
• Bronze body material

Product Highlights

This lead-free bronze ball valve is ideal for plumbing and heating systems, including potable water applications. It features a steel lever handle with vinyl grip and RPTFE seats.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70LF-206-01
• Country of Origin: USA

Technical Specifications

• Series/Model: Series 70LF-200
• Nominal Size: 1-1/4 IN
• Connection Type: Compression (Solder)
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -50 To 450 DEG F
• Opening: 1 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: RPTFE Stem
• Seat Material: RPTFE
• Seal Material: Reinforced Polytetrafluroethylene
• Body Material Specification: UNS C89836
• Ball And Stem Material Specification: UNS C27451
• Handle Finish/Color: Zinc Plated
• Ball Finish/Color: Chrome Plated
• Industry Standards: MSS-SP-110 Compliant, NSF /ANSI 61-8, Annex G, NSF/ANSI 372, NSF /ANSI 372 Lead Free ANSI 3rd Party Certified, CRN: OC10908.5C
• Lead Free: Yes
• Actuator Type: Lever
• Ball Material: Brass
• Configuration: Standard
• Domestic/Import: Domestic
• Flow Coefficient (Cv): 48 Cv
• Inlet to Outlet Length: 4.62 in
• Material Standard: ASTM C89836, ASTM C27451, ASTM B16
• Media: Gas, Water
• Orifice Size: 1 in
• Port Type: Regular
• Series: 70LF-200 Series
• Actuation Type: Lever Handle
• Applicable Standard: MSS SP-110, ANSI/NSF 61/372, CRN OC10908.5C, UPC
• Application: Plumbing and Heating System, Potable Water
• End Connection: Soldered x Soldered
• Inclusions/Features: Zinc Plated Steel Lever Nut, Brass Gland Nut, C89836 Bronze Retainer, Adjustable Packing Gland
• Type: 2-Piece
• Valve Type: Standard Ball Valve
• Pipe Size: 1-1/4
• Valve Structure: 2-Piece
• Handle Type: Lever
• Standards: MSS SP-110 Compliant
