Product Description

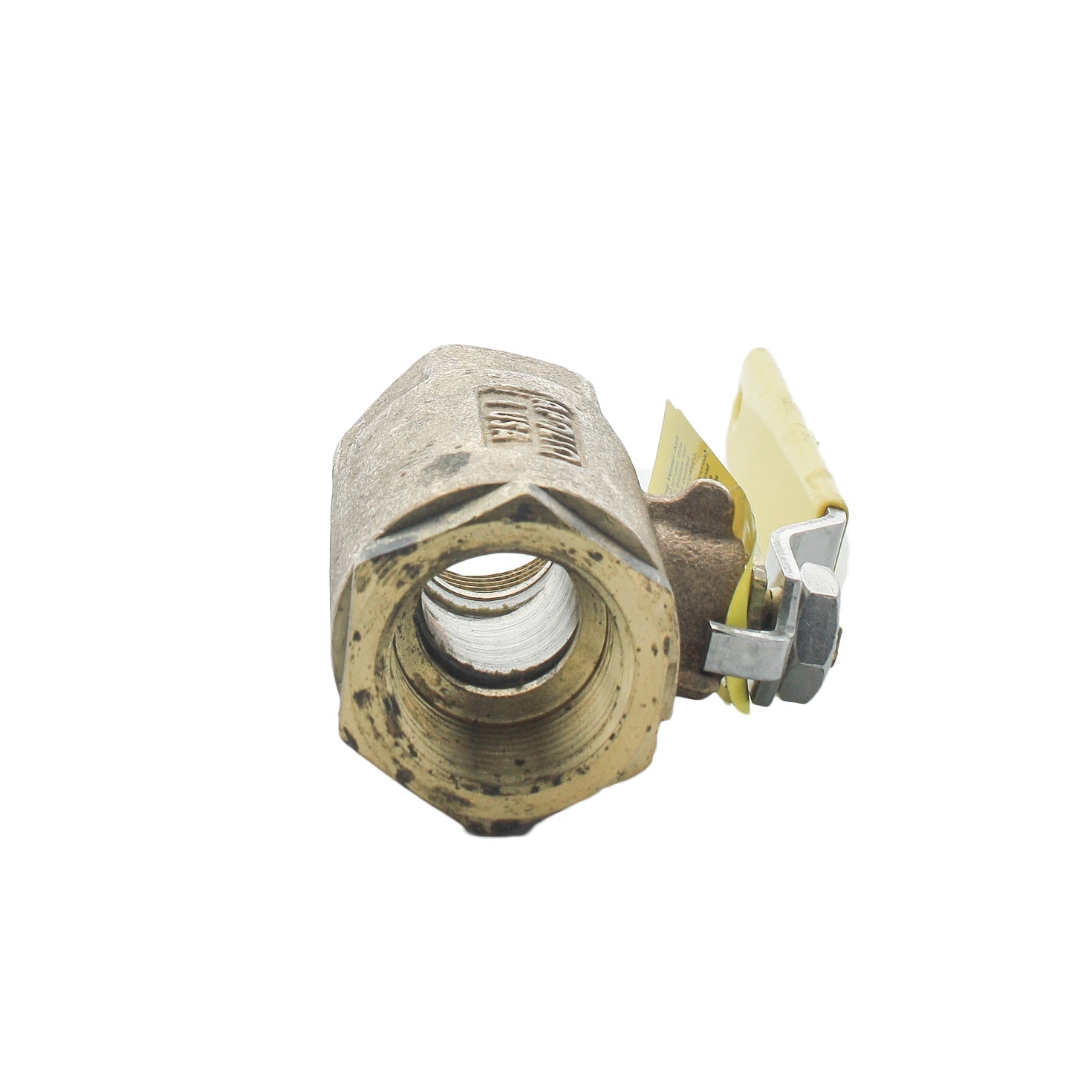

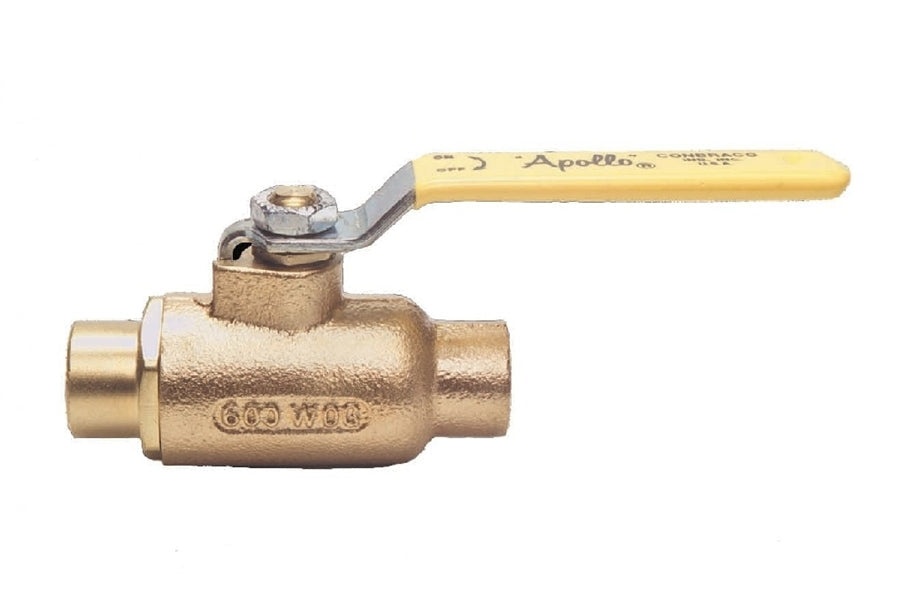

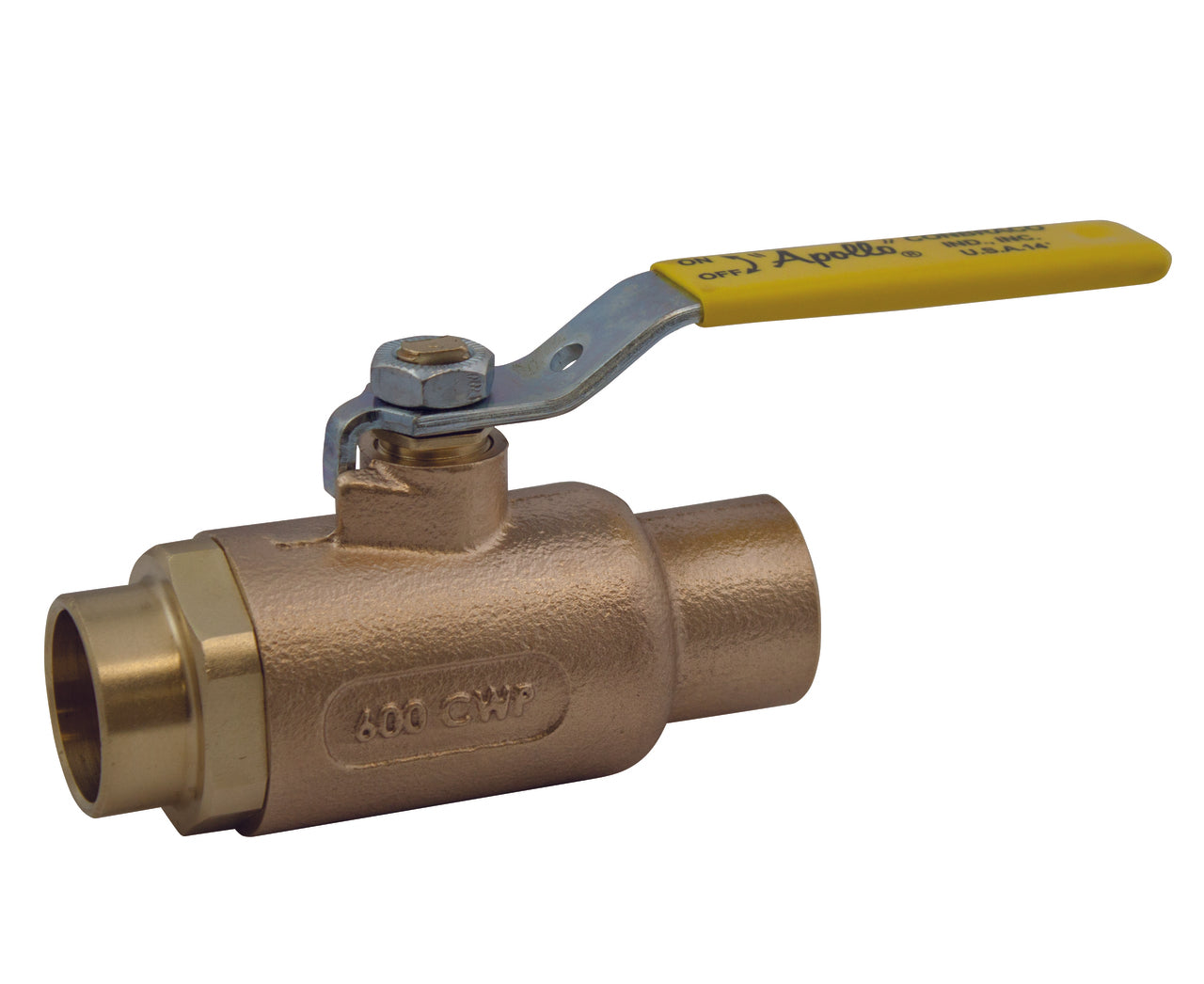

The CONBRACO 70-208-01 is a 2-piece in-line standard ball valve from the Series 70-200. This 2 IN nominal size valve features a solder connection type and is constructed with a bronze body. It is designed for a pressure rating of 600 PSI (CWP) and 150 PSI (SWP), with a temperature range of -20 to 500 DEG F.
- Nominal size of 2 IN with a 1-1/2 IN opening.

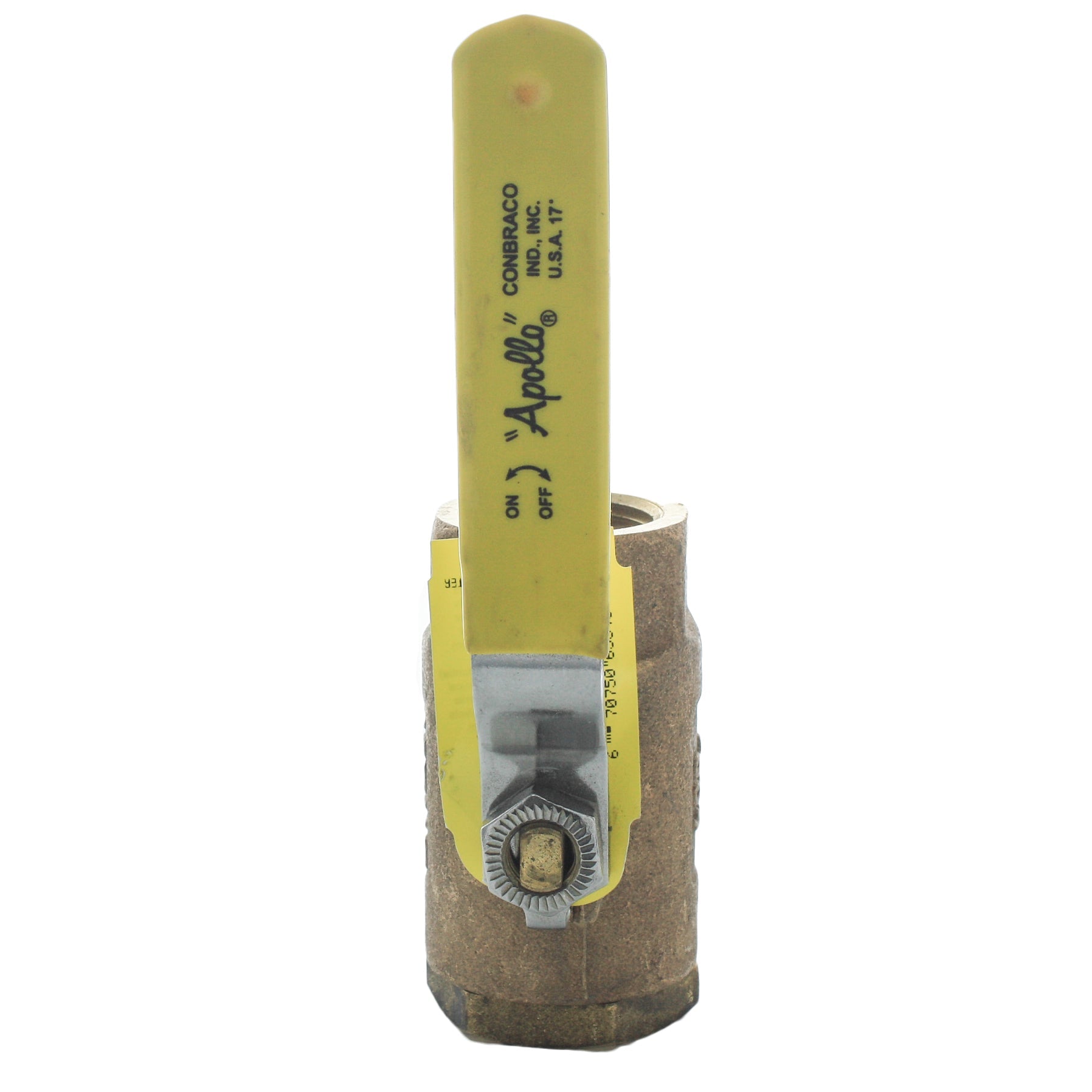

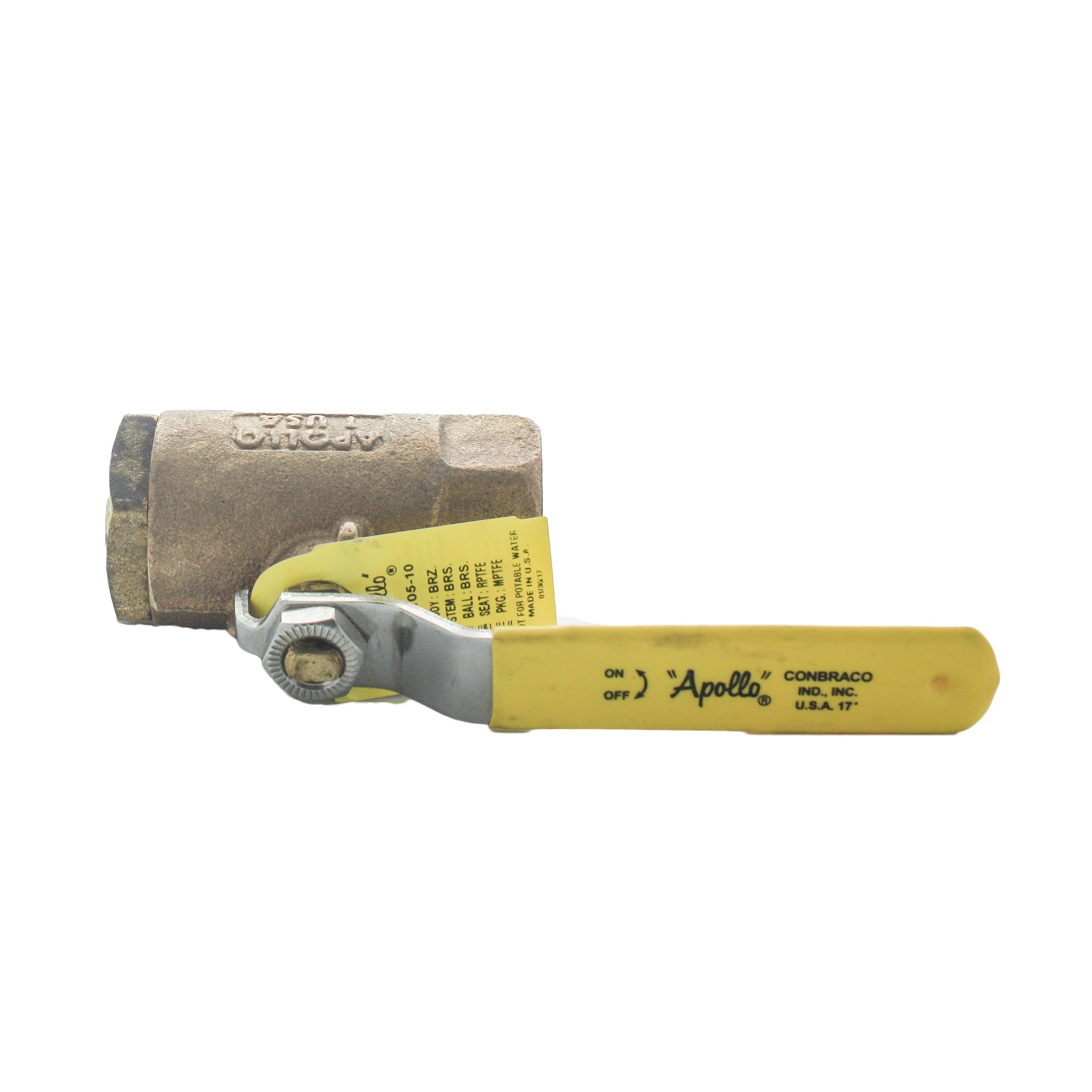

- Features a lever handle operator made of steel with a vinyl grip.
- Compliant with MSS-SP-110 and CSA B51 industry standards.
Product Highlights
This bronze ball valve is ideal for general purpose use, designed for soft soldering into lines without disassembly, and provides reliable performance.
Product Information
Standard Information
-
Brand: CONBRACO
-
Manufacturer Part Number: 70-208-01
-
Country of Origin: US
Technical Specifications
-
Series/Model: Series 70-200
-
Nominal Size: 2 IN
-
Connection Type: Solder
-
Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
-
Temperature Rating: -20 To 500 DEG F
-
Opening: 1-1/2 IN
-
Body Material: Bronze
-
Operator Type: Lever Handle
-
Handle Material: Steel With Vinyl Grip
-
Stem Material: Brass
-
Trim Material: Brass Ball
-
Packing Material: MPTFE Stem
-
Seat Material: RPTFE
-
Seal Material: PTFE
-
Material Standard (Body): ASTM B584
-
Material Standard (Ball And Stem): ASTM B16
-
Material Specification (Body): UNS C84400
-
Finish/Color: Zinc Plated Handle, Chrome Plated Ball
-
Industry Standards: MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
-
Width: 6.37 IN
-
Lead Free: No
-
Other Physical Dimension: 3-1/4 IN Inlet Center To Top Of Handle, 8 IN Handle Length
-
Flow Co-Efficient (Cv): 108
-
End Style: Solder
-
Port Type: Standard
-
Softgoods Material: MPTFE/RPTFE
-
Actuator Type: Lever Handle
-
Ball Material: Chrome Plated Brass
-
Inlet to Outlet Length: 6.37 in
-
Manufacturer Name: Apollo Conbraco
-
Media: Water
-
Orifice Size: 1-1/2 in
-
Type: 2-Piece
-
Warranty: 5 Years
-
Domestic/Import: Domestic
-
Category: Ball Valves
