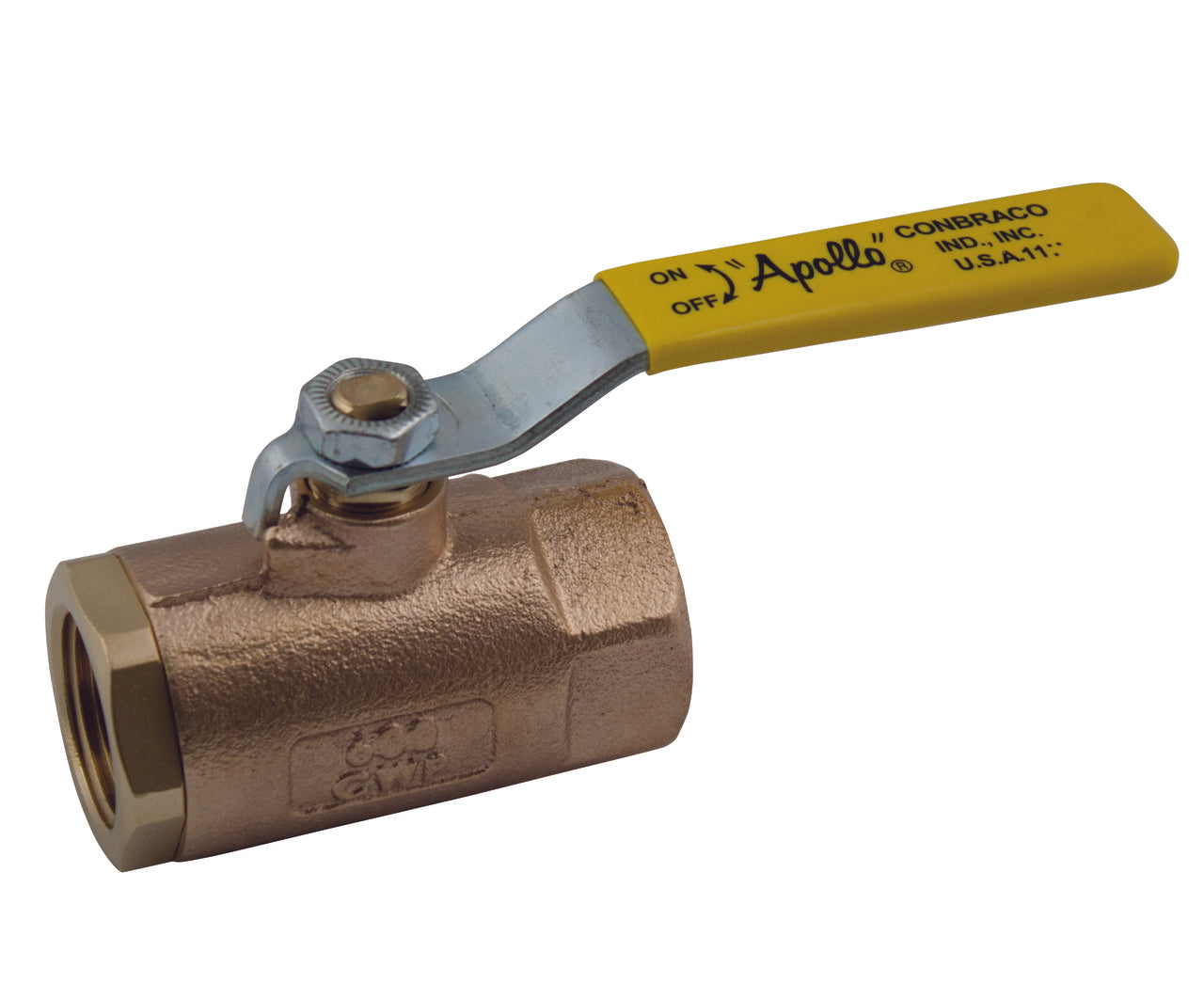

Conbraco 70-144-01 3/4 Brz Std Ball Valve

Product Description

The CONBRACO 70-144-01 is a 2-piece in-line standard port ball valve with a 3/4 inch nominal size and FNPT connection. Constructed with a bronze body and 316 stainless steel ball and stem, this valve is suitable for general purpose use with water and gas media. It features a lever handle and MPTFE seats, with a pressure rating of 600 PSI (CWP) and 150 PSI (SWP).

• Bronze body material conforming to ASTM B584 UNS C84400
• 316 Stainless Steel ball and stem conforming to ASTM B16
• Temperature rating of -20 to 500 DEG F

Product Highlights

This bronze ball valve offers reliable performance with its robust construction and industry standard compliance, suitable for various applications.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-144-01

Technical Specifications

• Series/Model: Series 70-140
• Nominal Size: 3/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 500 DEG F
• Opening: 0.68 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Zinc Plated Steel w/ Vinyl Grip
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Seat Material: MPTFE
• Seal Material: PTFE
• Material Standard - Body: ASTM B584
• Material Standard - Ball And Stem: ASTM B16
• Material Specification - Body: UNS C84400
• Finish/Color: Chrome Plated Ball, Zinc Plated Handle
• Industry Standards: MSS-SP-110 Compliant, CRN: OC10908.5C
• Width: 3 IN
• Lead Free: No
• Other Physical Dimension: 2.12 IN Inlet Center To Top Of Handle, 4.87 IN Handle Length
• Flow Co-Efficient (Cv): 30
• Port Size: 3/4 NPT
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Ball Material: 316 Stainless Steel
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Cast Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Maximum Operating Temperature: 450 °F
• Minimum Operating Temperature: -20 °F
• Flow Direction: 2-Way
• Overall Length: 3.00 in
• Media: Gas, Water
• Orifice Size: 0.68 in
• Packing Material: MPTFE
• Port Type: Standard
• Actuator Type: Lever
• Domestic/Import: Domestic
• Inlet to Outlet Length: 3 in
• Material Standard: ASTM B584-C84400, ASTM B16
• Top to Inlet Center: 2.12 in
• End Style: Threaded
• Type: Ball Valve
• Apollo Number: 70-144-01
• Port Threads: 3/4" Pipe
