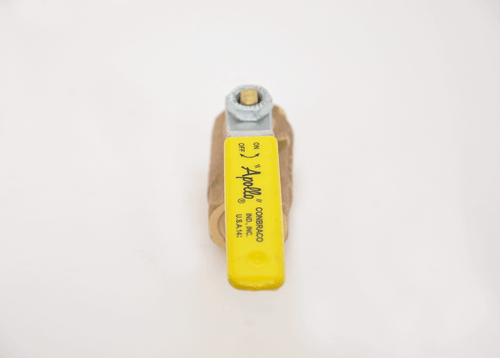

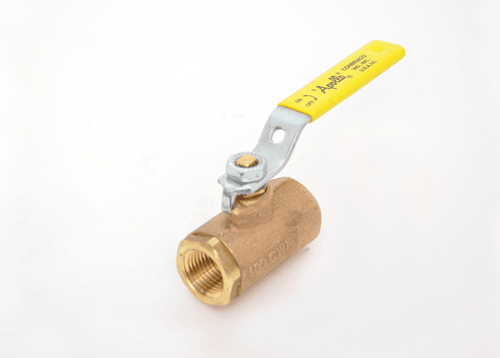

Conbraco 70-108-01 Bronze Ball Valve 2 in

Product Description

The CONBRACO 70-108-01 is a 2 IN bronze ball valve designed for inline threaded connections. It features a lever handle for manual operation and is suitable for applications involving water, oil, and gas. This valve is rated for 600 PSI (CWP) and 150 PSI (SWP), with a temperature range of -20 to 450 DEG F.

• Nominal Size: 2 IN
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Body Material: Bronze

Product Highlights

This bronze ball valve offers reliable performance with its robust construction and standard port design, suitable for various industrial applications.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-108-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 70-100
• Nominal Size: 2 IN
• Connection Type: Threaded (FNPT x FNPT)
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 450 DEG F
• Opening: 1-1/2 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Zinc Plated Steel w/ Vinyl Grip
• Stem Material: B16 Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Body Material Standard: ASTM B584
• Ball And Stem Material Standard: ASTM B16
• Body Material Specification: UNS C84400
• Finish/Color: Chrome Plated Ball, Zinc Plated Handle
• Industry Standards: MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
• Width: 4.68 IN
• Lead Free: No
• Other Physical Dimension: 3-1/4 IN Inlet Center To Top Of Handle, 8 IN Handle Length
• Flow Co-Efficient (Cv): 108
• Manufacturer: Conbraco
• Major Category: Hydronics/Pneumatics
• Sub Category: Valves & Fittings
• Product Type: Hand Valves
• Model Number (MPN): 70-108-01
• Brand: Conbraco
• Category Sub: Ball Valves
• MPN: 70-108-01
• UPC: 696335153117
• Product Group: BISS
• Port Size: 2 NPT
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Valve Body Material: Cast Bronze
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Flow Direction: 2-Way
• Overall Length: 4.68 in
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Maximum Operating Temperature: 450 °F
• Minimum Operating Temperature: -20 °F
• Item: Ball Valve
• Port: Standard
• Size: 2"
• Max. Pressure: 600 psi CWP, 150 psi SWP
• Maximum Temp: 500 F
• Handle Type: Lever
• Stem Packing: MPTFE
• Stem Bearing: RPTFE
• Min Operating Temperature: -20 °F
• Country of Origin (subject to change): United States
