Conbraco 70-107-01 Brz Std Ball Valve 1-1/2 IN

Product Description

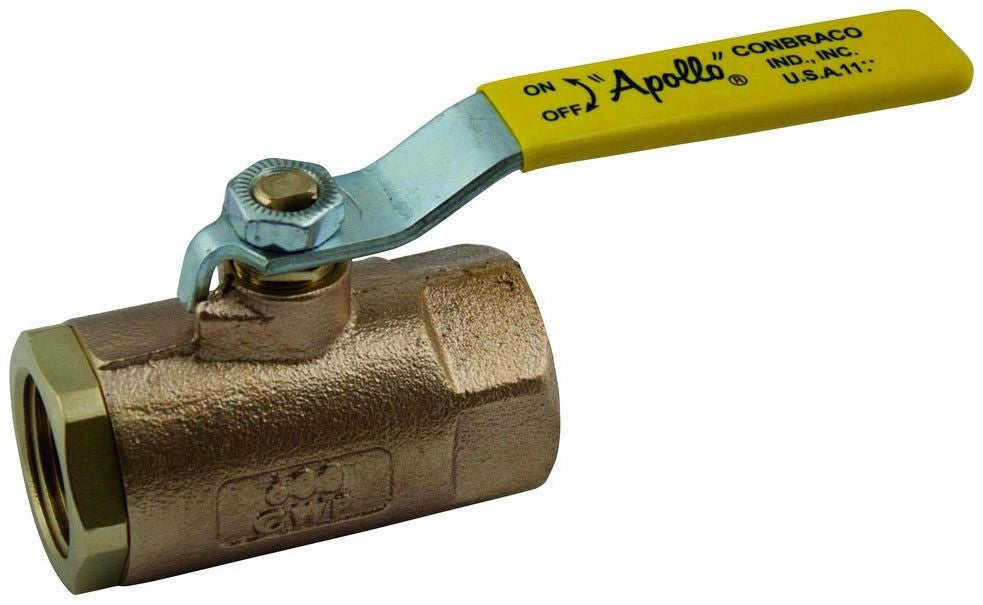

The CONBRACO 70-107-01 is a 2-piece in-line standard ball valve. It features FNPT connection, a bronze body, and a lever handle. Designed with a pressure rating of 600 PSI (CWP) and 150 PSI (SWP), it can withstand temperatures from -20 to 450 DEG F. The valve has a 1-1/4 IN opening and a flow co-efficient (Cv) of 84.

• 2-Piece In-Line Standard Ball Valve
• FNPT Connection
• Bronze Body
• Lever Handle

Product Highlights

This CONBRACO ball valve is suitable for various applications requiring reliable flow control with a durable bronze construction.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-107-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 70-100
• Nominal Size: 1-1/2 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 450 DEG F
• Opening: 1-1/4 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Finish/Color: Chrome Plated Ball, Zinc Plated Handle
• Industry Standards: MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
• Width: 4.37 IN
• Lead Free: No
• Flow Co-Efficient (Cv): 84
• Manufacturer: Conbraco
• Major Category: Hydronics/Pneumatics
• Sub Category: Valves & Fittings
• Product Type: Hand Valves
• Port Size: 1-1/2 NPT
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Flow Direction: 2-Way
• Overall Length: 4.37 in
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Cast Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Maximum Operating Temperature: 450 °F
• Minimum Operating Temperature: -20 °F
• Stem Bearing: RPTFE
• Size: 1-1/2 in
