Conbraco 70-106-04 Brz Thrd Std Port Ball Valve W/2-1/4 Extended Stem

Product Description

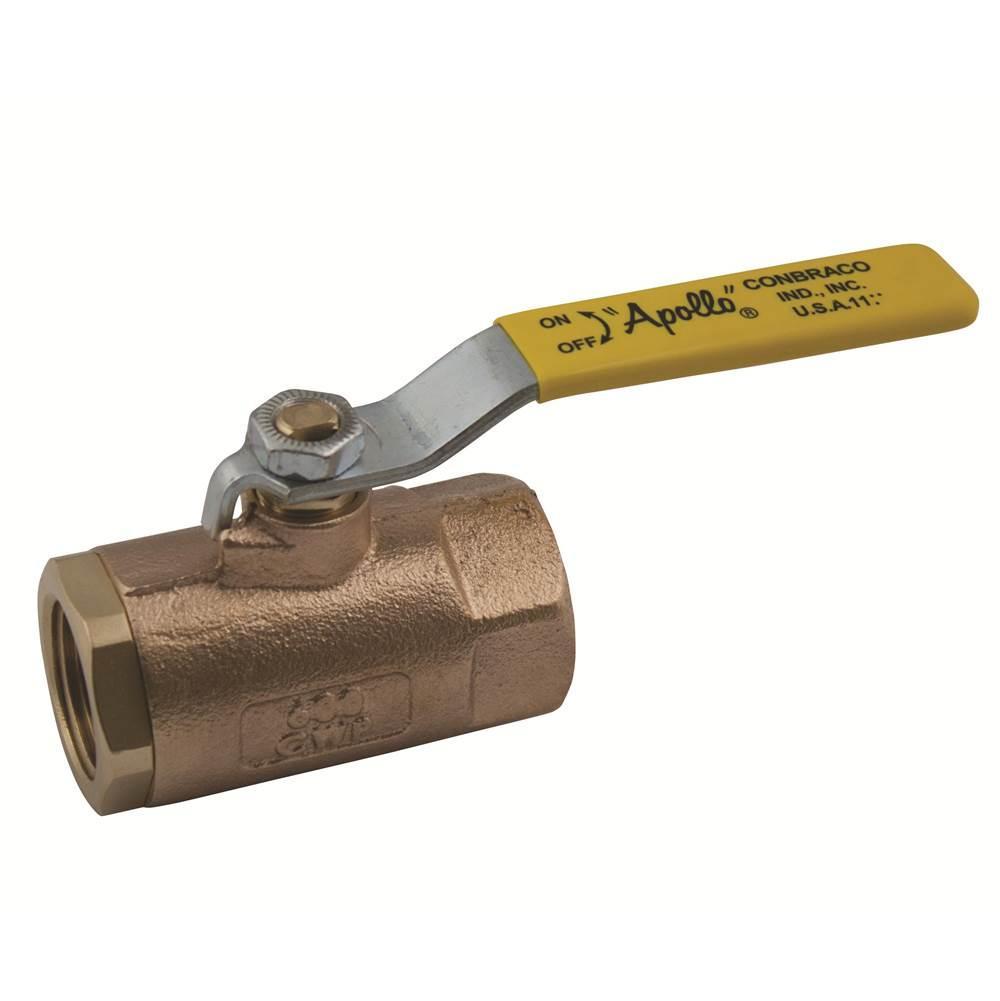

The CONBRACO 70-106-04 is a 2-Piece Standard Port In-Line Ball Valve with a stem extension. It features a bronze body and a steel lever handle with a vinyl grip. This valve is designed for in-line applications requiring reliable flow control. It has a 1-1/4 IN nominal size and FNPT connection type.

• 2-Piece Standard Port In-Line Ball Valve
• Stem Extension
• Lever Handle Operator

Product Highlights

Bronze body ball valve with steel lever handle, suitable for various applications requiring flow control.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-106-04

Technical Specifications

• Series/Model: Series 70-100
• Nominal Size: 1-1/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 450 DEG F
• Opening: 1 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard Body: ASTM B584
• Material Standard Ball And Stem: ASTM B16
• Material Specification Body: UNS C84400
• Finish/Color: Chrome Plated Ball, Zinc Plated Handle
• Industry Standards: MSS-SP-110 Compliant, CSA B51, CRN: OC10908.5C
• Width: 4 IN
• Lead Free: No
• Other Physical Dimension: 2.62 IN Inlet Center To Top Of Handle, 5-1/2 IN Handle Length
• Flow Co-Efficient (Cv): 48
• Brand: Conbraco
