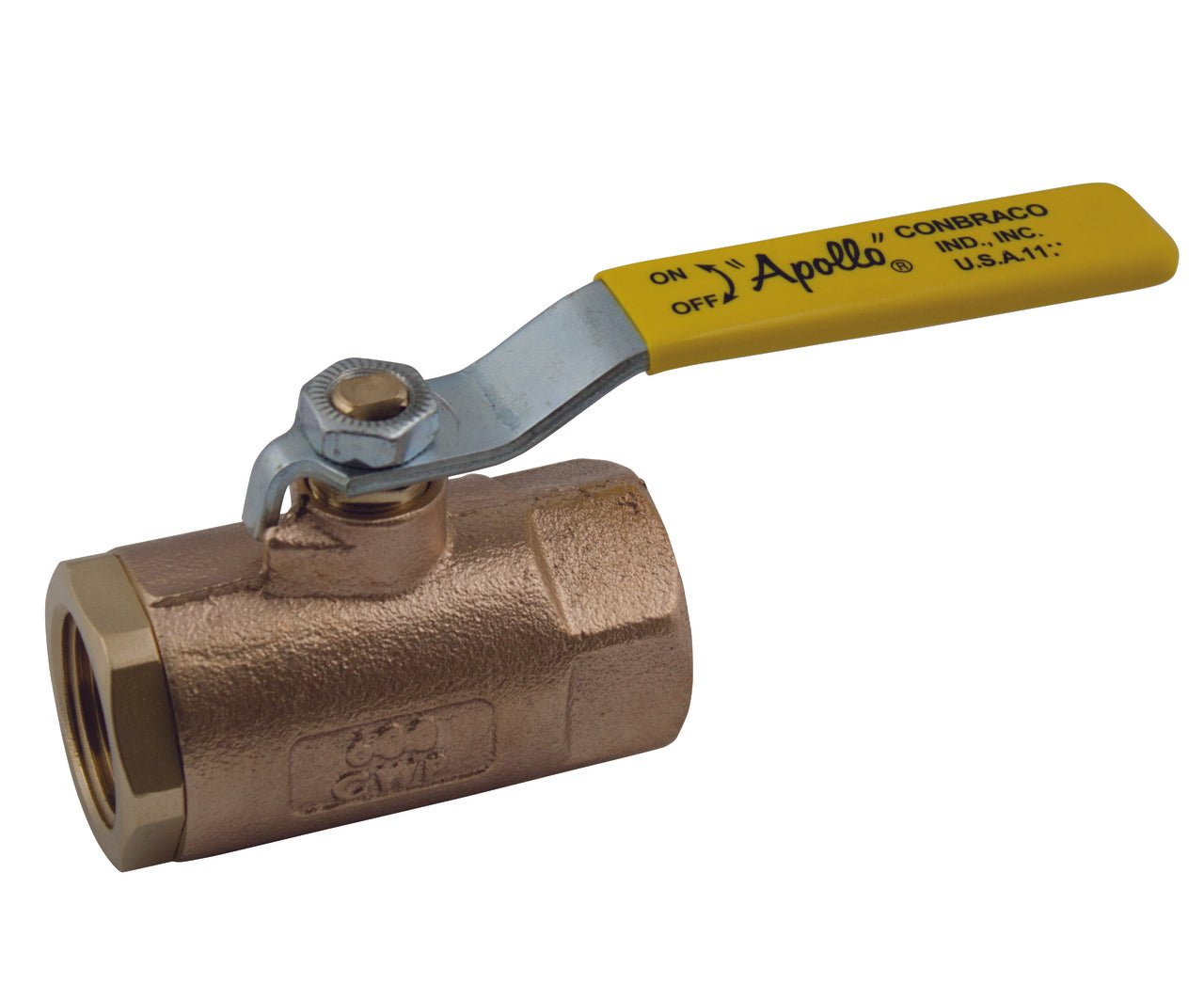

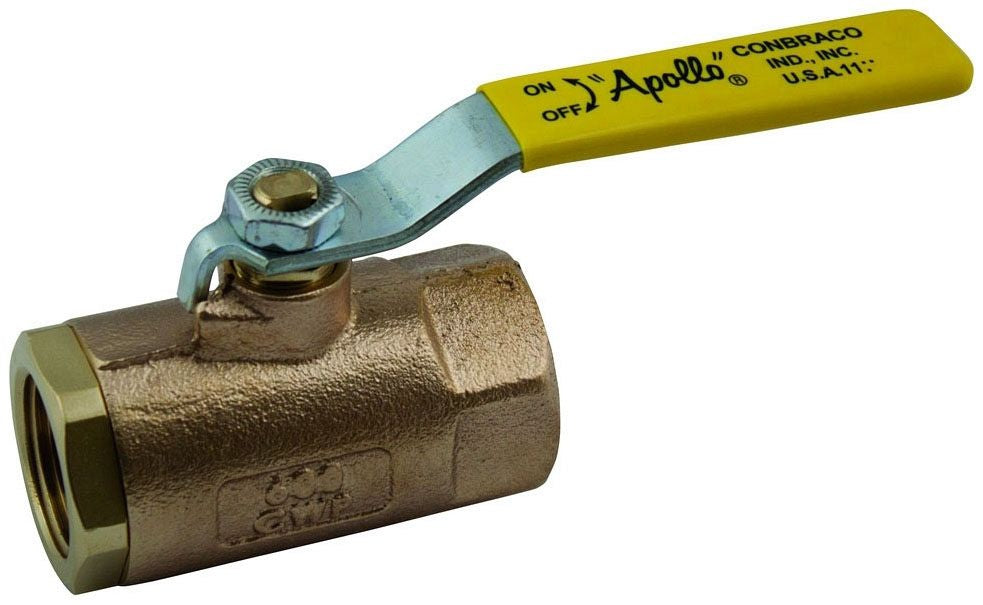

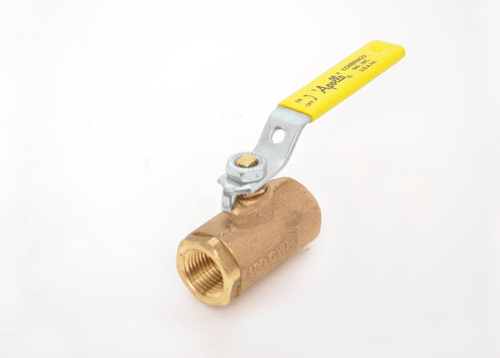

Conbraco 70-106-01 Bronze Ball Valve 1-1/4 in

Product Description

The CONBRACO 70-106-01 is a bronze ball valve with a 1-1/4 inch nominal size and FNPT connection type. This 2-piece in-line standard port ball valve is suitable for applications requiring a maximum pressure of 600 PSI (CWP) or 150 PSI (SWP). It features a steel lever handle with vinyl grip and a brass stem.

• Nominal size of 1-1/4 inch with FNPT connection.
• Bronze body material for durability.
• Lever handle operator type for easy control.

Product Highlights

This bronze ball valve is designed for reliable performance in various applications, offering a robust construction and easy operation.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-106-01
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 70-100
• Nominal Size: 1-1/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: -20 To 450 DEG F
• Opening: 1 IN
• Body Material: Bronze
• Handle Operator Type: Lever
• Handle Material: Steel With Vinyl Grip
• Stem Material: B16 Brass
• Trim Material: Brass Ball
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball And Stem): ASTM B16
• Material Specification (Body): UNS C84400
• Width: 4 IN
• Lead Free: No
• Inlet Center To Top Of Handle: 2.62 IN
• Handle Length: 5-1/2 IN
• Flow Co-Efficient (Cv): 48
• Manufacturer: Aalberts Integrated Piping Systems
• Major Category: Hydronics/Pneumatics
• Sub Category: Valves & Fittings
• Product Type: Hand Valves
• Port Size: 1-1/4 NPT
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: Chrome Plated Brass
• Mounting Type: Inline Threaded
• Porting Style: Standard Port
• Flow Direction: 2-Way
• Overall Length: 4.00 in
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Body Seal Material: PTFE
• Stem Seal Material: MPTFE
• Valve Body Material: Cast Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Maximum Operating Temperature: 450 °F
• Minimum Operating Temperature: -20 °F
• Size: 1-1/4 in
• End Style: Threaded
• Type: Ball Valve
• Series: 70-100
• Category: Ball Valves
• Maximum Temp: 500 F
• Stem Packing: MPTFE
• Stem Bearing: RPTFE
• CWP: 600
• Pieces: 2
• Country of Origin (subject to change): United States
