Conbraco 70-103-HC Ball Valve 1/2 NPT X 3/4 Hose

Product Description

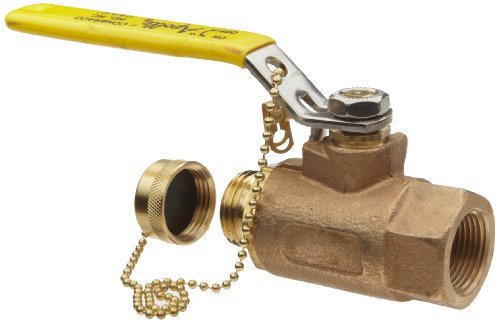

The CONBRACO 70-103-HC is a 2-piece standard port in-line ball valve with cap, ideally suited for direct connection to hoses. It features female NPT connections and a stainless steel handle with vinyl grip. The valve is constructed with a bronze body and a chrome-plated ball. Designed for trusted performance across a wide range of applications.

• Features a heavy-duty machined hose thread cover with stainless steel chain.
• Adjustable stem packing gland and a blow-out proof stem.
• Temperature rating of -20 to 450 DEG F and a pressure rating of 600 PSI (CWP).

Product Highlights

This ball valve offers reliable performance with premium materials, heavy-duty construction, and is 100% factory tested.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 70-103-HC
• Country of Origin: US

Technical Specifications

• Series: 70-100-HC
• Nominal Size: 1/2 X 3/4 IN
• Connection Type: FNPT X Hose Thread
• Pressure Rating: 600 PSI (CWP)
• Temperature Rating: -20 To 450 DEG F
• Opening: 1/2 IN
• Body Material: Bronze
• Handle Operator Type: Reverse Lever Handle
• Handle Material: Stainless Steel With Vinyl Grip
• Stem Material: Brass
• Trim Material: RPTFE/Brass
• Packing Material: MPTFE Stem
• Seat Material: RPTFE
• Material Standard (Body): ASTM B584
• Material Standard (Ball): ASTM B16 Or ASTM B283
• Material Standard (Stem): ASTM B16
• Body Material Specification: UNS C84400
• Ball Material Specification: UNS C37700
• Industry Standards: MSS-SP-110 Compliant
• Width: 2.97 IN
• Lead Free: No
• Other Physical Dimension: 1-3/4 IN Inlet Center To Top Of Handle, 3.87 IN Handle Length
• End Style: FNPT
• Port Type: Standard
• Softgoods Material: MPTFE
• Actuator Type: Lever Handle
• Ball Material: Chrome Plated Brass
• Inlet to Outlet Length: 2.17 in
• Manufacturer Name: Apollo Conbraco
• Media: Water
• Top to Inlet Center: 1-3/4 in
• Type: 2-Piece
• Warranty: 5 Years
• Domestic/Import: Domestic
• Materials: bronze (C89836 (lead-free))
• Finishing: none
• Shape: straight
• Connection type: FPT - female thread conical (NPT), hose connector
• Bore (Full bore): 12.7 mm (No)
• Product group: valves (ball valves)
• Housing material: Bronze
• Surface protection housing: None
• Material ball: Brass
• Material spindle: Brass
• Nominal diameter connection 1: DN 15
• Outer pipe diameter connection 1: 21.34mm
• Outer pipe diameter connection 1 (imperial): 0.84"
• Connection 1: Internal thread conical (NPT)
• Nominal diameter connection 2: DN 20
• Connection 2: Hose pillar
• With filter: No
• With thermometer: No
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• Medically clean: No
• Grease-free: No
• Housing construction: 2-part
• Full bore: No
• VdS quality mark: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• Max operating pressure liquid: 600 psi
• Manufacturer Part Number: 70103HC
• UPC / GTIN: 670750521553
• Manufacturer: Conbraco
• Valve Type: Ball Valve
• Opening Size: 1/2 IN
• Material Standard: Body: ASTM B584, Ball: ASTM B16 Or ASTM B283, Stem: ASTM B16
• Material Specification: Body: UNS C84400, Ball: UNS C37700
