Conbraco 61-103-01 Apollo Brz Cone Check 1/2 in

Product Description

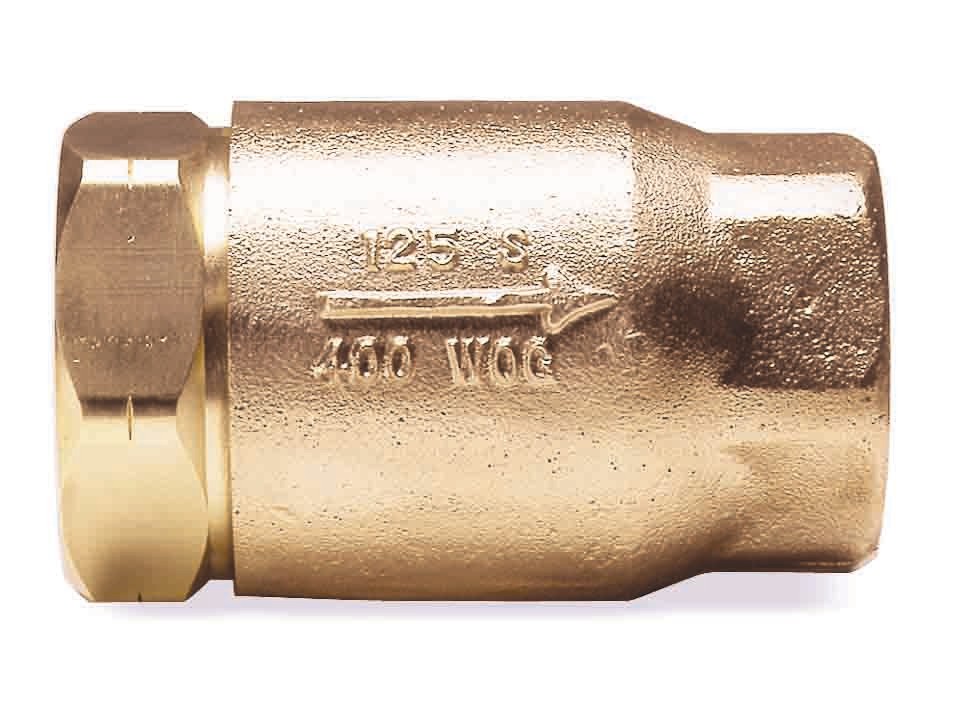

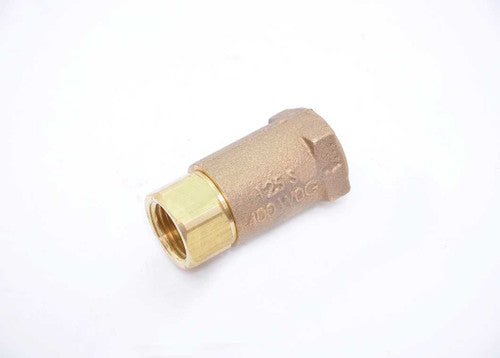

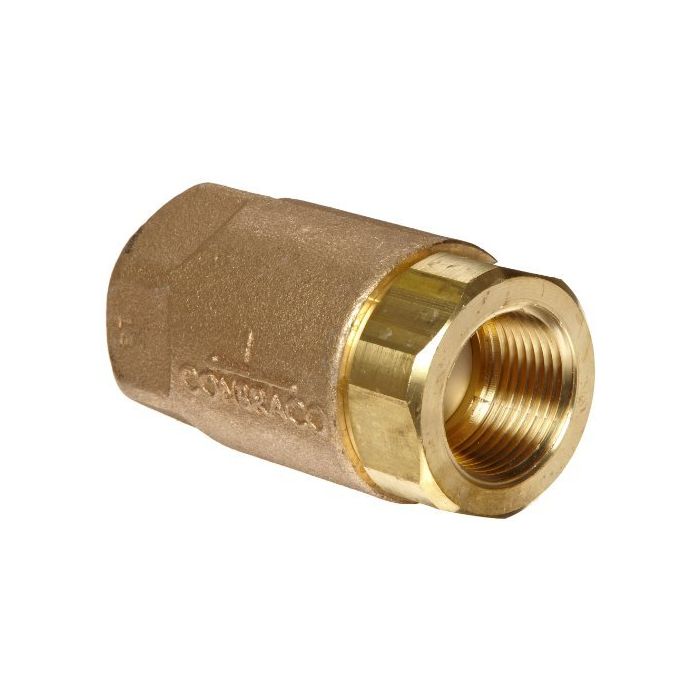

The CONBRACO 61-103-01 is an in-line ball cone check valve from the Series 61-100/Model CVB12, with a 1/2 IN nominal size and FNPT connection type. It features a cast bronze body and a brass stem with RPTFE ball cone trim. Suitable for pressure ratings up to 400 PSI at 100 DEG F and 125 PSI steam at 350 DEG F.

• In-Line Ball Cone Check Valve
• FNPT Connection
• Cast Bronze Body

Product Highlights

This valve offers a straight-through flow design and tight liquid shut-off, and it is suitable for both horizontal and vertical upward flow installation.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 61-103-01
• Country of Origin: USA

Technical Specifications

• Series/Model: Series 61-100/Model CVB12
• Nominal Size: 1/2 IN
• Connection Type: FNPT
• Pressure Rating: 400 PSI At 100 DEG F, 125 PSI Steam At 350 DEG F
• Body Material: Cast Bronze
• Stem Material: Brass
• Trim Material: RPTFE Ball Cone
• Body Material Specification: UNS C84400
• Industry Standards: ISO Certified, ARRA Compliant, Canadian Reg. No: 0C11218.5C
• Width: 2.31 IN
• Height: 1.12 IN
• Lead Free: No
• Flow Co-Efficient (Cv): 1.4
• Port Size: 1/2 NPT
• End Connections: FNPT x FNPT
• Cracking Pressure: 1/2 psi
• Ball Check: RPTFE, 15% Glass Filled
• Size: 1/2 in
• End Style: Threaded
• Series: 61-100
• Manufacturer: Aalberts Integrated Piping Systems
• Category: Ball Cone Check Valves
• Alternate Part Number: C1EN60
• Brand: Conbraco Ind
• Pack Size: 1.00
• UOM: EA
• Supplier Part Number: 6110301
• MPN: 6110301
• Manufacturer Part Number: 6110301
• UPC / GTIN: 670750631979
