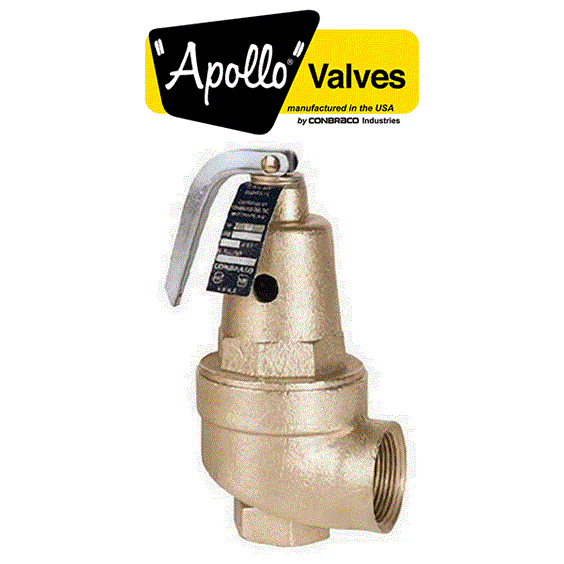

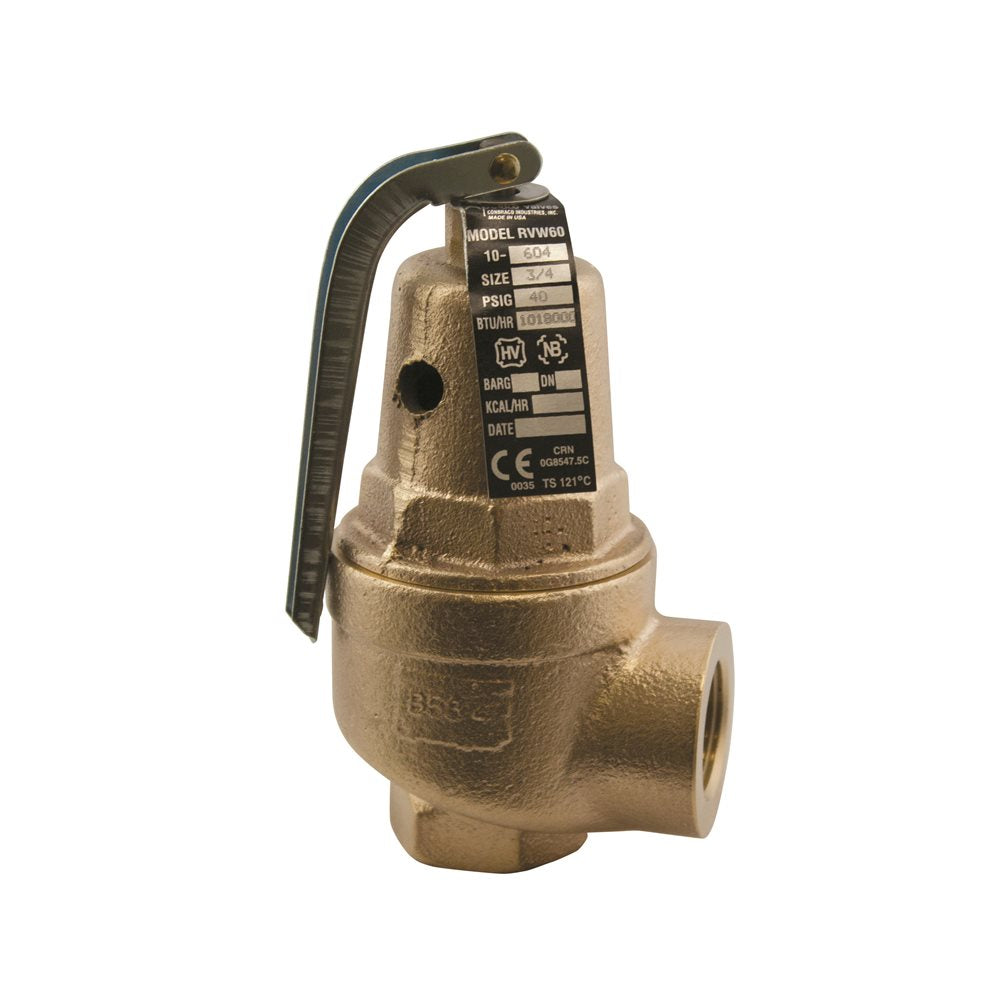

Conbraco 1060815 Hot Water Relief Valve

Product Description

The Conbraco 1060815 Hot Water Relief Valve is designed for efficient safety in hot water heating systems. It is ASME Section IV capacity certified and suitable for hot water heating boilers and similar equipment. This valve can be pre-set to operate at any pressure from fifteen to one hundred sixty pounds per square inch, providing flexibility based on system requirements.

• Certified for hot water heating applications
• Pressure settings adjustable between fifteen to one hundred sixty psig
• Maximum temperature rating of two hundred fifty degrees Fahrenheit

Product Highlights

This relief valve ensures the safe operation of hot water systems by releasing excess pressure, protecting equipment and enhancing system reliability.

Product Information

Standard Information

• Brand: Conbraco
• Part Number: 10-608-15

Technical Specifications

• Service: Sec IV Hot Water
• Capacity: 10,583,000 BTU
• Inlet Type: Female
• Item Weight: 23.75 lbs per EA
• Outlet Type: Female
• Setting (PSI): 75
• Inlet Size (NPT): 2 inches
• Outlet Size (NPT): 2 inches
