Component Manufacturing Corporation 10015: Inrush Current Limiting Thermistor and Volume Control

Product Description

The Component Manufacturing Corporation 10015 features two essential products: an inrush current limiting thermistor and a mono volume control. The thermistor limits inrush current and has a resistance of ten ohms at twenty-five degrees Celsius, supporting a maximum steady state current of fifteen amperes. It is ideal for high-energy applications. The volume control operates as an autoformer attenuator, suitable for a twenty-five or seventy volt speaker line, rated at one hundred watts and allowing for precise attenuation in one point five decibel steps.

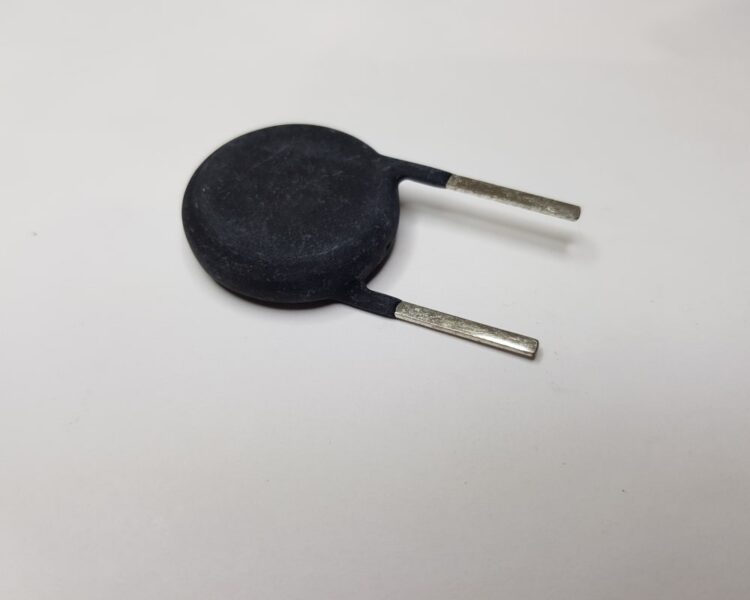

• Inrush current limiting thermistor with a maximum steady state current of 15A.

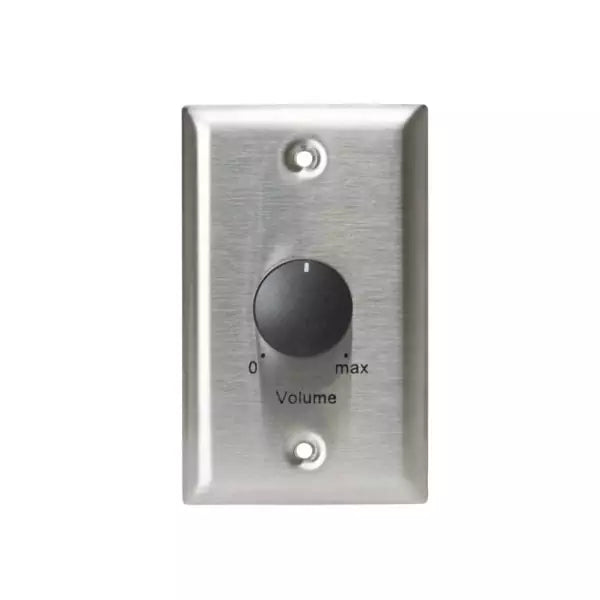

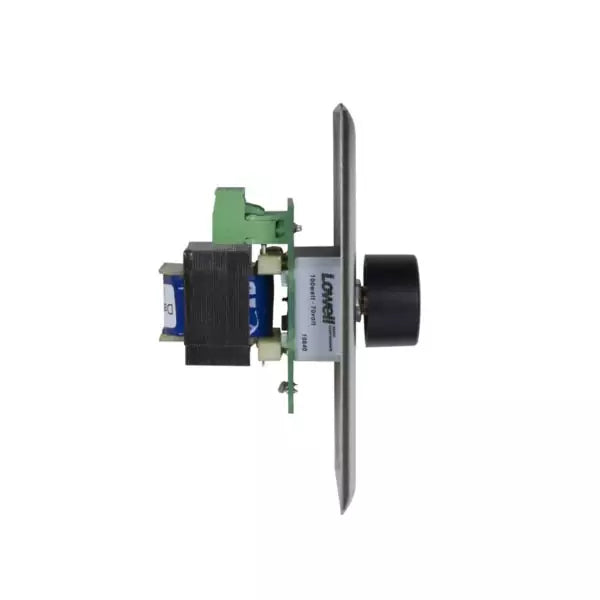

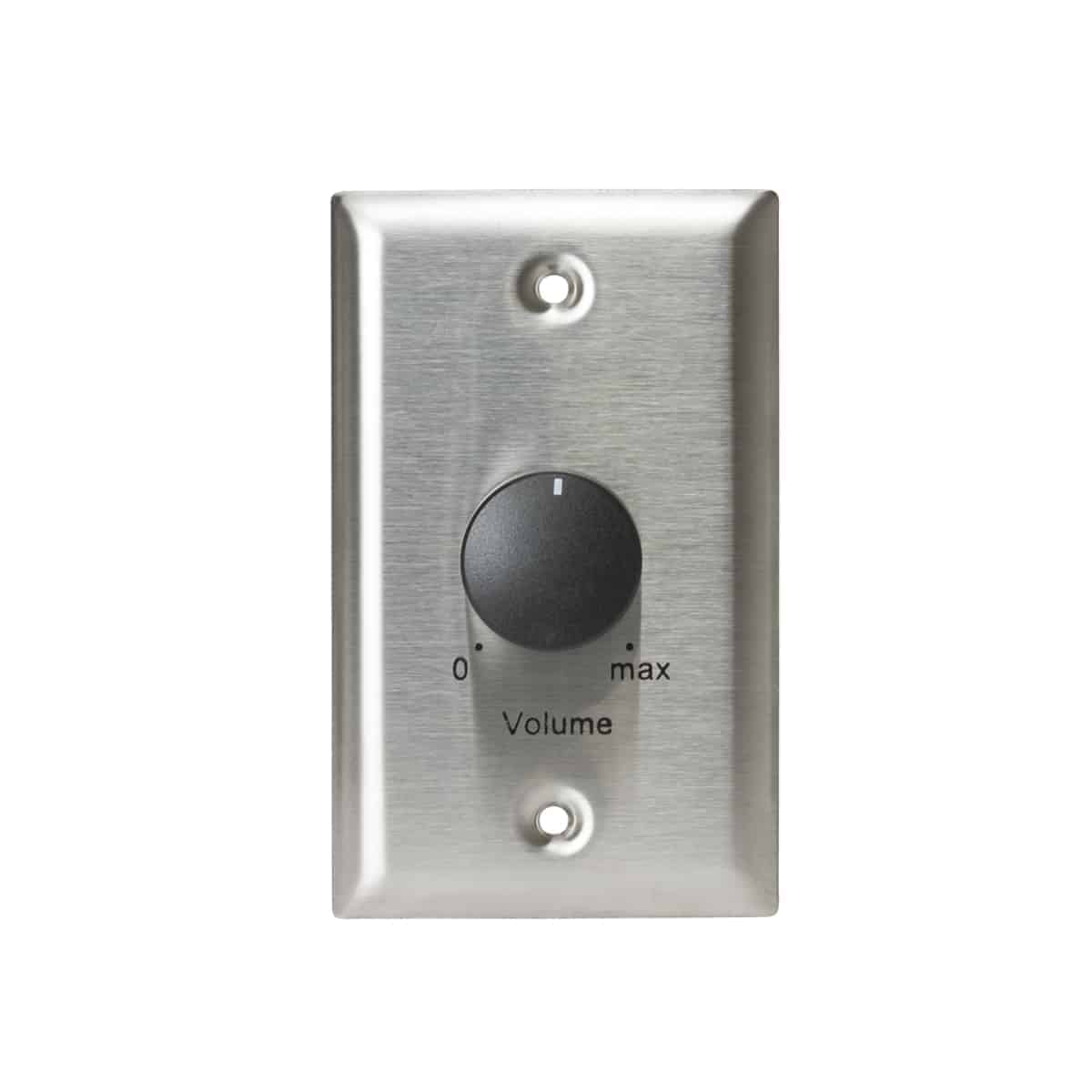

• Mono autoformer attenuator volume control for 25V/70V speaker lines.
• Volume control features precise 1.5dB per step attenuation.

Product Highlights

This product serves as a reliable solution for managing electrical inrush and sound levels in various audio systems.

Product Information

Standard Information

• Brand: Component Manufacturing Corporation
• MPN: 10015

Technical Specifications

• Power Rating: 100W
• Attenuation: 1.5dB per step
• Speaker Line Compatibility: 25V/70V speaker line
• Activation: Rotary dial
• Volume Positions: 0-10

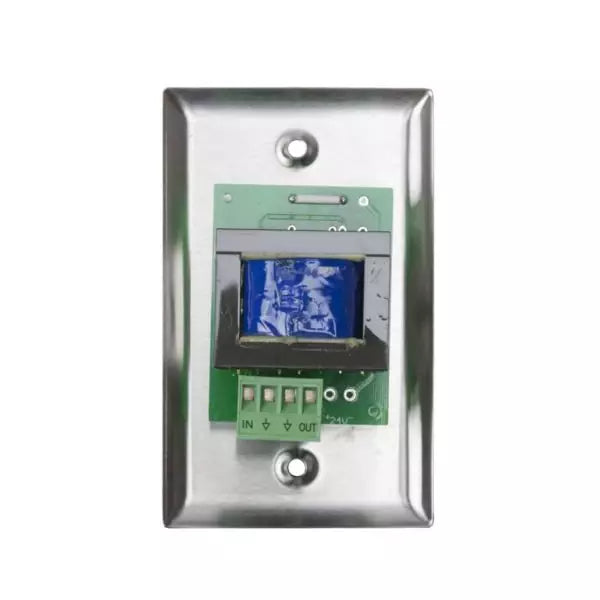

• Termination: Phoenix-style
• Wire Capacity: 14-gauge
• Wall Plate: 1-gang standard
• Finish: Stainless Steel
• Mounting: standard E.O. box (2.125 in. min. depth)
• Resistance at +25°C: 10Ω
• Maximum Steady State Current: 15A
• Maximum Recommended Energy: 250J
• Voltage Rating: 120VAC, 240VAC, 480VAC, 680VAC
• Actual Energy Failure: 500J
• Body Temperature at Maximum Current: +185°C
• Tolerance: ±25%
• Material Type: I (for beta and curve)
• Dissipation Constant: 85.2mW/°C
• Thermal Time Constant: 64mW/s
• Package Type: Through-hole
• Series / Model: AS, AS32
