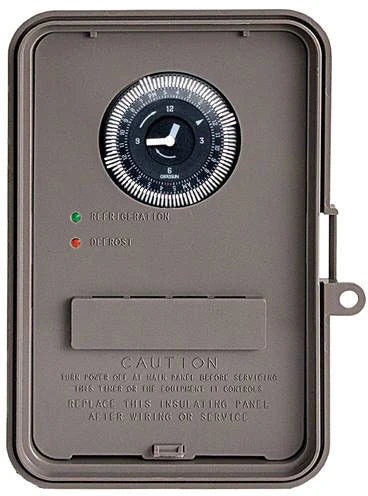

Intermatic DTAV40 AUTO VOLTAGE DEFROST TIMER 120 TO 240 VAC 60 HZ 40 A 2 HP 1-SPDT 1-SPST NEMA 3R

Product Description

The Intermatic DTAV40 is a versatile auto voltage defrost timer designed to provide reliable control in refrigeration environments. It operates within a voltage range of one hundred twenty to two hundred forty VAC and supports up to forty amps with a two horsepower capacity. This timer features a single SPDT, SPST switch, and is housed in a NEMA 3R rated rain-tight plastic enclosure, ensuring robust performance in various conditions.

• Adaptive voltage adjustment between 120 and 240 VAC.
• Moisture-resistant design suitable for various environments.
• Programmable defrost cycles with independent settings.

Product Highlights

This defrost timer is applicable for electric heat, hot gas, or compressor shutdown defrost cycles. It supports up to forty operations and features LED indicators for real-time monitoring.

Product Information

Standard Information

• Manufacturer: Intermatic
• Product ID: DTAV40

Technical Specifications

• Voltage Rating: 120 to 240 VAC
• Current Rating: 40 Amps
• Power Rating: 1 HP at 120 VAC, 2 HP at 240 VAC
• Switch Type: 1-SPDT, 1-SPST
• Enclosure: NEMA 3R
• Operating Temperature: -40 to 104 Deg F
• Humidity Rating: 0 to 95 Percent RH
• Dimensions: 6.61 inches width x 3 inches depth x 8.88 inches height
