Command Access Technologies CL93DEU-15D-626-24V Electrified Cylindrical Lock 2-3/4 inches Backset

Product Description

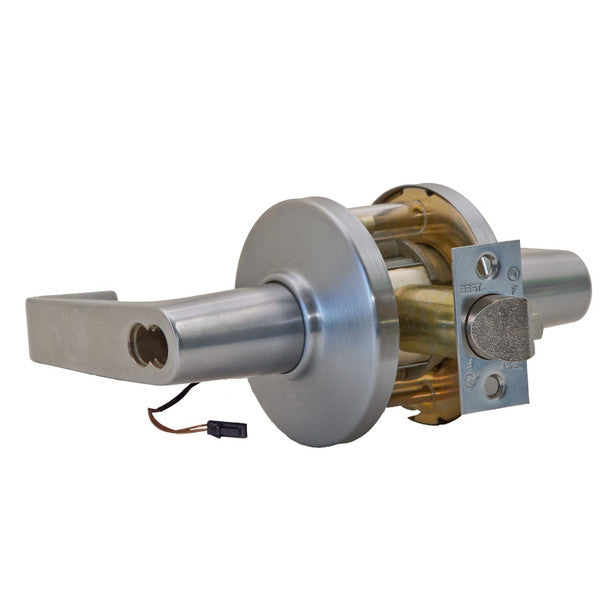

The Command Access Technologies CL93DEU-15D-626-24V is an electrified version of the Best 93K series cylindrical lock, designed for remote keyless access and egress control in heavy-use applications. It features a 2-3/4" backset, is fail-secure, and operates on 24V. This Grade 1 electric cylindrical lock is SFIC prep and less core.

• Continuous duty solenoids allow for continuously on applications such as Fail Safe or an unlock cycle.
• Electronically Unlocked
• SFIC Prep Less Core

Product Highlights

This electric cylindrical lock is ideal for stairwell doors, lobby entrances, computer rooms, classrooms, and interior/exterior doors.

Product Information

Standard Information

• Brand: COMMAND ACCESS TECHNOLOGIES
• Manufacturer Part Number: CL93DEU-15D-626-24V
• Country of Origin: United States

Technical Specifications

• Brand Name: Command Access Technologies
• Manufacturer Part Number: CL93DEU 15D 626 24V
• Product Type: Cylindrical Lock
• Input Voltage: 24V AC, 24V DC
• Grade: Grade 1
• Series: CL93 Series Electrified Cylindrical Locks
• Manufacturer: Command Access Technologies
• AMP Draw: 150 mA @ 24V
• Bolt Projection: 9/16"
• Door Thickness: 1-3/4" to 2-1/4"
• Function: 93EU-Fail Secure
• Lock Face Size: 2-1/4" x 1-1/8"
• Operating Voltage: 24VAC/DC
• Power: Hard Wired
• Std. Strike Type: ANSI Curved Lip Strike
• UL Listing: UL Listed Grade 1
• Switch Type: RX
• Origin: USA
• Voltage: 24V
• Finish: 626 - Satin Chrome
• Trim: 15D
• Electronic: Yes
• Lock Type: Cylindrical
• Duty Level: Heavy Duty
• Fail Safe / Fail Secure: Fail-Secure
• Request to Exit: Not Included
• Type: 15 - 15 Lever
• For Use With: CL93 Series Electrified Cylindrical Locks
• Includes: Electric Cylindrical Lock
