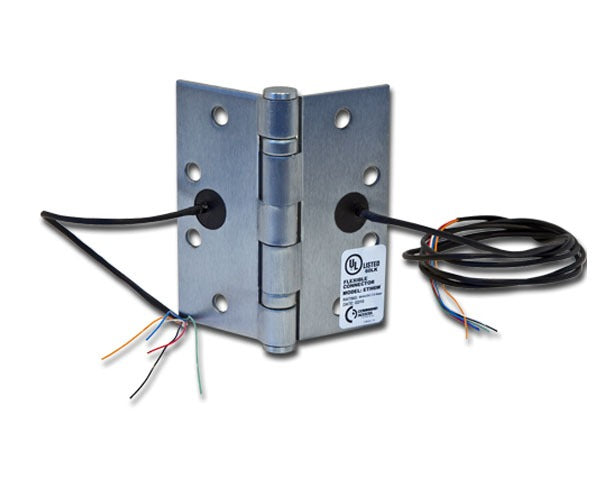

Command Access ETH8W4545626BB79 Electric Hinge 8 Wire

Product Description

The COMMAND ACCESS ETH8W4545626BB79 is an 8-wire electric hinge designed for electrified door hardware applications in commercial and institutional buildings. Measuring 4.5 inches x 4.5 inches, this hinge features a steel base construction and a US26D satin chrome finish, making it suitable for use in standard door frame installations where power transfer through the hinge point is required. It routes low-voltage wiring from the frame side to the door side, enabling operation of electric locks, request-to-exit devices, or other door-mounted electrified hardware without exposed conduit or surface wiring.

This electric hinge is intended for use in commercial door installations where concealed power transfer is required. It is well-suited for access control retrofits and new installations on hollow metal or wood doors with standard 4.5 inches x 4.5 inches hinge cutouts. Licensed locksmiths, door hardware specialists, and access control technicians are the typical installers. The 8-wire configuration supports a range of electrified hardware loads and signaling circuits simultaneously.

Key Features

• 8-wire configuration supports multiple circuits for electrified door hardware
• 4.5 inches x 4.5 inches size fits standard commercial door hinge prep
• Steel base construction for durability in high-cycle commercial applications
• US26D satin chrome finish for compatibility with common commercial hardware finishes
• Concealed wiring path eliminates exposed conduit at the door edge

Compatibility

Designed as an OEM-style replacement or upgrade electric hinge for commercial doors requiring a 4.5 inches x 4.5 inches hinge footprint with an 8-wire power transfer configuration and a BB1279-style base.

Installation Notes

Installation should be performed by a licensed locksmith or qualified access control technician. Disconnect and lock out all power to the electrified hardware circuit before beginning hinge replacement or installation. Verify that the door and frame hinge mortise dimensions match the 4.5 inches x 4.5 inches hinge leaf before installation. Follow local building codes and the door hardware manufacturer guidelines for wire routing and termination at both the frame and door leaves.
