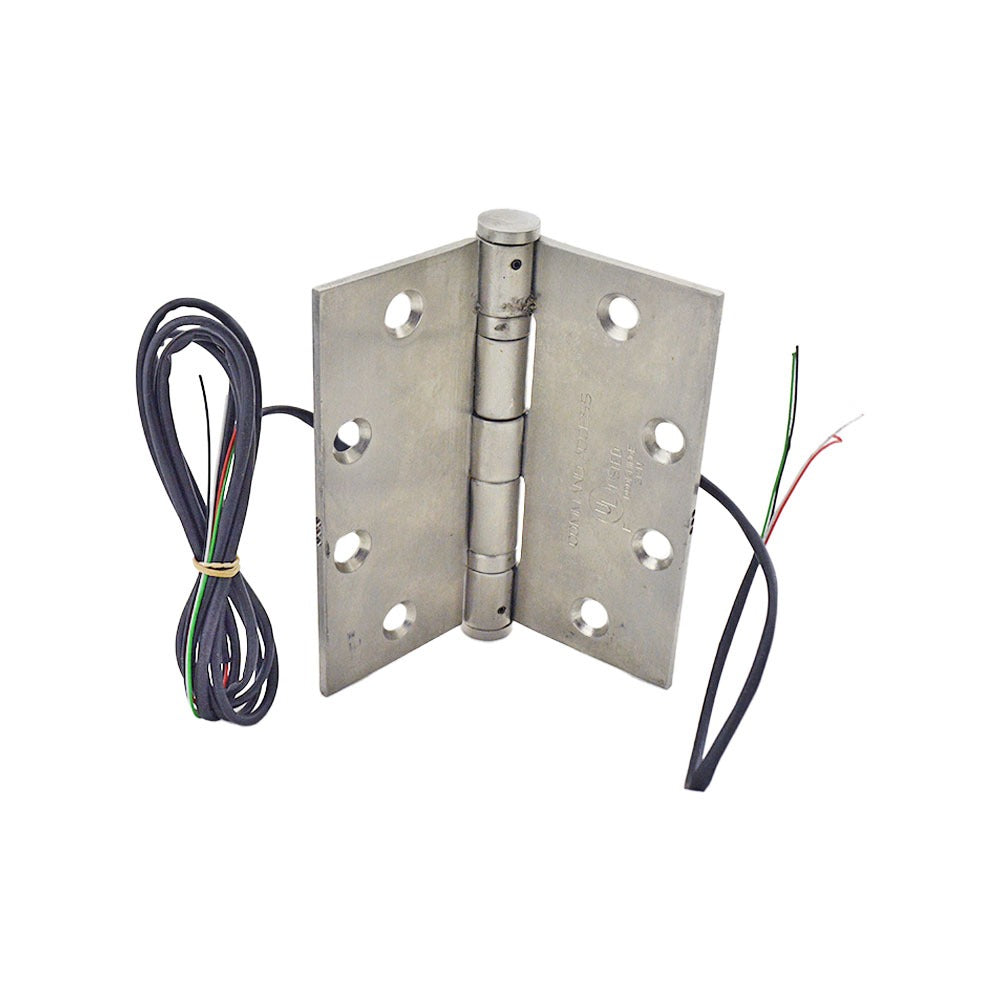

Command Access ETH4W4545630BB91 Electric Hinge 4.5x4.5 in

Product Description

The COMMAND ACCESS ETH4W4545630BB91 is a 4-wire electric hinge designed for access control door applications. Measuring 4.5 inches x 4.5 inches, this hinge integrates concealed wiring into the hinge barrel, allowing low-voltage control signals or power to pass through the door without exposed cables or power transfer loops. The satin stainless steel finish provides corrosion resistance suited to commercial door frames and high-traffic openings. It is installed by licensed electricians or access control technicians as part of a complete electrified door hardware system.

This electric hinge is used in commercial and institutional door assemblies where power or signal transfer to electrified locksets, electric strikes, or door hardware is required. It is a direct mortise hinge replacement that eliminates the need for separate power transfer devices at the door frame. Typical installations include office entry doors, corridor doors, and secure room access points where concealed wiring is specified.

Key Features

• 4-wire configuration supports low-voltage control signal or power transfer through the hinge barrel
• 4.5 inches x 4.5 inches hinge leaf size fits standard commercial door preparations
• Satin stainless steel finish for durability and corrosion resistance in high-use environments
• Concealed wiring eliminates exposed cables or external power transfer devices at the door edge
• Compatible with BB1191-style hinge base for simplified retrofit into existing door prep

Compatibility

Designed as an OEM-style replacement electric hinge for commercial door assemblies requiring a 4.5 inches x 4.5 inches 4-wire electrified hinge with a BB1191 hinge base configuration.

Installation Notes

Installation should be performed by a licensed electrician or certified access control technician. Disconnect and lock out all power to the access control system before removing existing door hardware or making any wiring connections. Follow NEC guidelines for low-voltage wiring routed through door hinges. Verify wire routing within the hinge barrel is free of pinch points before cycling the door.
