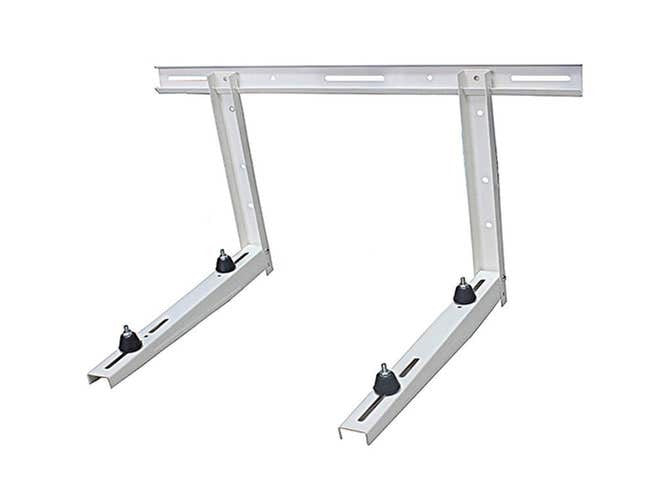

Comfortstar smart-b Condenser Wall Bracket

Product Description

The COMFORTSTAR smart-b is a universal outdoor condenser wall bracket designed to mount split-system outdoor condenser units to exterior walls. Fabricated for standard residential and light commercial installations, this bracket keeps the condenser unit elevated and secure, protecting it from ground-level moisture, debris, and flooding. The bracket measures 23.6 inches wide by 17.7 inches deep by 33.5 inches tall and weighs 6 pounds, making it manageable for a one- or two-person installation. HVAC technicians and installers use this bracket as a code-compliant alternative to ground-pad mounting where wall mounting is required or preferred.

This bracket is suited for residential and light commercial split-system installations where exterior wall mounting of the outdoor condenser is necessary due to space constraints, landscaping, or local code requirements. It is particularly useful on multi-unit buildings, narrow side yards, and rooftop-adjacent wall surfaces where a concrete pad is not practical. The universal design accommodates a range of condenser unit sizes and configurations.

Key Features

• Universal fit supports a wide range of outdoor condenser unit sizes and brands
• Wall-mount design elevates the condenser above ground level to reduce moisture and debris exposure
• Compact packaged dimensions of 36 inches length by 4 inches width by 3 inches height for easy transport and storage
• Lightweight at 6 pounds for straightforward handling during installation
• Suitable for residential and light commercial split-system applications

Compatibility

Designed as a universal OEM-style wall bracket for outdoor condenser units commonly used in residential and light commercial split-system HVAC installations.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified contractor familiar with local building and mechanical codes. Power to the condenser unit must be disconnected at the disconnect box and the main panel before any mounting work begins. Fasteners must be anchored into structural wall framing or masonry rated for the load of the condenser unit — drywall or sheathing alone is not sufficient. Verify local code requirements for bracket height, clearance, and fastener specifications before installation.
