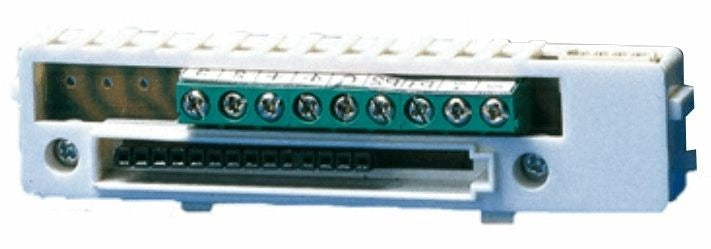

Comelit 22600053 Branch Terminal Color Intercom Kit

Product Description

The COMELIT 22600053 is a branch terminal connector strip designed for use with Simplebus color video intercom systems. It provides a wiring junction point that allows multiple intercom components to be connected along a Simplebus two-wire network, maintaining signal integrity across the installation. This part is typically installed by low-voltage electricians or security system technicians during new construction or retrofit intercom projects. It supports clean, organized wiring layouts in residential and light commercial intercom setups.

The 22600053 is used in Simplebus color intercom installations where branch connections are needed to distribute audio and video signals to multiple stations. It is specifically noted as a connector strip for the Simplebus Audio Module 1602, making it a working component within COMELIT Simplebus wiring infrastructure. Typical applications include multi-unit residential buildings, single-family homes with multiple door stations, and commercial entry systems using the Simplebus topology.

Key Features

• Designed as a branch terminal connector strip for Simplebus color intercom networks
• Compatible with COMELIT Simplebus Audio Module 1602
• Supports multi-point wiring distribution along two-wire Simplebus installations
• Enables organized, low-voltage branch connections within intercom system layouts

Compatibility

Designed for use with the COMELIT Simplebus Audio Module 1602 and Simplebus color intercom system installations.

Installation Notes

Installation should be performed by a licensed low-voltage electrician or qualified security systems technician familiar with COMELIT Simplebus wiring practices. De-energize the intercom system and disconnect power at the source before making or modifying any wiring connections. Follow local low-voltage wiring codes and the manufacturer wiring diagram for proper branch terminal placement within the bus topology. Avoid routing intercom wiring in the same conduit as line-voltage conductors.

Technical Specifications

• Compatible System: COMELIT Simplebus Color Intercom
• Component Type: Branch Terminal Connector Strip

Standard Information

• Brand: COMELIT
• Manufacturer Part Number: 22600053
