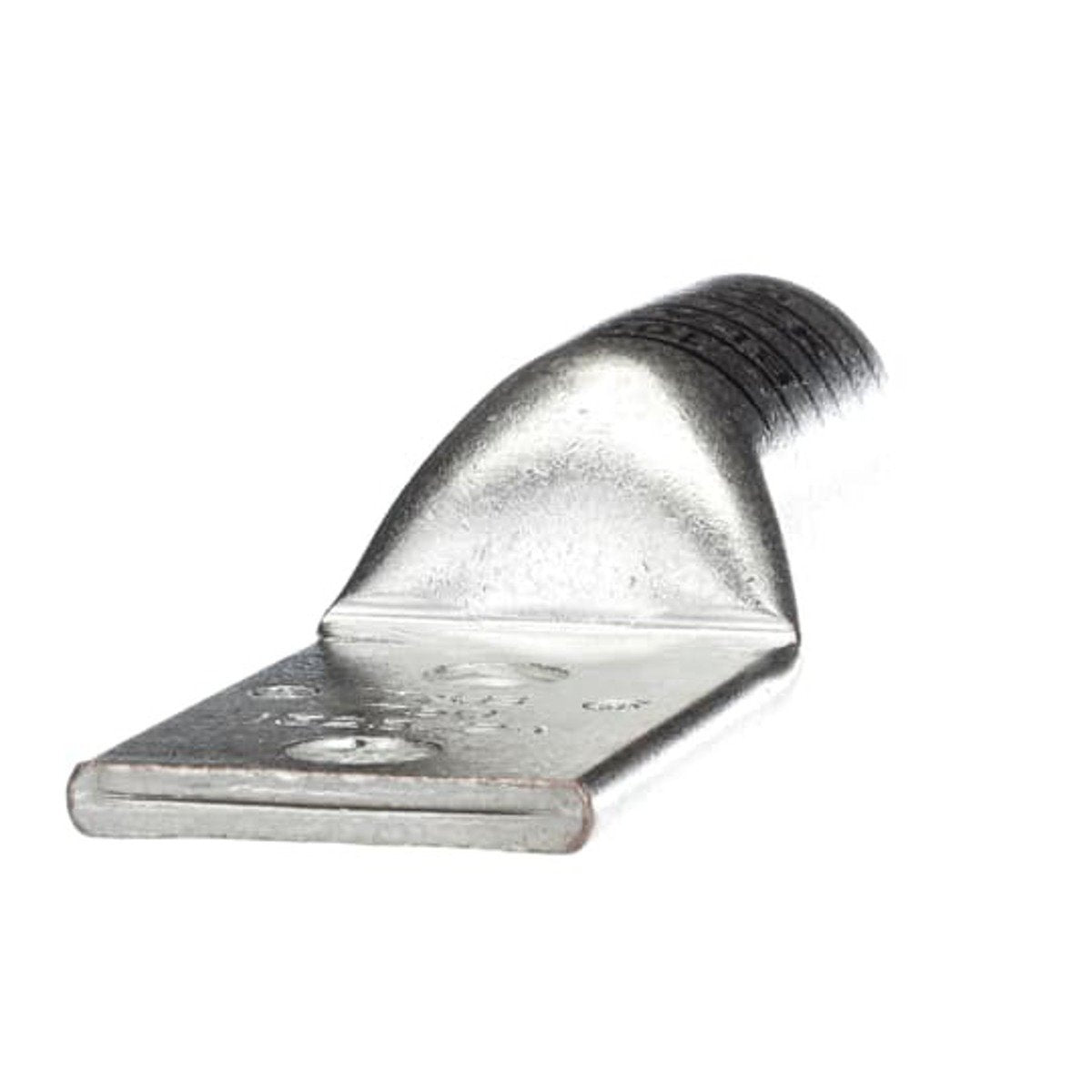

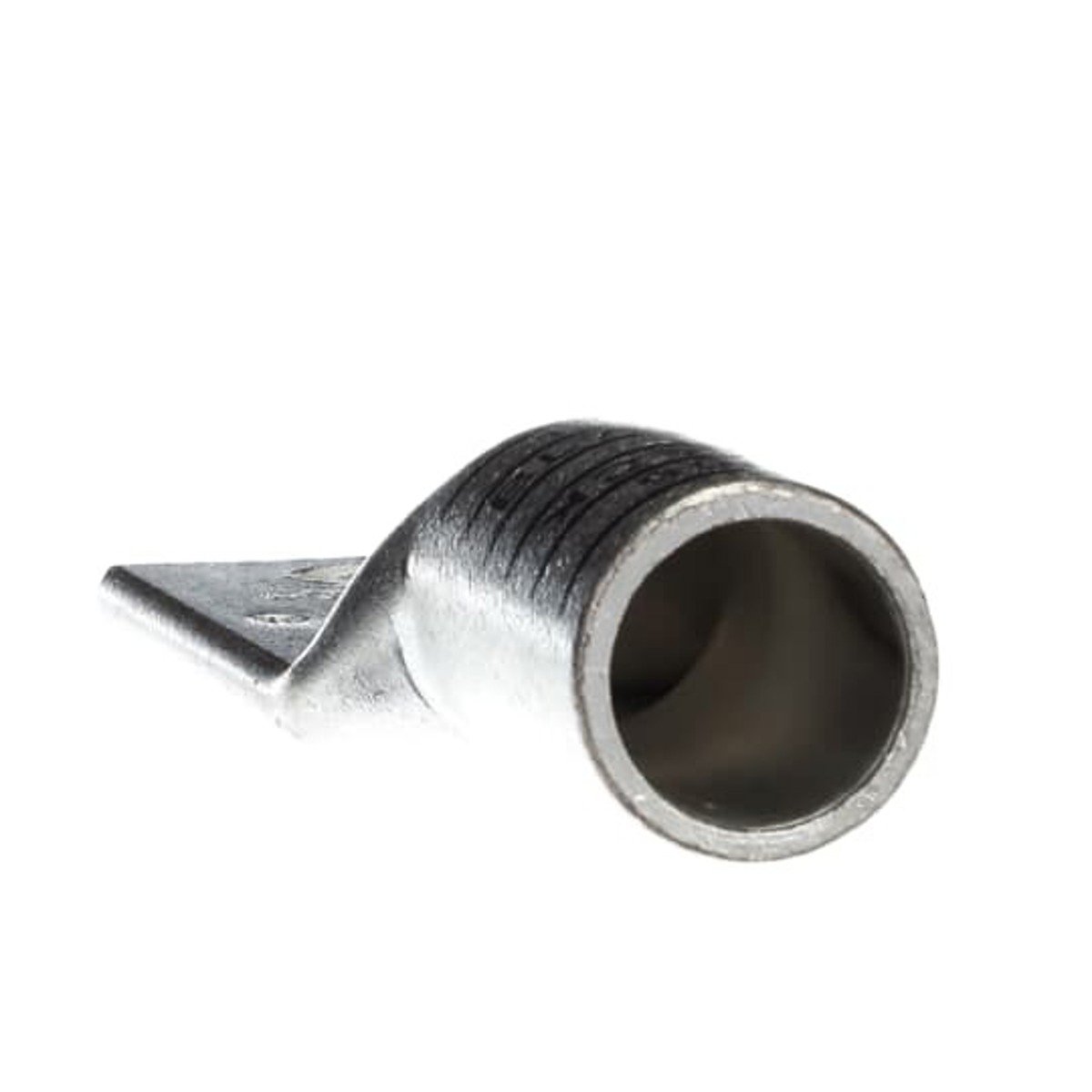

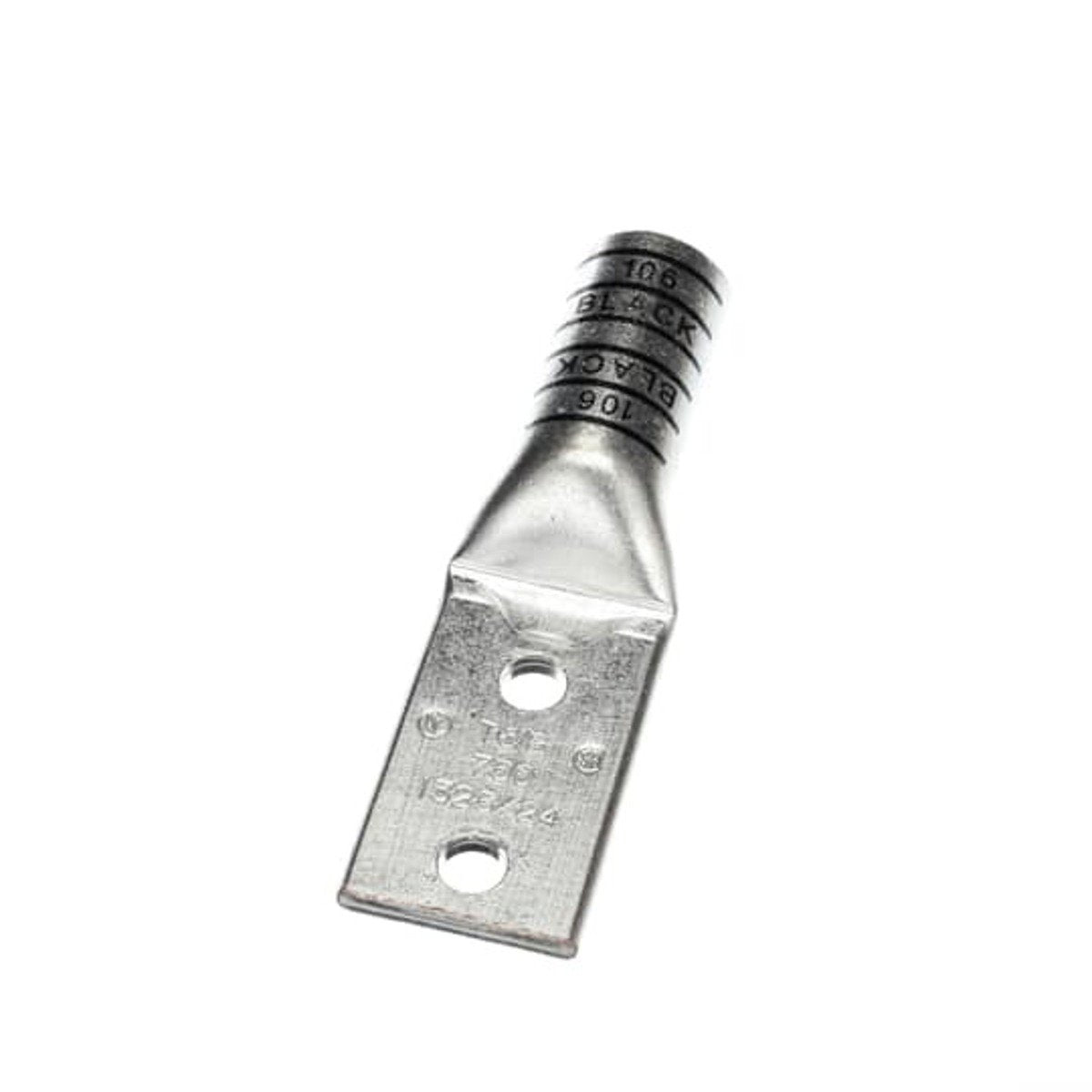

Color-Keyed 54880BE Compression Lug 750 kcmil 2-Hole 1/2 Inch Stud

Product Description

The Color-Keyed 54880BE Compression Lug is designed for reliable connections in electrical applications. It features a 2-hole design, suitable for conductors up to 750 kcmil. The lug is made from high conductivity wrought copper and ensures a secure connection with a 1/2 inch stud size.

• Colored bands on connectors match markers on dies.
• Manufactured to meet UL E9809 standards.
• Ideal for use with Blackburn compression connectors.

Product Highlights

Color-Keyed compression system provides a reliable crimp by matching connectors to the right tool and die.

Product Information

Standard Information

• Brand: Color-Keyed
• Manufacturer: ABB - Installation Products

Technical Specifications

• Type: 2-Hole Non-Insulated
• Color: Black
• Series: 54800
• Die Code: 106
• Stud Size: 1/2 inch
• Conductor Size: 750 kcmil
• Barrel Size: 1.33 inches diameter
• Overall Length: 6.2 inches
• Voltage Rating: 35 kV
• Mounting Hole Size: 0.531 inches
• Material: Copper
• Specifications: 1-3/4 inches stud hole spacing, tin plated
