Color-Keyed 54866BE Compression Lug 4/0 AWG 2-Hole 1/2 Inch Stud Die Code 54

Product Description

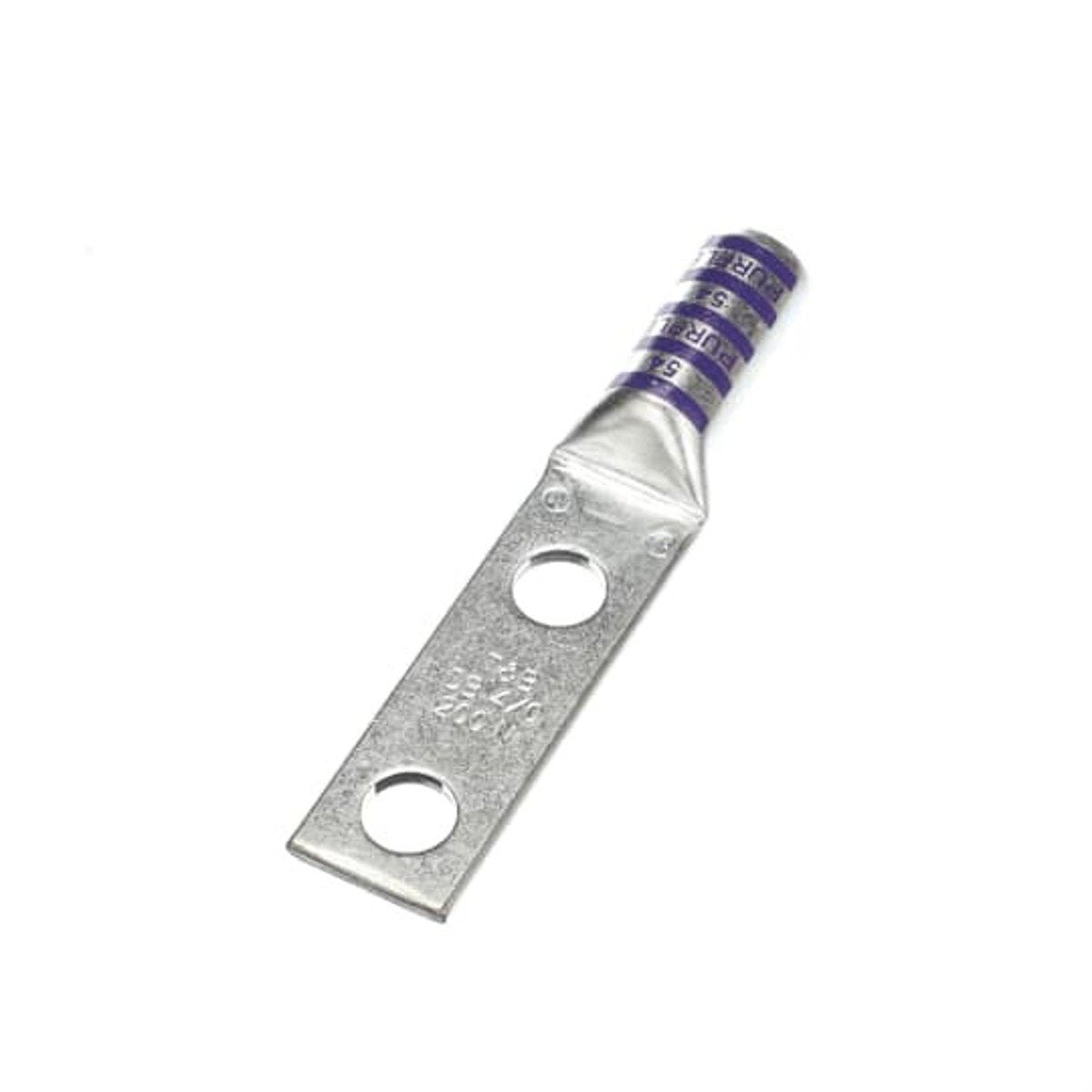

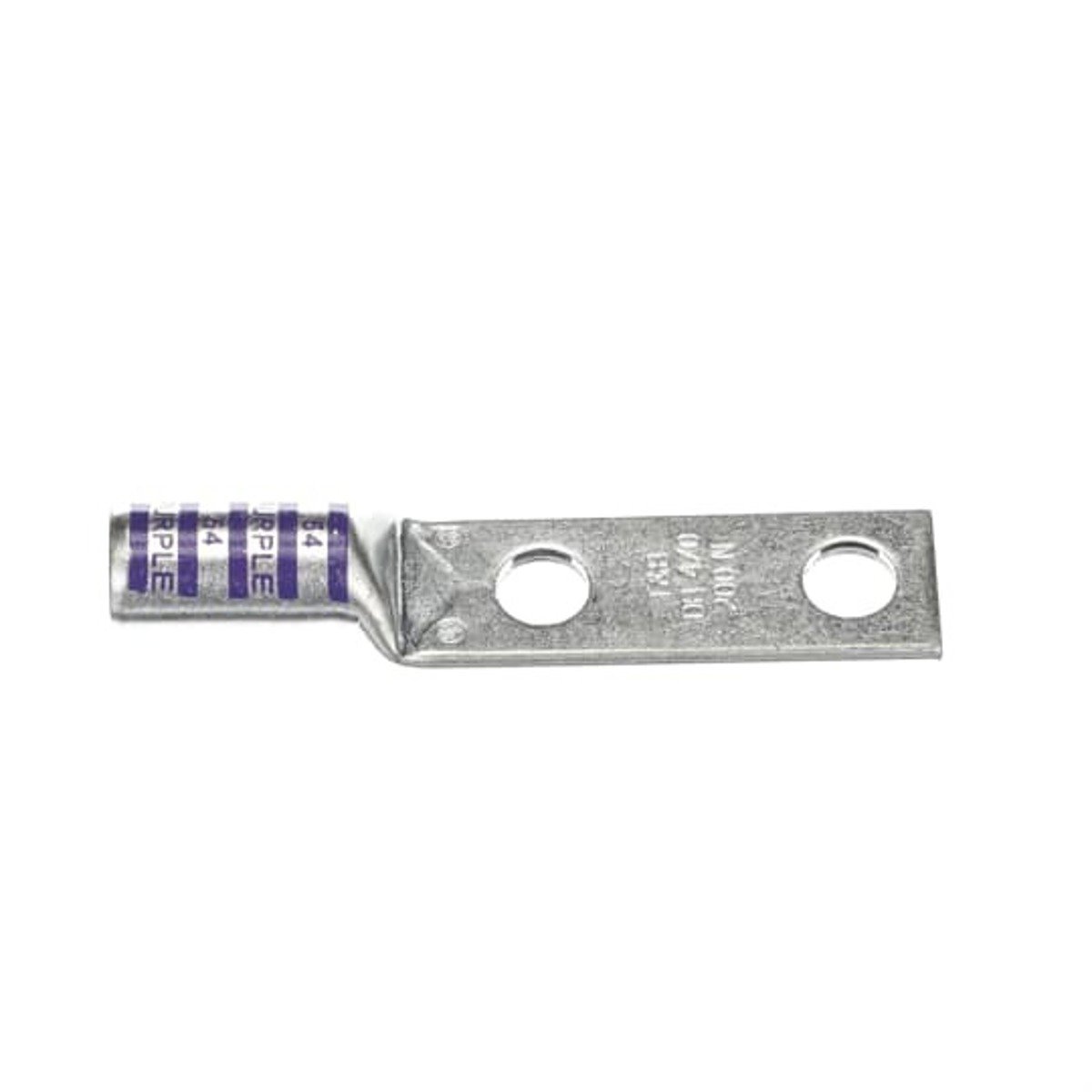

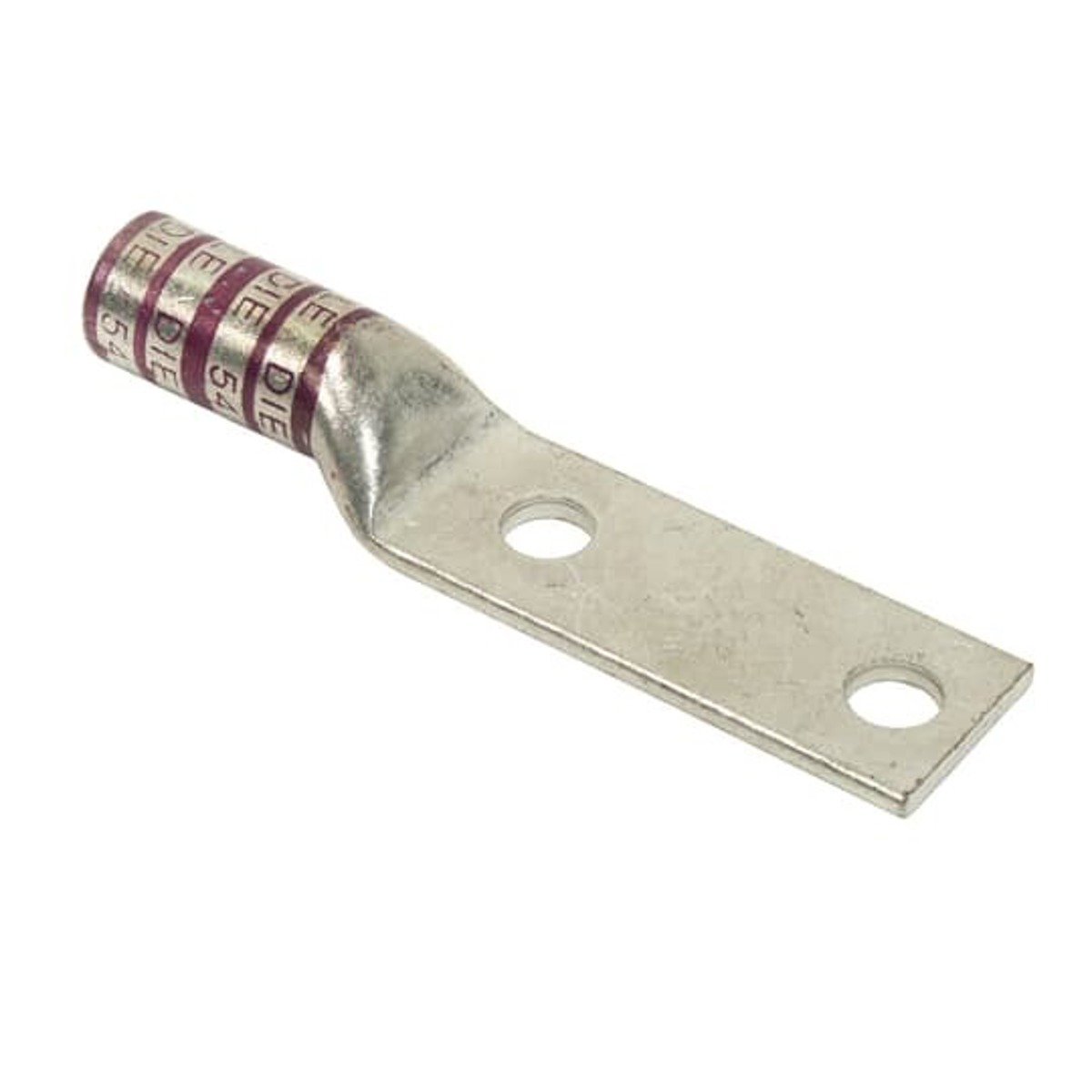

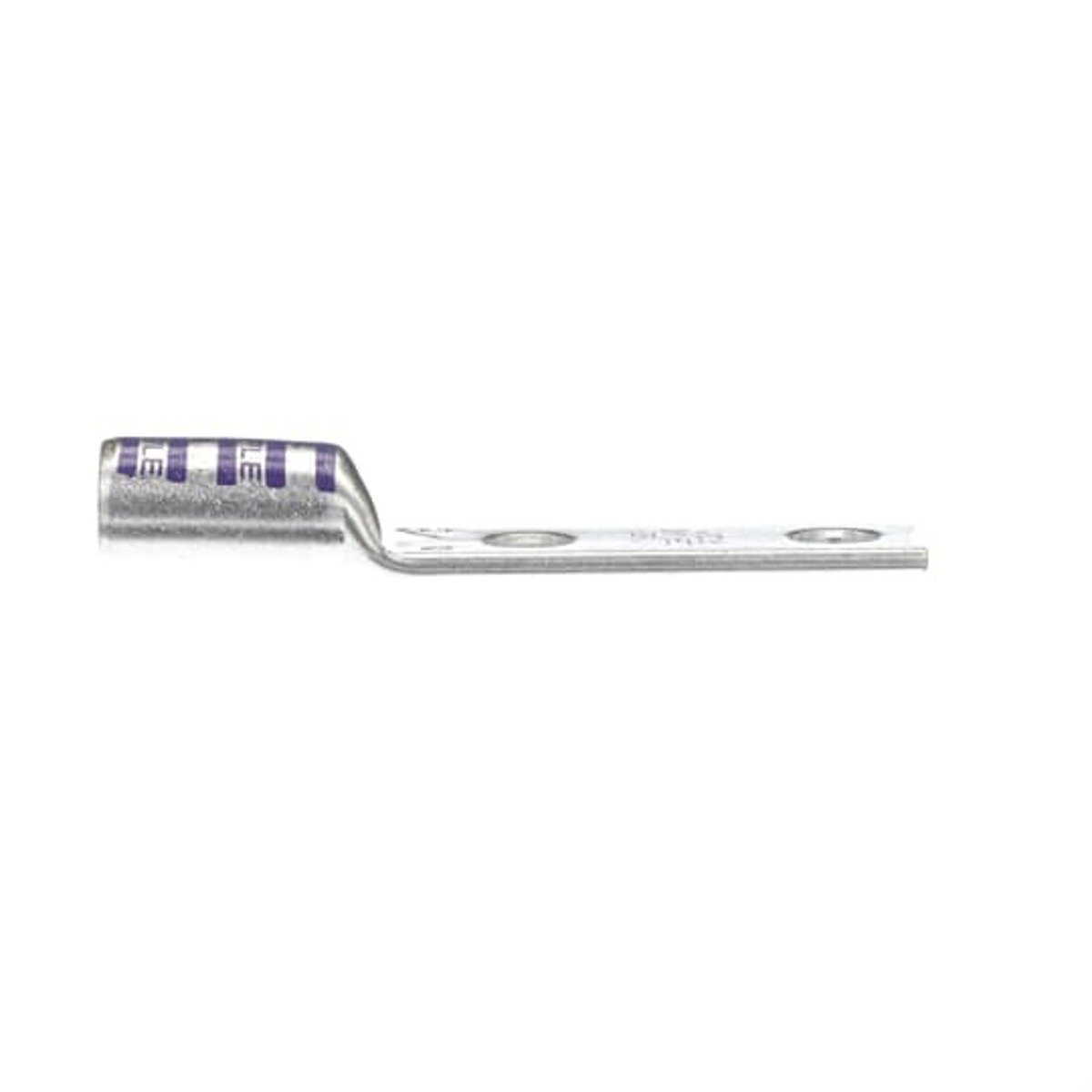

The Color-Keyed 54866BE compression lug is designed for use with 4/0 AWG copper conductors. This non-insulated, two-hole compression lug features a die code of fifty-four and is compatible with a half-inch stud size.

• Suitable for 4/0 AWG copper conductors
• Voltage rating of thirty-five kV
• Color-coded for easy identification

Product Highlights

Ensures a secure crimp for electrical connections with a reliable compression system.

Product Information

Standard Information

• Brand: Color-Keyed
• Manufacturer: ABB - Installation Products

Technical Specifications

• Catalog Number: 54866BE
• Cable Size: 4/0 AWG
• Stud Size: 1/2 inch
• Die Code: 54
• Voltage Rating: 35 kV
• Overall Length: 4.7 inches
• Material: Copper
• Standard: UL E9809
• Color: Purple
• Number of Holes: 2
• Barrel Size: 0.7 inch diameter
• Mounting Hole Size: 0.531 inch
