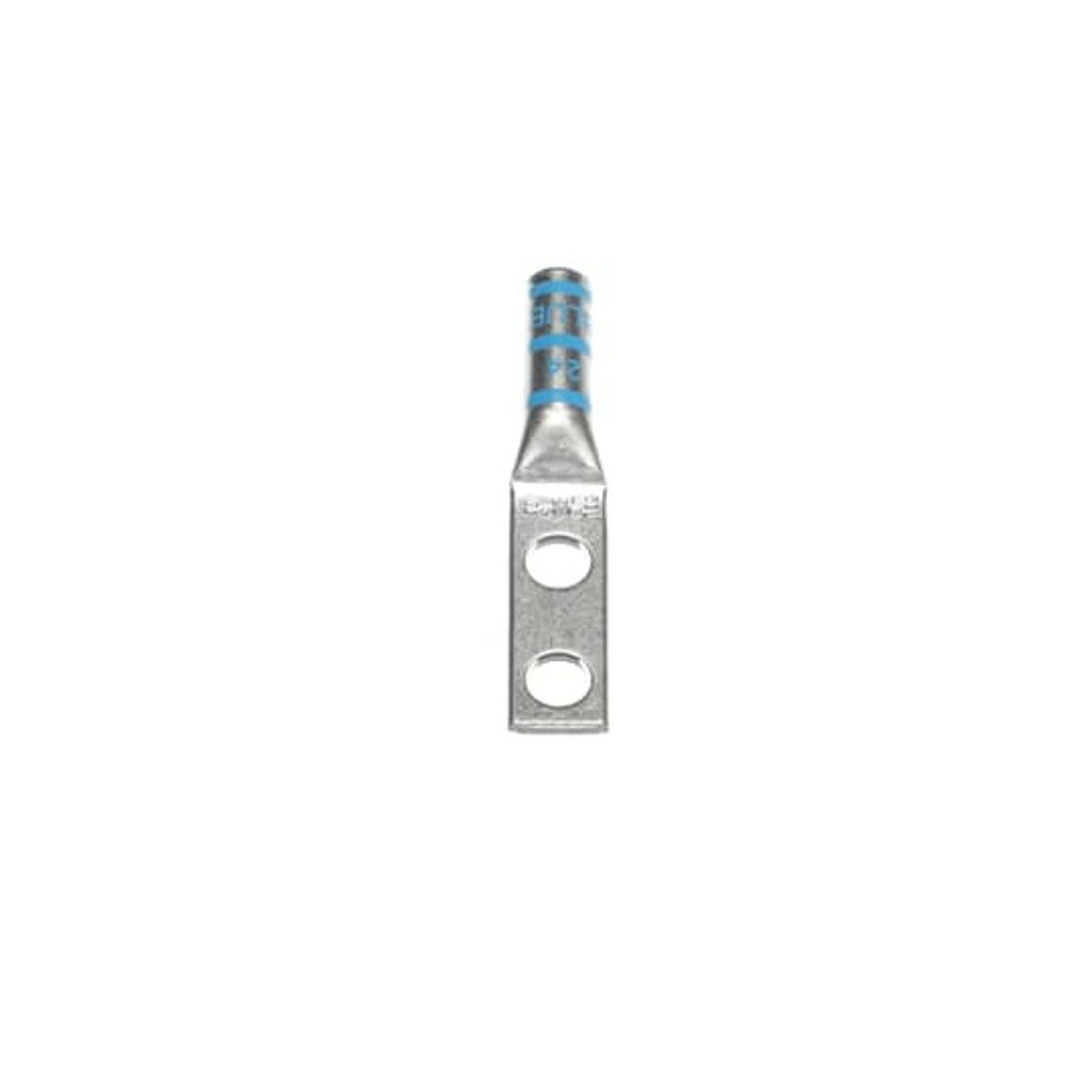

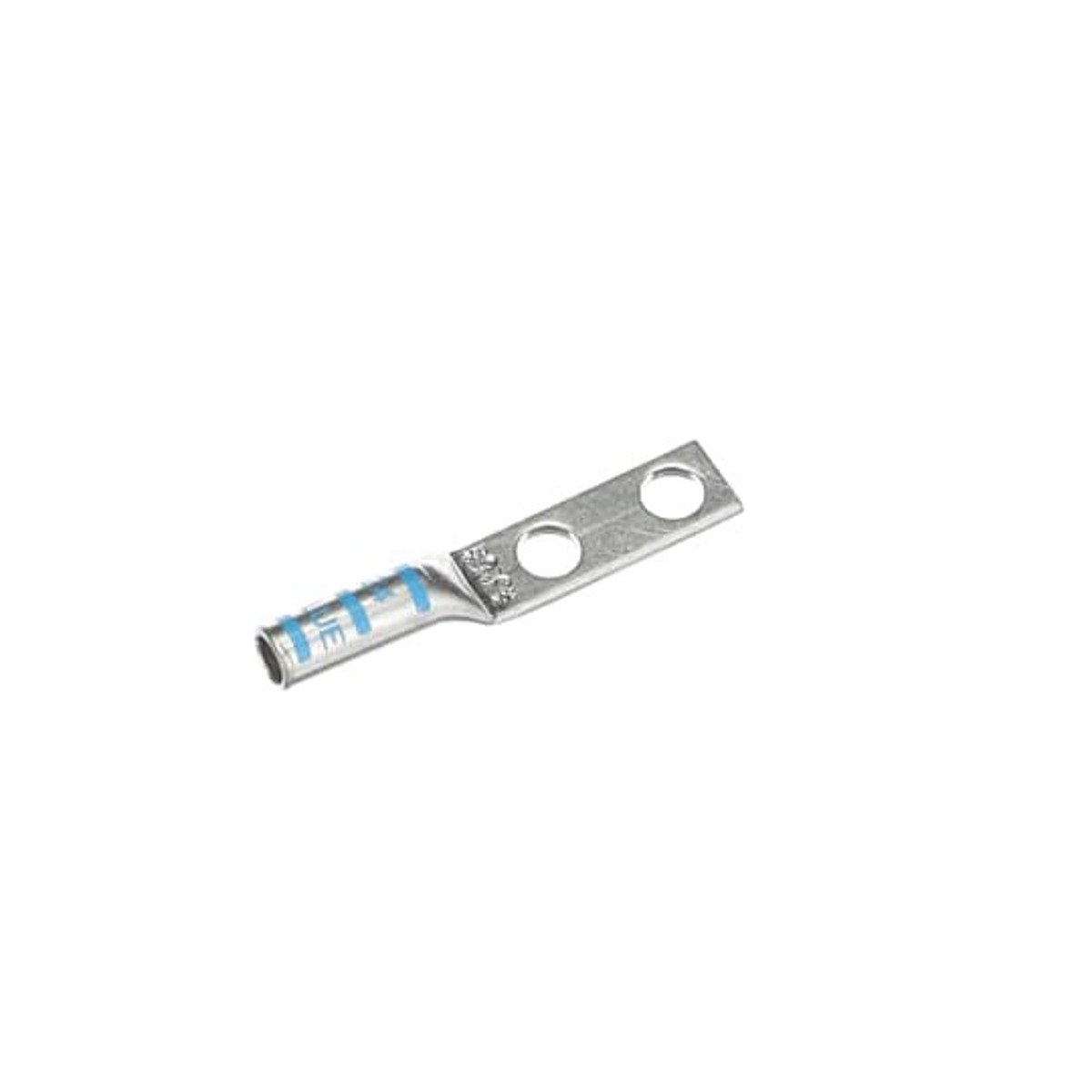

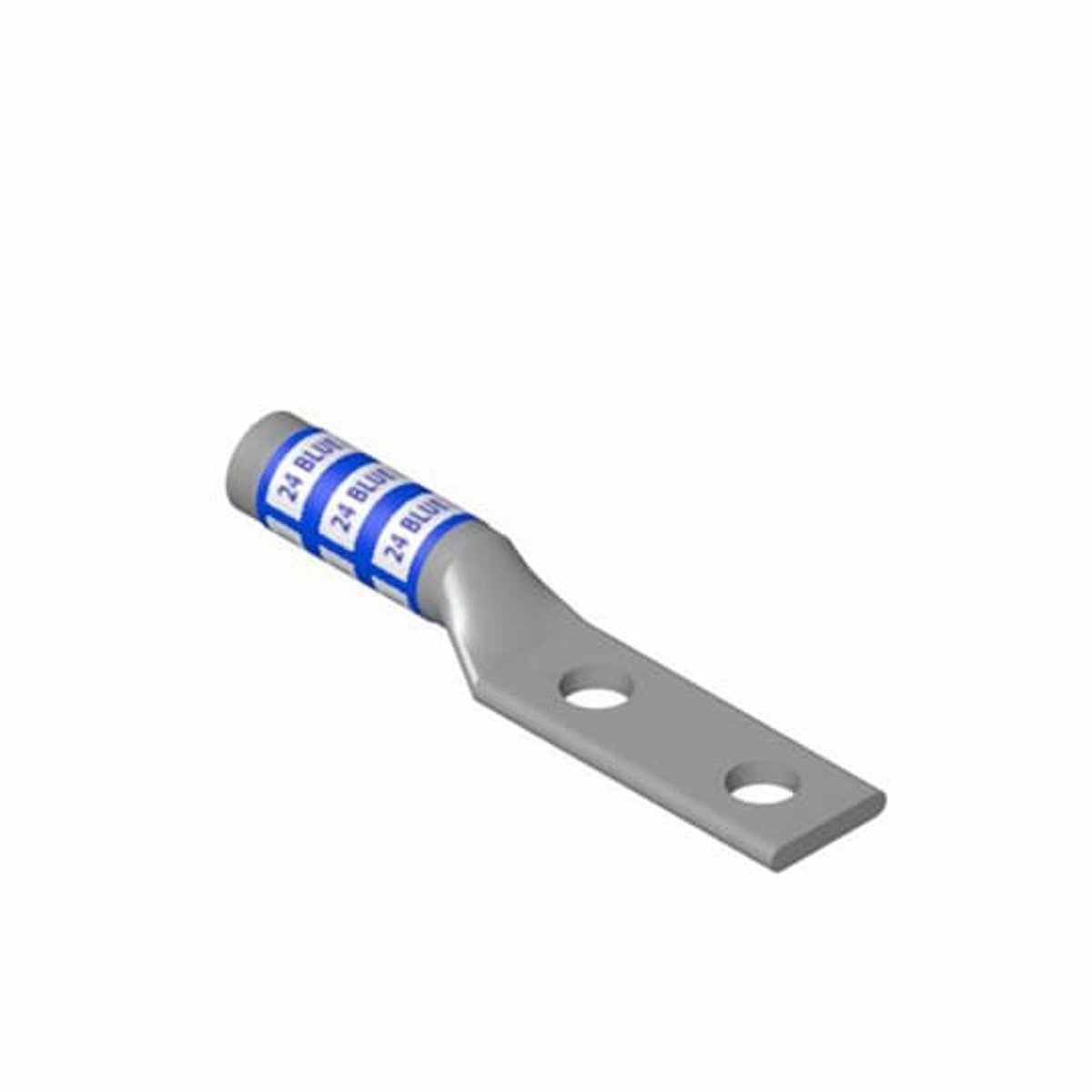

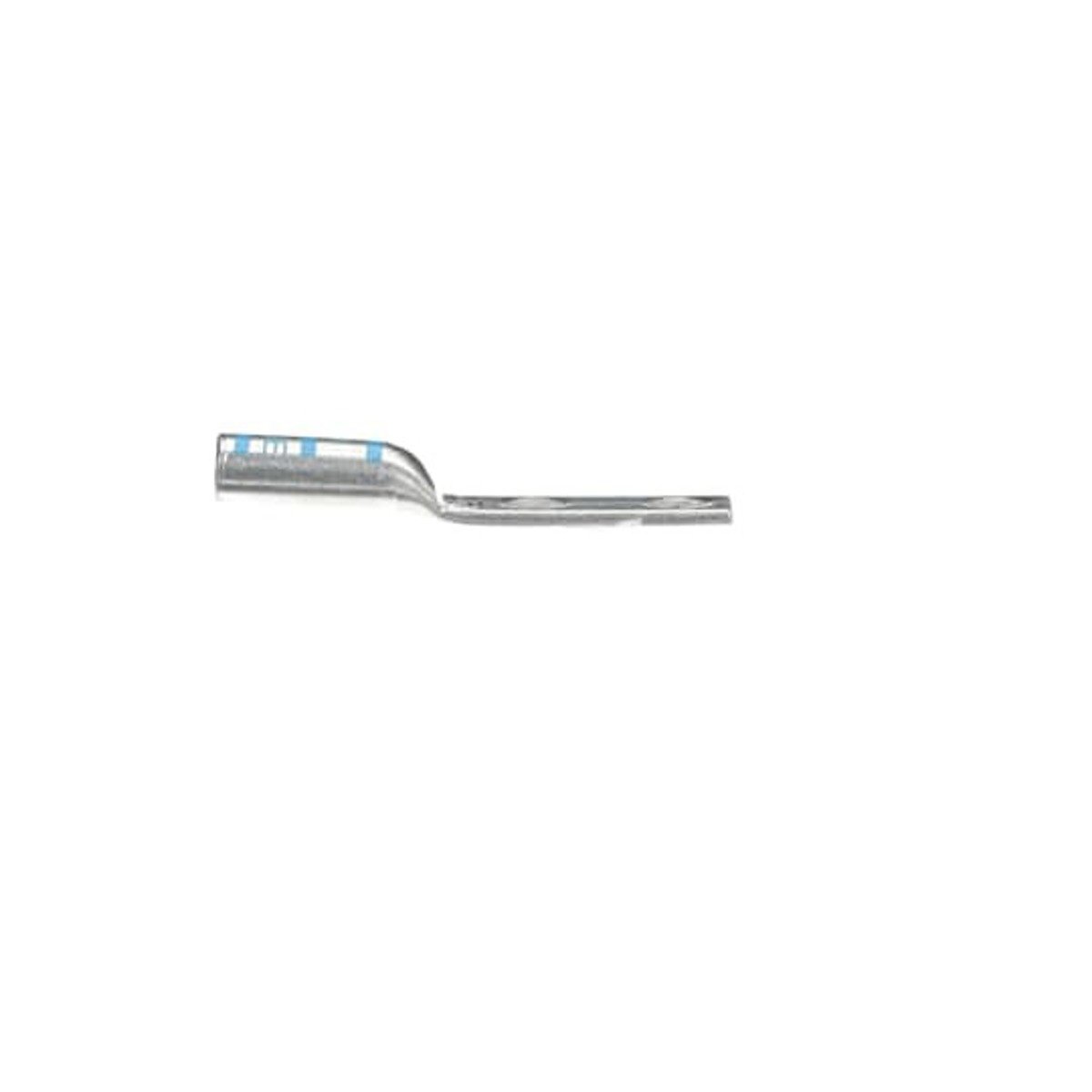

Color-Keyed 54852BE Compression Lug 35 kV 6 AWG 2-Hole Die Code 24

Product Description

The Color-Keyed Compression Lug with MPN 54852BE is designed for 6 AWG copper conductors. This non-insulated lug features a two-hole design and is suitable for applications that require a reliable connection. The product implements a unique color-coded system that aids in selecting the correct connector and tool for proper crimping, ensuring a solid connection every time.

• High conductivity wrought copper construction
• Tin plated finish for added durability
• Compatible with a variety of tools and dies

Product Highlights

This lug is ideal for use in electrical wiring applications and meets industry standards for safety and performance.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• Brand: Color-Keyed

Technical Specifications

• Type: 2-Hole Non-Insulated
• Conductor Size: 6 AWG
• Material: Copper
• Voltage Rating: 35 kV
• Stud Size: 1/4 inch
• Barrel Size: 0.3 inch diameter
• Overall Length: 2.28 inches
• Die Code: 24
• Color: Blue
• Mounting Hole Size: 0.281 inch
• Standard: UL E9809
• Country of Origin: Mexico
