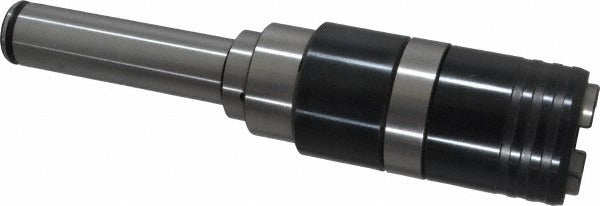

Collis Tool 77822 Tension Compression Tapping Chuck

Product Description

The COLLIS TOOL 77822 is a tension and compression tapping chuck designed for precision tapping operations in machine shop and production environments. It features a 1-inch straight shank and accepts taps up to 7/8 inch capacity, with a 4.88-inch projection that positions the tap accurately relative to the spindle face. The quick-change design allows adapters to be swapped without removing the chuck body from the machine, reducing cycle time during multi-tap setups. A Size 2 adapter is specified for this configuration. Licensed machinists and toolroom technicians install and operate this chuck on CNC machining centers, drill presses, and tapping machines.

This chuck is suited for both production and job-shop tapping applications where controlled float is required to protect tap life and thread quality. The tension and compression float mechanism compensates for minor synchronization error between spindle feed and tap pitch, reducing tap breakage. It supports straight-shank machine spindles with a 1-inch shank diameter and is appropriate for threading operations on ferrous and non-ferrous workpieces. Pipe tap capacity ranges from 1/8 inch minimum to 1/2 inch maximum, making it useful for fluid and pneumatic fitting applications as well as standard thread tapping.

Key Features

• Tension and compression float mechanism reduces tap breakage by compensating for feed-pitch mismatch
• Quick-change design allows fast adapter swaps without disturbing chuck body setup
• 1-inch straight shank with 3-5/8 inch shank length for secure machine spindle engagement
• Maximum tap capacity of 7/8 inch; pipe tap range from 1/8 inch to 1/2 inch
• 1.96-inch nose diameter and 4.88-inch projection for clear workpiece access
• Size 2 adapter interface; no through-coolant required

Compatibility

Designed for use with Size 2 tapping adapters on machines equipped with a 1-inch straight shank spindle connection. Compatible adapters and collets sold separately.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine spindle before installing or removing the chuck or adapter. Ensure the shank is fully seated and secured in the spindle collet or chuck before operation. Verify that the selected tap adapter matches the tap shank size and style before use.
