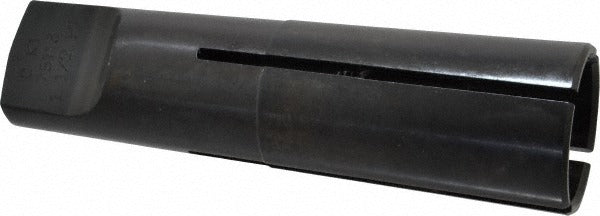

Collis Tool 75113 MT5 Tapping Driver 1-1/2in Pipe Tap

Product Description

The COLLIS TOOL 75113 is an MT5 taper shank split sleeve tapping driver designed for driving 1-1/2 inch pipe taps in machine tool applications. It accepts a tap with a 1-1/2 inch shank diameter and a 1.12 inch tap shank square, providing a secure mechanical connection between the machine spindle and the tap. The split sleeve design allows the tap to be quickly loaded and released without additional tooling. With a tap entry depth of 2-1/4 inches and a 7/16 inch projection, this driver suits production and maintenance tapping operations where precision and repeatability are required.

This tapping driver is intended for use in machine shops, maintenance facilities, and industrial service environments where large-diameter pipe tapping is performed on drill presses, lathes, mills, or tapping machines equipped with an MT5 taper spindle. It is suited for machinists and industrial maintenance technicians working with 1-1/2 inch NPT or pipe thread applications in steel, cast iron, and similar materials.

Key Features

• MT5 taper shank mounts directly to machine spindles with a standard Morse Taper No. 5 socket
• Split sleeve design provides positive tap drive and quick tap changes
• 1-1/2 inch tap shank diameter and 1.12 inch tap shank square for secure fit
• 2-1/4 inch tap entry depth accommodates full engagement of the tap shank
• 7/16 inch projection dimension for precise tap positioning

Compatibility

Designed as an OEM-style tapping driver for use with 1-1/2 inch pipe taps having a matching shank diameter and shank square dimension on machine tools fitted with an MT5 taper spindle.

Installation Notes

Installation is performed by qualified machinists or industrial maintenance technicians. Ensure the machine spindle is fully powered down and locked out before mounting or removing the taper shank driver. Clean the MT5 taper bore and driver shank thoroughly before seating to ensure proper contact and prevent slippage. Verify tap shank square dimensions match the driver sleeve before operation to avoid damage to the tap or workpiece.
