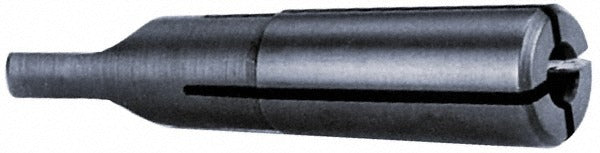

Collis Tool 75110 MT5 Taper Shank Split Sleeve Tapping Driver

Product Description

The COLLIS TOOL 75110 is an MT5 taper shank split sleeve tapping driver designed to hold and drive pipe taps in machine tool spindles. The unit accepts a 3/4 inch pipe tap and features a 1-11/16 inch tap entry depth, allowing secure engagement with the tap shank during the threading operation. The split sleeve design grips the tap shank and transmits torque while permitting the tap to float axially, which helps maintain thread alignment and reduces tap breakage. This driver is suited for use on drill presses, milling machines, and machining centers equipped with an MT5 spindle taper. Machinists and tool and die professionals will find it well matched to production pipe threading work.

This tapping driver is intended for machining environments where pipe threads must be cut to specification in metal workpieces. The MT5 taper shank seats directly into compatible machine spindles without an adapter. With a 7/16 inch projection and a tap shank diameter of 0.906 inches, the 75110 is configured for standard 3/4 inch pipe tap shanks with a 0.679 inch square drive. It is commonly used in industrial maintenance shops, fabrication facilities, and job shops where consistent, repeatable pipe thread quality is required.

Key Features

• MT5 taper shank seats directly into MT5-compatible machine spindles
• Split sleeve design grips the tap shank for secure torque transmission
• 1-11/16 inch tap entry depth for full shank engagement
• 7/16 inch projection for proper tap positioning
• 0.906 inch tap shank diameter accommodates standard 3/4 inch pipe tap shanks
• 0.679 inch tap shank square drive for positive rotational engagement

Compatibility

Designed for use with 3/4 inch pipe taps featuring a 0.906 inch shank diameter and a 0.679 inch shank square, installed in machine tool spindles with an MT5 taper socket.

Installation Notes

Installation is performed by machinists or tool and die technicians. Before mounting, ensure the machine spindle and the MT5 taper surfaces are clean and free of chips or burrs to achieve proper seating. Power down and lock out the machine before inserting or removing the driver from the spindle. Verify that the tap shank dimensions match the driver specifications before securing the split sleeve to avoid slippage during operation.
