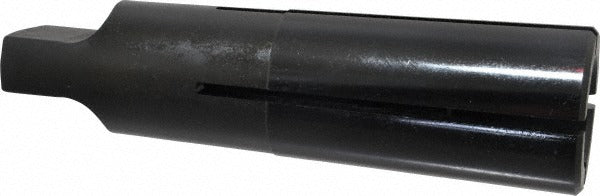

Collis Tool 75102 MT5 Split Sleeve Tapping Driver

Product Description

The COLLIS TOOL 75102 is an MT5 taper shank split sleeve tapping driver designed for precision tapping operations on drill presses, milling machines, and similar machine tool spindles. It accepts a 1-3/8 inch tap with a tap shank diameter of 1.108 inches and a tap shank square of 0.831 inches. The split sleeve design allows for quick tap changes and maintains accurate axial alignment during the tapping cycle. The 7/16 inch projection and 2-11/32 inch tap entry depth make this driver suited for moderate to deep tapping applications where rigidity and repeatability are required. Machinists and toolroom technicians working in production or job-shop environments are the primary users of this type of driver.

This tapping driver is used in machining applications where a Morse Taper 5 spindle is present. It is appropriate for ferrous and non-ferrous metal tapping on manual or CNC machine tools equipped with an MT5 taper socket. The split sleeve mechanism provides a positive drive while allowing the tap to float axially, reducing the risk of tap breakage. Typical installations include production tapping of threaded holes in steel, cast iron, aluminum, and similar materials in industrial or maintenance machining environments.

Key Features

• MT5 taper shank for direct mounting in Morse Taper 5 spindles without an adapter
• Split sleeve design enables fast tap changes and maintains axial alignment
• 1-3/8 inch tap capacity accommodates large-diameter taps for heavy-duty threading work
• 2-11/32 inch tap entry depth supports moderate to deep hole tapping applications
• 0.831 inch tap shank square provides a secure, positive drive connection to the tap
• 7/16 inch projection keeps the tap close to the spindle nose for improved rigidity

Compatibility

Designed for use in machine tool spindles with a Morse Taper 5 socket. Compatible with taps having a 1-3/8 inch tap shank diameter of 1.108 inches and a shank square of 0.831 inches.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Before mounting or changing taps, disengage the machine spindle and confirm all motion has stopped. Insert the MT5 taper shank fully into the spindle socket and seat it firmly before initiating any tapping cycle. Inspect the split sleeve and tap shank square for wear or damage prior to each use to maintain drive integrity and avoid tap breakage.
