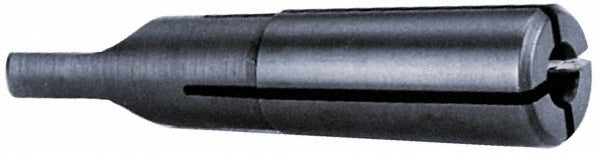

Collis Tool 75100 Split Sleeve Tapping Driver MT5

Product Description

The COLLIS TOOL 75100 is an MT5 taper shank split sleeve tapping driver designed for precision tapping operations in machine shop and industrial environments. It accepts a 1-1/8 inch tap and provides a tap entry depth of 2-9/64 inches, making it suitable for through-hole and deep-thread tapping applications. The split sleeve design allows the driver to release torque and protect the tap from breakage during reversing cycles. A 7/16 inch projection and a tap shank diameter of 0.896 inches ensure secure tap retention and accurate axial alignment. Licensed machinists and toolroom technicians are the primary installers of this tooling.

This tapping driver is used in vertical and horizontal machining centers, drill presses, and turret lathes where an MT5 taper spindle is present. It is appropriate for production tapping in both job shop and manufacturing floor settings where repeatability and tap protection are required. The 0.672 inch tap shank square provides a positive drive interface with standard square-shank taps sized for 1-1/8 inch diameter work.

Key Features

• MT5 taper shank for direct mounting in compatible machine spindles
• Split sleeve design protects taps by releasing during reversal
• Accepts 1-1/8 inch taps with 0.896 inch shank diameter
• Tap entry depth of 2-9/64 inches for deep-thread applications
• 0.672 inch tap shank square for positive drive engagement
• 7/16 inch projection for proper tap positioning

Compatibility

Designed for use in machine spindles with an MT5 (Morse Taper 5) bore, accepting standard square-shank taps with a 1-1/8 inch tap diameter and a 0.896 inch shank diameter.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Before mounting, ensure the machine spindle is fully powered down and locked out per LOTO procedures. Clean both the MT5 taper on the driver and the machine spindle bore thoroughly before seating to ensure full contact and prevent runout. Do not use this driver with taps outside the specified shank diameter and square dimensions, as improper fit can cause tap breakage or spindle damage.
