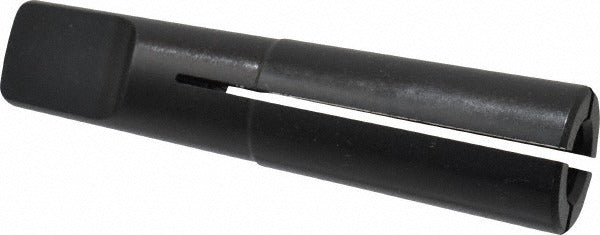

Collis Tool 73422 Split Sleeve Tapping Driver MT3

Product Description

The COLLIS TOOL 73422 is a split sleeve tapping driver with an MT3 taper shank, designed to hold and drive taps in machining and drilling operations. It accepts a 5/8 inch tap with a tap entry depth of 1-29/64 inches and provides 1/4 inch projection. The tap shank diameter is 0.48 inches and the tap shank square measures 0.36 inches. This driver is used in production and toolroom environments where accurate, repeatable tapping is required on drill presses, milling machines, and similar machine tools. Machinists and toolroom technicians are the primary users of this type of toolholder.

The 73422 is suited for use in metal-cutting operations on drill presses and vertical milling machines where a floating or driven tapping attachment is needed. The MT3 taper shank seats directly into compatible spindle tapers, providing a secure, repeatable connection for tapping ferrous and non-ferrous materials. The split sleeve design allows the driver to grip the tap shank securely while allowing quick tap changes. Typical applications include production tapping in job shops, toolrooms, and general metalworking facilities.

Key Features

• MT3 taper shank for direct mounting into compatible machine spindles
• Accepts 5/8 inch taps with 1-29/64 inch tap entry depth
• 0.48 inch tap shank diameter with 0.36 inch tap shank square
• 1/4 inch projection for positioning tap at the workpiece
• Split sleeve design allows secure tap grip and quick tap changes

Compatibility

Designed as an OEM-style replacement or standard toolholder for machine tools equipped with an MT3 taper spindle that require a split sleeve tapping driver for 5/8 inch taps.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and de-energize the machine spindle completely before inserting or removing the taper shank driver. Clean both the MT3 taper shank and the spindle bore thoroughly before seating to ensure a secure fit and prevent runout. Follow the machine manufacturer guidelines and applicable shop safety procedures when setting up tapping operations.
