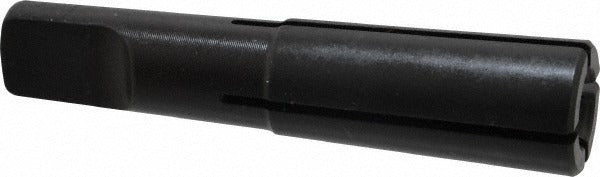

Collis Tool 72425 Split Sleeve Tapping Driver MT2

Product Description

The COLLIS TOOL 72425 is a split sleeve tapping driver designed for use with a 1/2 inch tap and an MT2 (Morse Taper 2) taper shank. It provides a positive drive connection between the machine spindle and the tap, allowing the tap to float axially and release when the cut is complete. The driver accepts a tap shank diameter of 0.367 inches and a tap shank square of 0.275 inches. Tap entry depth is 1-3/32 inches with a 1/4 inch projection. Machinists and tool and die technicians install this driver in drill presses, milling machines, and tapping machines where controlled thread-cutting operations are required.

This tapping driver is suited for production and maintenance machine shops performing internal thread operations on ferrous and non-ferrous materials. The MT2 shank fits directly into any machine spindle or tailstock with a matching Morse Taper 2 socket, making it a common choice for bench drill presses and manual mill setups. It is appropriate for through-hole and blind-hole tapping applications where tap float compensation is needed to prevent tap breakage.

Key Features

• MT2 taper shank for direct mounting in Morse Taper 2 spindles and tailstocks
• Split sleeve design provides positive drive with axial float to protect tap during threading
• Accepts 1/2 inch tap size with 0.367 inch tap shank diameter
• Tap shank square of 0.275 inches for secure rotational engagement
• 1-3/32 inch tap entry depth with 1/4 inch projection
• Compact and lightweight at 0.3 pounds for easy handling and tooling changeouts

Compatibility

Designed as an OEM-style tapping driver for use with 1/2 inch taps in machine spindles equipped with a Morse Taper 2 (MT2) socket.

Installation Notes

Installation is performed by machinists or toolroom technicians. Power down and de-energize the machine spindle completely before mounting or removing the tapping driver. Insert the MT2 shank fully into the spindle or tailstock socket and secure per the machine manufacturer's procedure. Verify tap shank square engagement in the split sleeve before operating to ensure proper drive and axial float function.
