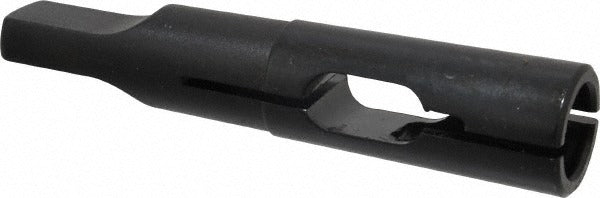

Collis Tool 72323 Drill Driver 1/2 Inch MT2 Morse Taper

Product Description

The COLLIS TOOL 72323 is a drill driver designed for use with 1/2 inch drills featuring an MT2 outside Morse taper shank. It provides a 1/4 inch projection and accepts drill tang thicknesses ranging from 19/64 inch to 0.303 inch, making it compatible with a wide range of drill shanks in that size class. The drill driver transmits torque from a Morse taper spindle to the drill, securing the tool and maintaining accurate alignment during drilling operations. It is suited for use in machine shop and industrial environments where Morse taper spindles are standard.

This drill driver is intended for use in drill presses, lathes, and milling machines equipped with MT2 taper spindles. The 1/2 inch drill size and compatible tang thickness range make it appropriate for medium-duty metal working and machining operations. Machinists and tool room technicians install this type of driver when adapting straight-shank or tang-style drills to taper-spindle machines. It is a common fitment in both production and maintenance machining settings.

Key Features

• MT2 outside Morse taper shank for secure spindle engagement
• Accepts 1/2 inch drill size for consistent tool holding
• 1/4 inch projection for proper drill positioning
• Compatible drill tang thickness range: 19/64 inch to 0.303 inch
• Drill depth of 1-5/16 inches for adequate tool engagement
• Drill tang compatible design ensures positive drive and prevents slippage

Compatibility

Designed as an OEM-style replacement or direct-fitment drill driver for machine spindles with an MT2 Morse taper, accepting 1/2 inch drills with tang thicknesses between 19/64 inch and 0.303 inch.

Installation Notes

Installation should be performed by a qualified machinist or tool room technician. Power down and lock out the machine spindle before inserting or removing the drill driver. Clean the Morse taper bore and the driver shank thoroughly before seating to ensure full taper contact and prevent fretting. Use a proper drift and drift slot to remove the driver from the spindle - never strike the drill or driver directly to dislodge it.
