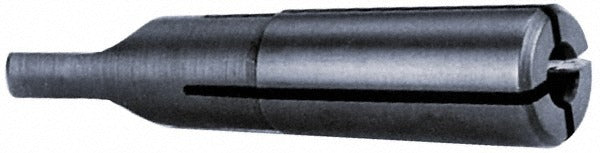

Collis Tool 72268 MT2 Morse Taper Drill Driver

Product Description

The COLLIS TOOL 72268 is an MT2 outside Morse taper drill driver designed for use with taper-shank drill bits in machine tool applications. It features a 1/4-inch projection and accepts drill tangs ranging from 0.118 to 0.122 inches in thickness. The driver interfaces with MT2 taper sockets on drill presses, lathes, and milling machines, providing a secure, self-holding taper fit that transfers rotational force to the cutting tool. It is sized for a 0.2055-inch decimal drill with a 7/8-inch drill depth, making it a precise fit for standard production and maintenance machining operations. Installation and use are appropriate for machinist and toolroom professionals.

This drill driver is suited for metalworking environments where Morse taper tooling is the standard interface. Typical applications include drill press work, turret lathe setups, and general machine shop operations requiring accurate, repeatable drill positioning. The MT2 taper is a widely used size in light to medium-duty machine tools found in both production and job-shop settings. The 0.2055-inch drill size places this driver in common use for close-tolerance hole work in metal fabrication and maintenance machining.

Key Features

• MT2 outside Morse taper shank for self-holding fit in standard MT2 sockets
• 1/4-inch projection for positive drill seating and accurate depth control
• Drill tang thickness range of 0.118 to 0.122 inches ensures compatible tang engagement
• Sized for 0.2055-inch decimal drill with 7/8-inch drill depth
• Compatible with tang-drive drill bits for positive torque transfer

Compatibility

Designed as an OEM-style tooling accessory for machine tools equipped with MT2 taper spindle sockets and compatible with tang-drive taper shank drill bits having a drill tang thickness of 0.118 to 0.122 inches.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Always power down and de-energize the machine tool before inserting or removing taper tooling from the spindle. Clean both the driver taper and the spindle socket thoroughly before seating to ensure full contact and prevent fretting. Use a proper drift and drift slot to remove the driver from the spindle; never strike the driver directly against the spindle housing.
