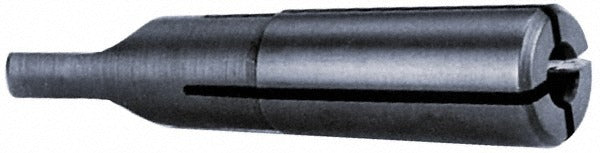

Collis Tool 72263 MT2 Morse Taper Drill Driver No. 9

Product Description

The COLLIS TOOL 72263 is a No. 9 Morse Taper 2 (MT2) drill driver designed to transfer drive from a Morse taper spindle to a straight-shank drill bit. It provides a 1/4 inch projection and accepts drill bits with a tang thickness between 0.118 and 0.122 inches. The driver seats securely in MT2 taper bores found on drill presses, lathes, and milling machines. Machinists, tool-and-die workers, and industrial maintenance technicians use this type of driver when a tang-drive connection is required for positive torque transmission during hole drilling operations.

This drill driver is suited for use in machine shop and industrial maintenance environments where MT2 taper spindles are standard equipment. It is appropriate for applications requiring a No. 9 drill size (0.1969 inches decimal equivalent) and a drill depth capacity of 7/8 inch. The tang-compatible design allows for secure seating and reliable drive engagement in production and maintenance drilling setups.

Key Features

• MT2 outside Morse taper shank seats in standard MT2 taper bores
• No. 9 drill size with 0.1969 inch decimal equivalent
• 1/4 inch projection for accurate positioning
• Drill tang compatible for positive drive engagement
• Accepts drill tang thickness of 0.118 to 0.122 inches
• 7/8 inch drill depth capacity

Compatibility

Designed as an OEM-style replacement or direct-fit driver for machine tools equipped with MT2 taper spindles requiring a No. 9 tang-drive drill connection.

Installation Notes

Installation is performed by machinists or qualified maintenance technicians. Power down and lock out the machine before seating or removing the taper driver. Clean the taper bore and driver shank thoroughly before insertion to ensure full contact and prevent slippage. Do not strike the driver with a metal hammer; use a soft-face mallet or drift to seat and remove the taper.
