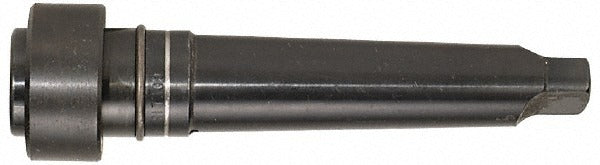

Collis Tool 64134 Magic Collet Chuck 4MT Taper Shank

Product Description

The COLLIS TOOL 64134 is a Magic Collet chuck with a taper shank designed for secure toolholding in CNC and manual machining operations. Built around the Magic Collet system, this chuck accepts Magic Collets and delivers precise, concentric clamping for drilling, reaming, and light milling applications. The shank is a 4MT (No. 4 Morse Taper), and the nose diameter measures 1-11/16 inches. Machinists and toolroom technicians install this chuck in drill presses, lathes, and milling machines equipped with a No. 4 Morse Taper spindle. At 1.2 pounds, it is a solid, shop-ready toolholding solution.

The 64134 is suited for production and job-shop environments where repeatable tool changes and solid chuck retention matter. The Magic Collet system allows quick collet swaps without removing the chuck body from the spindle, which reduces changeover time on the floor. This chuck is appropriate for both vertical and horizontal spindle setups that accept a 4MT shank. It does not include through-coolant capability, making it best suited for dry cutting or flood-coolant applications where coolant is directed externally.

Key Features

• Magic Collet system for fast, repeatable collet changes without removing the chuck body
• No. 4 Morse Taper (4MT) shank for positive drive and easy spindle seating
• 1-11/16 inch nose diameter for standard Magic Collet compatibility
• No through-coolant port - suited for external flood or dry machining setups
• Compact 1.2-pound body reduces spindle load in sensitive setups

Compatibility

Designed for use with the Magic Collet system in machine tool spindles that accept a No. 4 Morse Taper shank.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and de-energize the machine spindle fully before seating or removing the chuck. Clean the Morse Taper bore and shank carefully with a lint-free cloth before insertion to ensure full contact and prevent fretting. Use a proper drift and mallet through the spindle drift slot to eject the chuck - never strike the chuck body directly.
