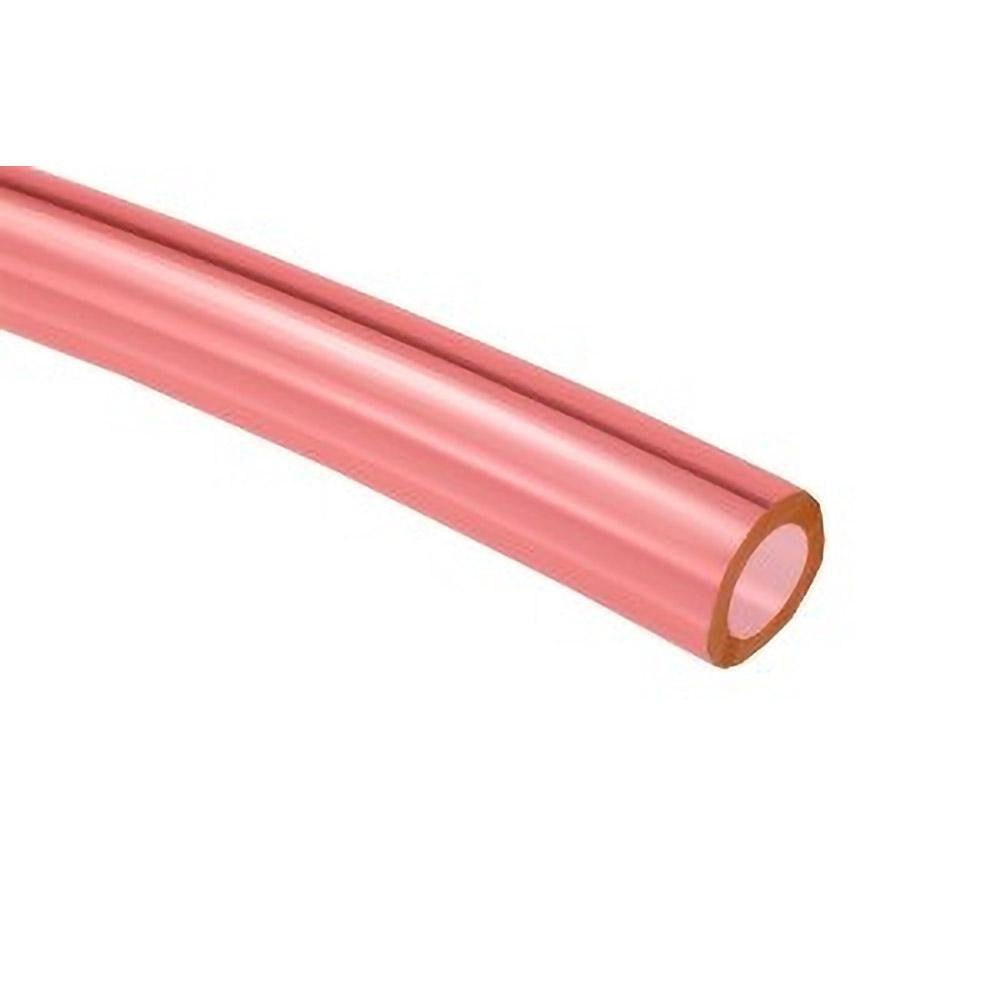

Coilhose Pneumatics PT2503-2500TR Polyurethane Tube Red

Product Description

The COILHOSE PNEUMATICS PT2503-2500TR is a flexible polyurethane pneumatic tubing rated for demanding compressed-air and fluid-transfer applications. It features a 3/32-inch inside diameter and a 5/32-inch outside diameter with a 1/32-inch wall thickness. The tubing handles a maximum working pressure of 120 psi and operates across a temperature range of -40 degrees F to 165 degrees F. Shore 95A hardness gives it excellent kink resistance while maintaining flexibility in tight routing situations. It is supplied in a 2,500-foot coil and is sold in 1-foot increments with a 25-foot minimum cut length. Licensed technicians and industrial maintenance professionals are the primary installers.

This tubing is suited for light industrial, manufacturing, and pneumatic control system installations where small-diameter, flexible air lines are required. Its red color aids quick visual identification of pneumatic circuits in multi-line installations. Typical applications include instrument air lines, actuator supply lines, and small-bore pneumatic control runs in both shop and field environments. The 2,500-foot coil format makes it practical for high-volume service work or panel-build shops that cut to length on demand.

Key Features

• 3/32-inch ID x 5/32-inch OD with 1/32-inch wall thickness for compact pneumatic routing
• 120 psi maximum working pressure suitable for standard shop-air and instrument-air circuits
• Wide service range of -40 degrees F to 165 degrees F handles cold-weather and elevated-temperature environments
• Shore 95A hardness provides kink resistance while remaining flexible
• UL94HB flame-rating compliance for use in panel and enclosure wiring environments
• Compatible with Coilock Push-to-Connect Fittings and Poly-Tube Fittings for tool-free termination

Compatibility

Designed for use with Coilock Push-to-Connect Fittings and Poly-Tube Fittings as specified by the manufacturer.

Installation Notes

Depressurize and lock out the pneumatic circuit completely before cutting or replacing tubing. Use a clean, square tubing cut to ensure a leak-free seat in push-to-connect fittings. Route tubing away from sharp edges, hot surfaces, and moving parts; secure with appropriate clamps or tie-mounts at regular intervals. Follow applicable facility safety procedures and any relevant local compressed-air system codes when integrating into existing pneumatic circuits.
