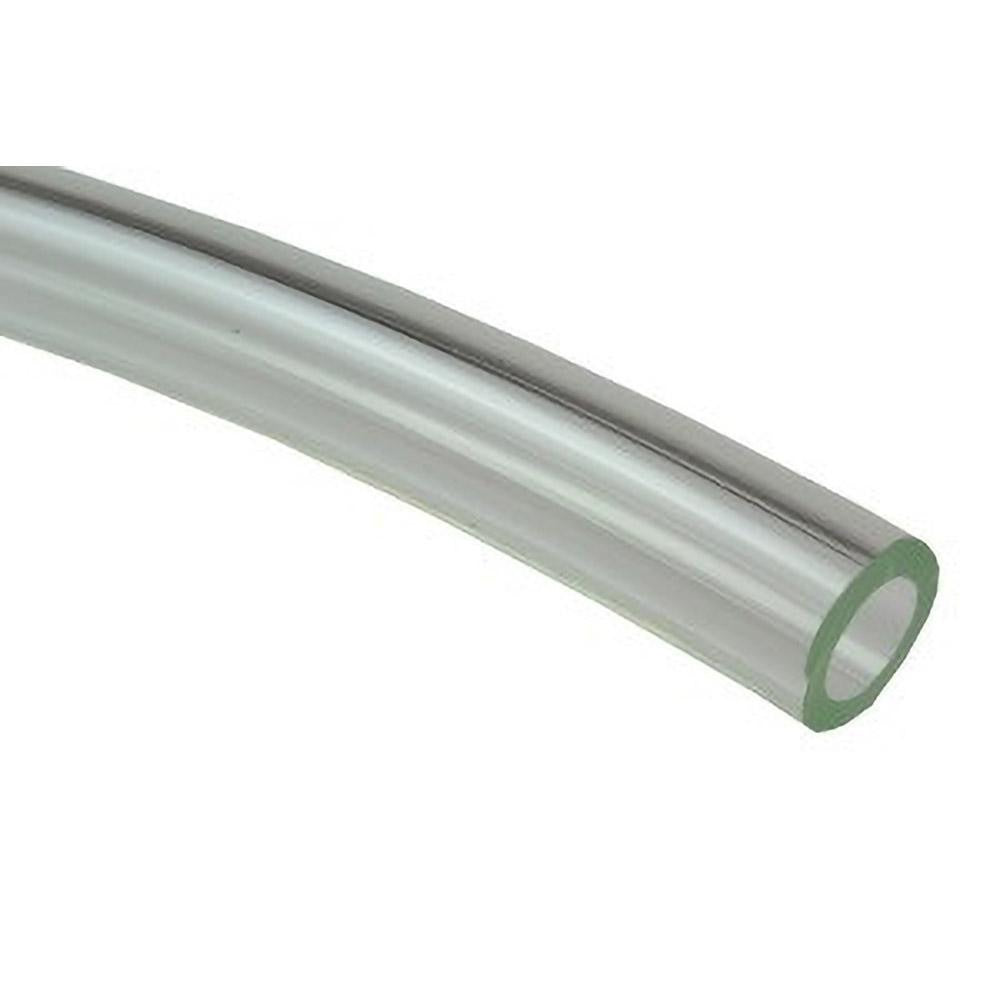

Coilhose Pneumatics PT2503-2500TC Polyurethane Tube

Product Description

The COILHOSE PNEUMATICS PT2503-2500TC is a flexible polyurethane pneumatic tubing sold from a 2,500-foot coil in 1-foot increments, with a 25-foot minimum cut length. It has an inside diameter of 3/32 inches, an outside diameter of 5/32 inches, and a wall thickness of 1/32 inch. The tubing handles a maximum working pressure of 120 psi and operates across a temperature range of -40 degrees F to 165 degrees F. Its Shore 95A hardness provides durability while maintaining flexibility. HVAC technicians, pneumatic controls installers, and industrial maintenance professionals commonly work with this type of tubing in compressed air and control line applications.

This tubing is suited for low-pressure pneumatic signal lines, instrument air connections, and compact routing applications where flexibility and kink resistance matter. The clear color allows quick visual inspection of flow and contamination. It is compatible with Coilock push-to-connect fittings and Poly-Tube fittings, making it a practical choice for field routing in tight spaces on HVAC controls, pneumatic actuators, and similar equipment. Sold by the foot from a 2,500-foot coil, it supports both small service calls and larger installation projects with a 25-foot minimum order.

Key Features

• Flexible polyurethane construction with Shore 95A hardness for durability in demanding pneumatic environments
• Rated to 120 psi maximum working pressure
• Wide operating temperature range: -40 degrees F to 165 degrees F
• Clear tubing allows visual inspection of flow and system condition
• Compatible with Coilock push-to-connect fittings and Poly-Tube fittings
• UL94HB compliant flame rating
• Sold by the foot from a 2,500-foot coil; 25-foot minimum cut length

Compatibility

Designed for use with Coilock push-to-connect fittings and Poly-Tube fittings in compressed air and pneumatic control line applications.

Installation Notes

Installation is typically performed by HVAC controls technicians or pneumatic systems installers. Always depressurize and lock out the air supply before cutting or connecting tubing. Use a clean, square cut to ensure a proper seal at push-to-connect fittings. Avoid routing tubing near sharp edges or heat sources that could exceed the 165 degrees F temperature rating.
