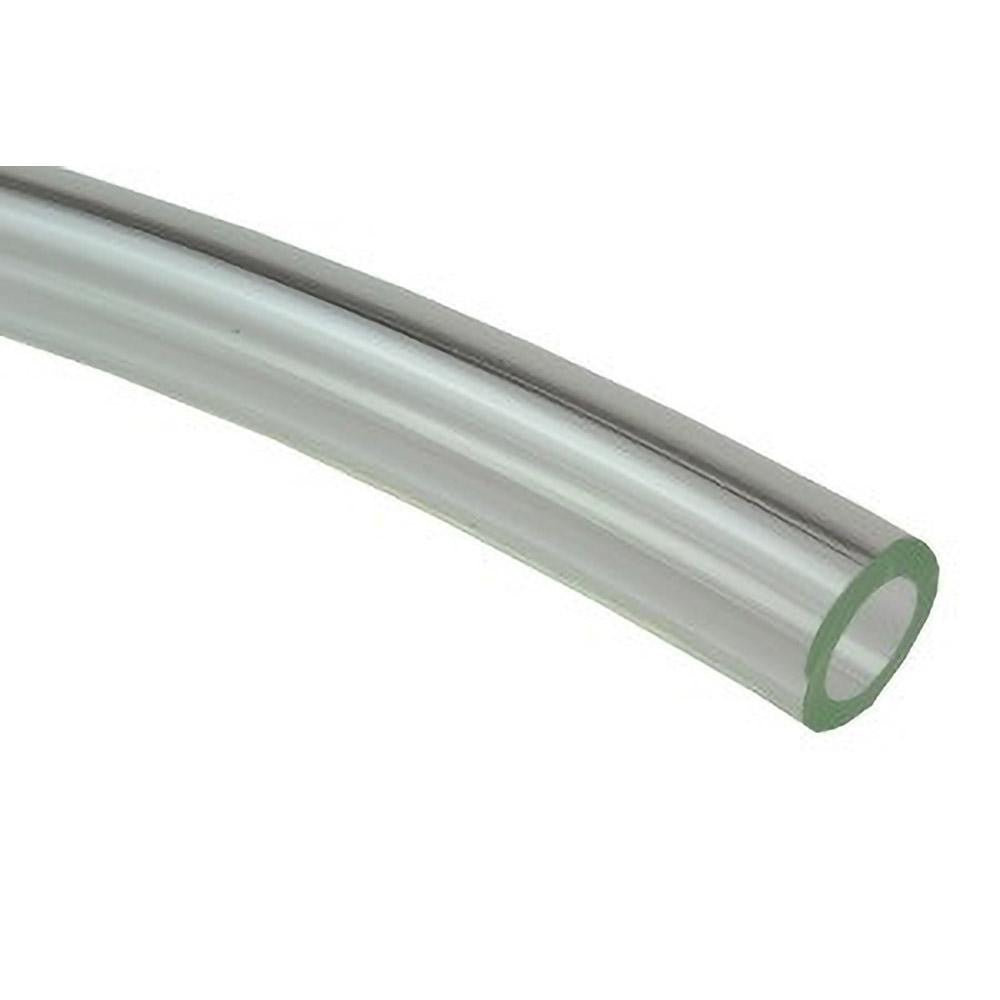

Coilhose Pneumatics PT1220-250TC Polyurethane Tube 120 Psi

Product Description

The COILHOSE PNEUMATICS PT1220-250TC is a flexible polyurethane pneumatic tube rated for a maximum working pressure of 120 psi and a temperature range of -40 to 165 degrees F. With a 12.00 mm outside diameter, 8.00 mm inside diameter, and a 2.00 mm wall thickness, this tube is built for compressed air distribution in industrial and shop environments. The clear color allows visual inspection of flow and contamination without removing the line. It ships in a 250-foot coil and is sold in 1-foot increments with a 25-foot minimum cut length, making it practical for custom runs on the bench or in the field.

This tube is suited for use in light industrial, manufacturing, and automated assembly applications where flexible compressed air lines are required. It works with push-to-connect fittings, including Coilock and Poly-Tube fitting systems. The flexible construction and Shore 95A hardness provide good kink resistance while maintaining enough rigidity to hold routing paths. Typical installers include industrial maintenance technicians, pneumatic system integrators, and mechanical contractors working on compressed air distribution or automation equipment.

Key Features

• 120 psi maximum working pressure for standard compressed air systems
• Wide temperature range: -40 to 165 degrees F
• Clear polyurethane construction allows visual flow and contamination inspection
• Shore 95A hardness balances flexibility with kink resistance
• Compatible with Coilock push-to-connect and Poly-Tube fittings
• UL94HB compliant flame rating
• Available in custom cut lengths from a 250-foot coil (25-foot minimum)

Compatibility

Designed for use with Coilock Push-to-Connect Fittings and Poly-Tube Fittings per manufacturer specifications.

Installation Notes

Installation should be performed by a qualified industrial maintenance technician or pneumatic systems installer. Before cutting or connecting tube, depressurize and lock out the compressed air supply. Use a clean, square tube cut with a dedicated pneumatic tube cutter to ensure a proper seal in push-to-connect fittings. Do not exceed the rated working pressure or temperature limits of the tube.
