Coilhose Pneumatics PT1220-250R Polyurethane Tube 120 Psi

Product Description

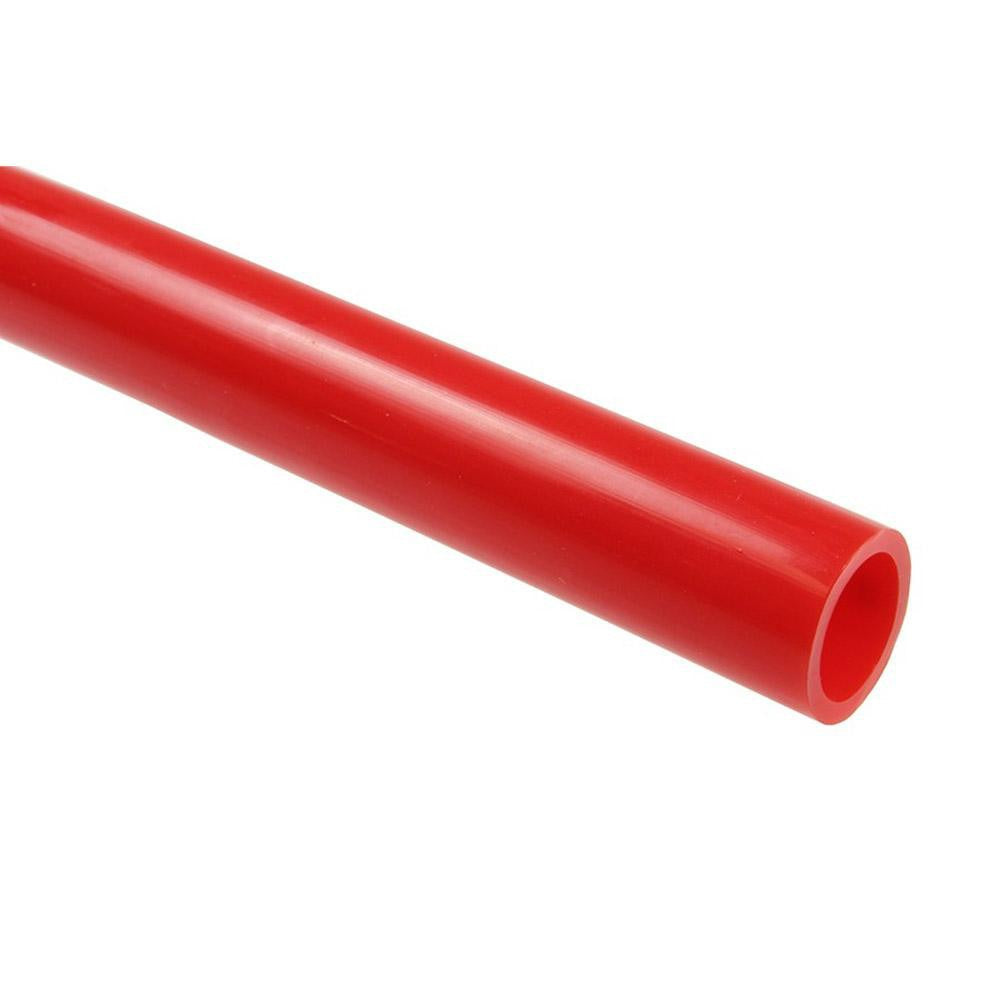

The COILHOSE PNEUMATICS PT1220-250R is a flexible polyurethane pneumatic tube rated for up to 120 psi maximum working pressure. It is designed for compressed air distribution and fluid transfer lines in industrial and commercial pneumatic systems. The tube has a 12.00 mm (approximately 0.47 inches) outside diameter, an 8.00 mm (approximately 0.31 inches) inside diameter, and a 2.00 mm wall thickness. With a temperature range of -40 to 165 degrees F and a Shore 95A hardness rating, it performs reliably across demanding shop and plant environments. Licensed pneumatic technicians and industrial maintenance professionals are the primary installers.

This tube is sold by the foot in a minimum cut length of 25 feet from a 250-foot total coil. It is suited for residential shop equipment, light manufacturing, and commercial facility compressed air circuits where a flexible, abrasion-resistant polyurethane line is required. The red color aids in line identification. Compatible fittings include Coilhose Coilock Push-to-Connect Fittings and Poly-Tube Fittings, making it straightforward to integrate into existing pneumatic plumbing without specialty tooling.

Key Features

• 120 psi maximum working pressure for standard compressed air service
• Wide temperature range: -40 to 165 degrees F for indoor and unheated-space installations
• Polyurethane construction with Shore 95A hardness for flexibility and abrasion resistance
• 12.00 mm OD and 8.00 mm ID dimensions suit common push-to-connect fittings
• Red color for easy line identification in multi-circuit systems
• UL94HB flame-rating compliance for use in general industrial environments

Compatibility

Designed for use with Coilhose Coilock Push-to-Connect Fittings and Poly-Tube Fittings. No additional specific model compatibility was provided by the manufacturer for this SKU.

Installation Notes

Installation is typically performed by industrial maintenance technicians or pneumatic system specialists. Depressurize and lock out the air supply before cutting or connecting any tube run. A clean, square tube cut ensures a proper seal at push-to-connect fittings. Follow applicable OSHA and local safety codes for compressed air systems, and verify that all fitting pressure ratings match or exceed the system operating pressure.
