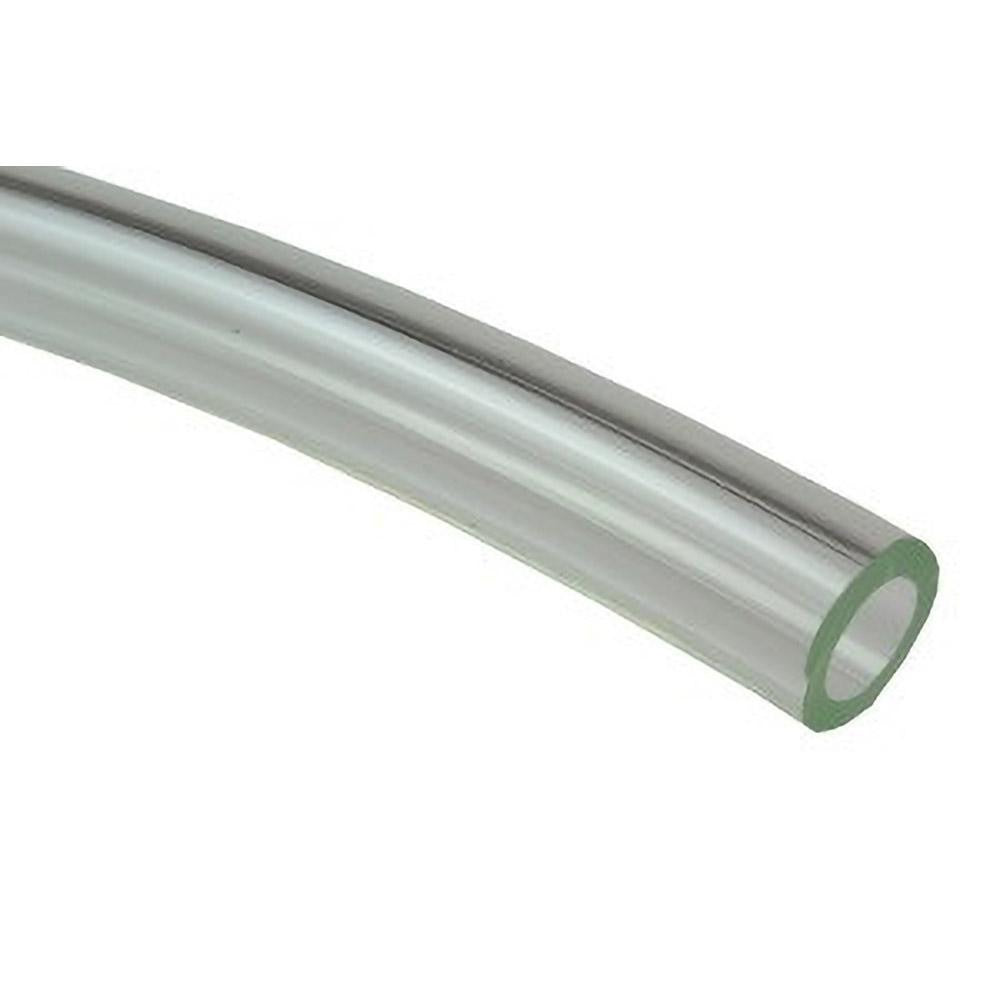

Coilhose Pneumatics PT0203-50TCD Polyurethane Tube 50 Ft

Product Description

The COILHOSE PNEUMATICS PT0203-50TCD is a clear polyurethane pneumatic tube rated for demanding compressed-air and fluid-transfer applications. It measures 0.062 inches inside diameter and 0.125 inches outside diameter, supplied in a 50-foot coil. Constructed from flexible polyurethane with a Shore A hardness of 95A, this tubing handles a maximum working pressure of 233 psi and an operating temperature range of -60 to 200 degrees F. Licensed HVAC techs, plumbers, and pneumatic system installers use this type of tubing wherever lightweight, kink-resistant, flexible air lines are required. UL94HB flame-rating compliance is confirmed.

This tubing is suited for light industrial, commercial, and trade shop pneumatic systems where flexible, small-bore air lines are routed between components. The 50-foot coil length provides enough run for most panel-to-tool or fitting-to-fitting plumbing tasks. It is compatible with Coilock Push-to-Connect Fittings and Poly-Tube Fittings, making it a direct fit for existing pneumatic plumbing setups that use those connection standards. The clear wall allows visual confirmation of flow and helps locate blockages or moisture without disassembly.

Key Features

• 233 psi maximum working pressure for compressed-air service
• Wide temperature range: -60 to 200 degrees F
• Flexible polyurethane construction with 95A Shore hardness — resists kinking and abrasion
• Clear tube wall for visual flow inspection
• UL94HB compliant flame rating
• Compatible with Coilock Push-to-Connect Fittings and Poly-Tube Fittings

Compatibility

Designed for use with Coilock Push-to-Connect Fittings and Poly-Tube Fittings. Suitable as a small-bore pneumatic supply line in compressed-air distribution systems requiring flexible polyurethane tubing.

Installation Notes

Installation is performed by pneumatic system technicians or qualified tradespeople familiar with compressed-air plumbing. Depressurize the system fully and bleed residual air before cutting into any existing line. Use a clean, square tube cut to ensure proper seating in push-to-connect fittings. Inspect fittings for debris before inserting tube, and verify full insertion depth to prevent blow-out under pressure.
