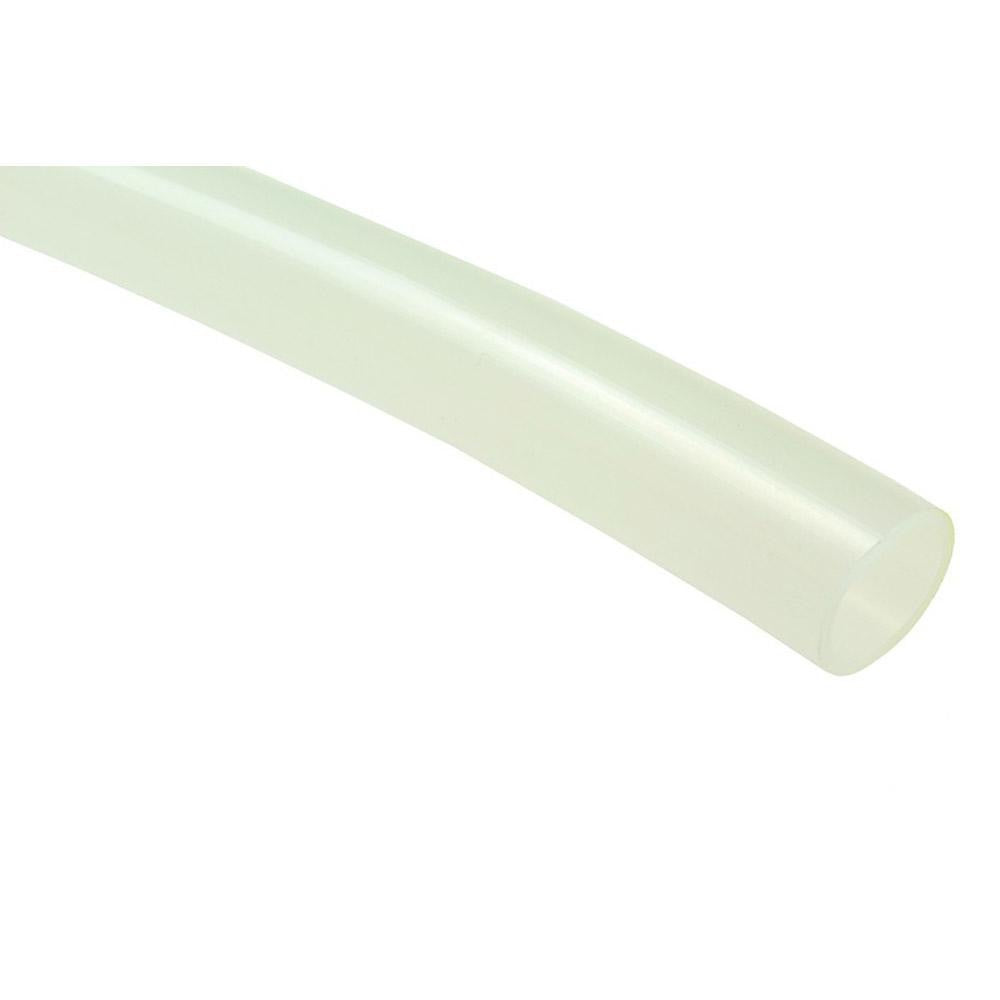

Coilhose Pneumatics PE2510-100D Polyethylene Tube

Product Description

The COILHOSE PNEUMATICS PE2510-100D is a flexible polyethylene pneumatic tube rated for a wide range of light-duty compressed air and fluid transfer applications. It has an outside diameter of 0.156 inches and an inside diameter of 0.106 inches, supplied in a standard 100-foot coil. The natural color polyethylene construction is Shore D 50 hardness, offering enough flexibility for routing through tight spaces while maintaining consistent bore dimensions. It carries a maximum working pressure of 166 psi and an operating temperature range of -60 to 200 degrees F. HVAC, instrumentation, and pneumatic control technicians install this tube where a lightweight, chemically compatible line is required.

This tube is suited for residential and light commercial pneumatic systems, instrument air lines, and low-pressure fluid transfer where FDA and NSF-51 compliance is required. Its natural color and flexible construction make it a practical choice for control panel wiring chases, pneumatic actuator supply lines, and similar instrumentation runs. The 100-foot coil length reduces field splicing and minimizes waste on longer runs.

Key Features

• Flexible polyethylene construction with Shore D 50 hardness for easy routing
• Maximum working pressure of 166 psi
• Wide temperature range: -60 to 200 degrees F
• FDA compliant and NSF-51 listed for food-contact and sanitary applications
• Compatible with Coilock push-to-connect fittings and Poly-Tube fittings
• Supplied in a 100-foot standard coil to minimize field splicing

Compatibility

Designed for use with Coilock push-to-connect fittings and Poly-Tube fittings as specified by the manufacturer.

Installation Notes

Installation is typically performed by pneumatic control technicians or licensed HVAC mechanics working on instrument air or low-pressure pneumatic systems. Depressurize the supply line completely before cutting or connecting this tube. Use a clean, square tube cut to ensure a proper seal in push-to-connect fittings. Verify all fitting connections meet applicable system pressure ratings before returning the circuit to service.
