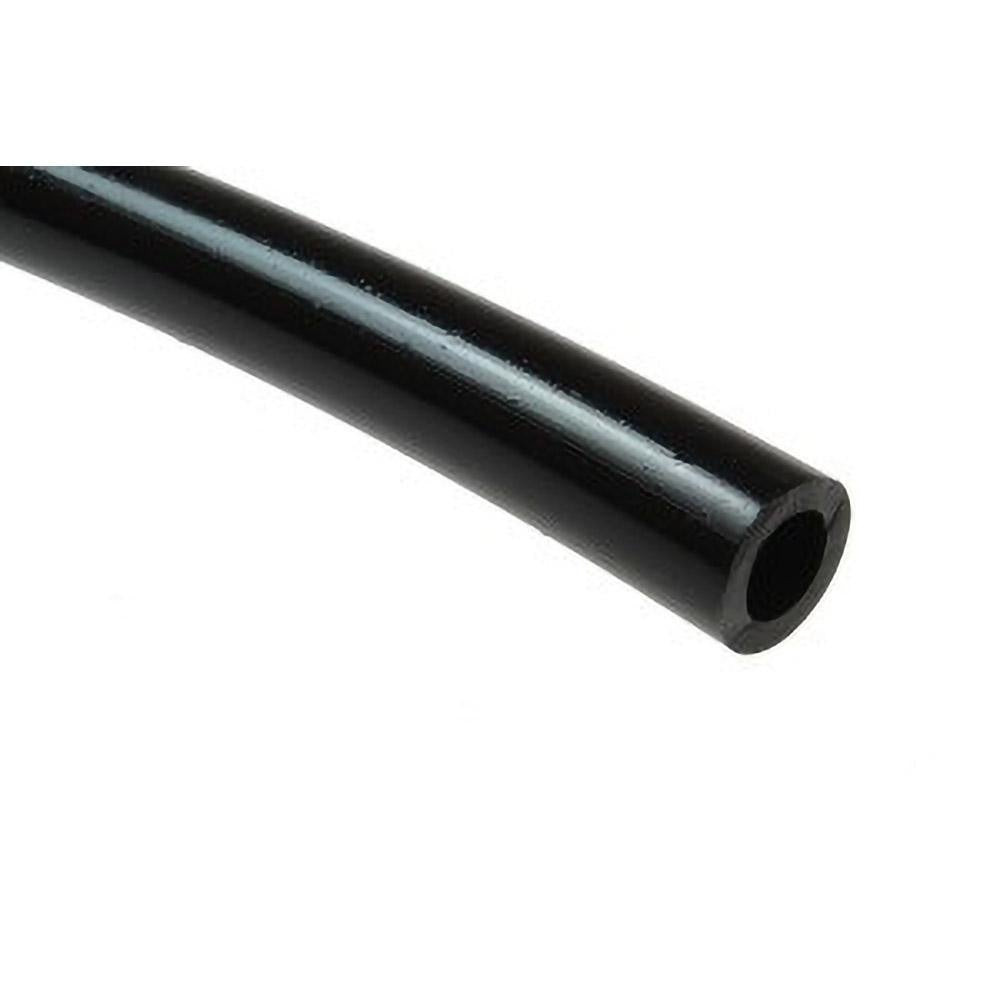

Coilhose Pneumatics PE0417-1000K Polyethylene Tube 1/4 in Od

Product Description

The COILHOSE PNEUMATICS PE0417-1000K is a black polyethylene pneumatic tube designed for low- to medium-pressure air and fluid distribution in industrial and commercial settings. With an inside diameter of 11/64 inch (0.170 inch) and an outside diameter of 1/4 inch, this tubing handles a maximum working pressure of 173 psi across a temperature range of -40 to 150 degrees F. The flexible construction and Shore 50D hardness make it easy to route through tight spaces without kinking. This coil ships as a 1,000-foot spool, sold in 1-foot increments with a 25-foot minimum cut length, making it practical for both large installs and smaller service runs.

This polyethylene tube is suited for pneumatic control lines, instrument air distribution, and light fluid transfer in manufacturing, processing, and mechanical system applications. It is rated FDA and NSF-51 compliant, making it appropriate for food-contact and potable-water-adjacent installations where tubing material certification is required. The tube is compatible with Coilhose Coilock push-to-connect fittings and standard poly-tube fittings, simplifying termination without special tooling. Residential and commercial HVAC technicians, plumbers, and pneumatic system installers all use this style of tubing for control and instrument lines.

Key Features

• 11/64 inch ID and 1/4 inch OD with a 0.040-inch wall thickness for consistent dimensional tolerance
• 173 psi maximum working pressure for reliable performance in pneumatic control applications
• Operating range of -40 to 150 degrees F suits both cold-climate and warm mechanical room environments
• FDA and NSF-51 compliant material for use in food-contact and potable-water-adjacent installations
• Compatible with Coilhose Coilock push-to-connect fittings and standard poly-tube fittings
• 1,000-foot coil sold in 1-foot increments with a 25-foot minimum cut length for flexible ordering

Compatibility

Designed for use with Coilhose Coilock push-to-connect fittings and standard poly-tube fittings. Confirm fitting bore and insert size match the 11/64 inch ID and 1/4 inch OD before installation.

Installation Notes

Installation is typically performed by pneumatic system technicians, HVAC controls specialists, or licensed plumbers depending on the application. Depressurize and lock out the pneumatic or fluid system completely before cutting or connecting tubing. Use a clean, square tube cut to ensure full engagement in push-to-connect fittings and a leak-free seal. Verify all fittings and connections meet the pressure and temperature ratings of the installed system before returning it to service.
