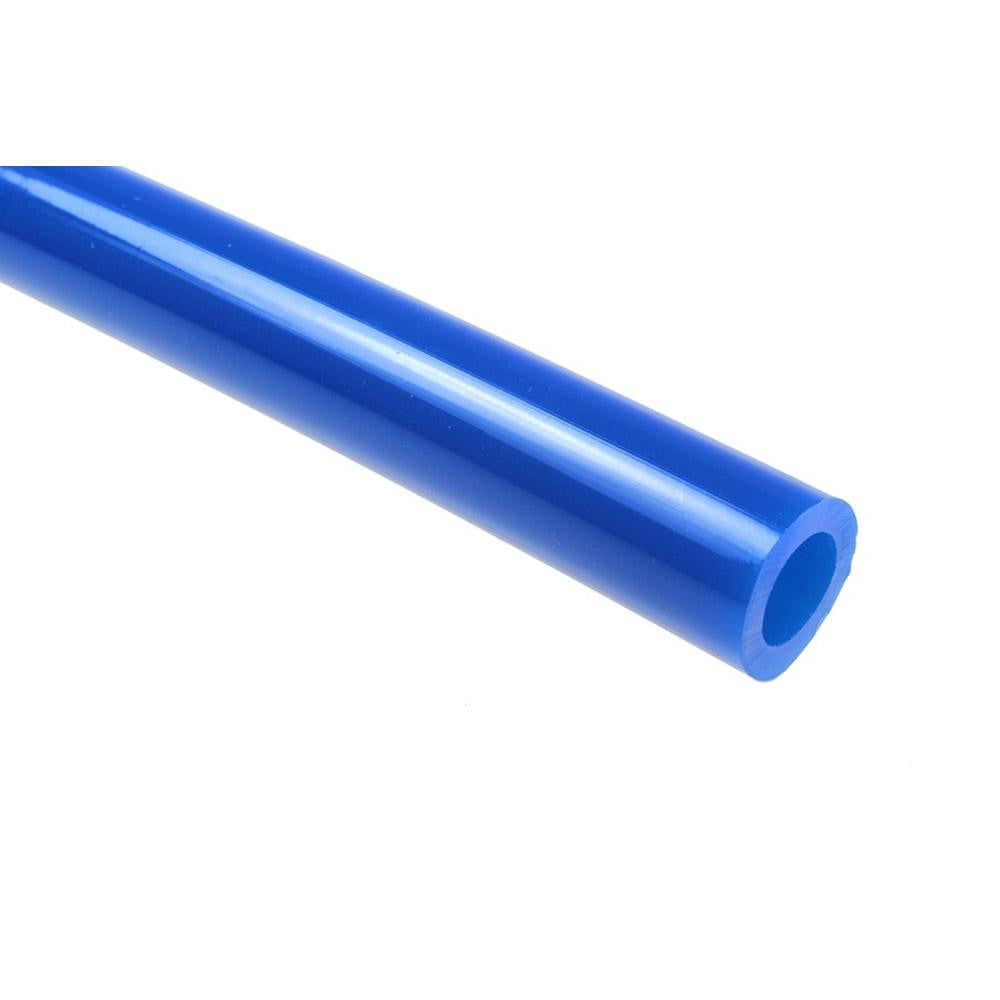

Coilhose Pneumatics NC2525-100B Nylon Tube 5/32 in Od Blue

Product Description

The COILHOSE PNEUMATICS NC2525-100B is a flexible blue nylon pneumatic tubing sold in 100-foot coil lengths, priced in 1-foot increments with a 25-foot minimum cut length. It features a 5/32-inch outside diameter and a 0.106-inch inside diameter with a 0.025-inch wall thickness. Rated to 275 psi maximum working pressure and suitable for service from -60 degrees F to 200 degrees F, this tubing is built for demanding compressed-air and pneumatic control line applications. Licensed HVAC technicians, industrial mechanics, and pneumatic system installers use this tubing for routing control air and instrument lines in light-to-medium duty pneumatic circuits.

This nylon tube is suited for residential and commercial pneumatic plumbing, instrument air lines, and low-to-medium pressure compressed-air distribution. It is rated under UL94HB flammability standards, making it appropriate for environments where flame-spread ratings are specified. The tubing is compatible with Coilock fittings and Poly-Tube fittings, supporting quick installation into existing pneumatic assemblies without special tooling. Flexible construction allows routing through tight bends and confined equipment spaces.

Key Features

• 275 psi maximum working pressure for reliable compressed-air service
• Temperature range of -60 degrees F to 200 degrees F suits both cold-climate and high-heat environments
• 5/32-inch OD and 0.106-inch ID with 0.025-inch wall thickness for precise fit with compatible fittings
• Flexible nylon construction with 78 HR hardness balances rigidity and bend radius
• Blue color for easy identification in multi-line pneumatic installations
• UL94HB flame-spread rating meets common specification requirements

Compatibility

Compatible with Coilock fittings and Poly-Tube fittings. Designed as a direct-fit replacement or new-installation tubing for pneumatic control and compressed-air systems requiring 5/32-inch OD nylon tube.

Installation Notes

Installation is performed by industrial mechanics, HVAC technicians, or pneumatic system technicians. Depressurize and lock out the compressed-air supply before cutting or connecting tubing. Use a clean, square tubing cutter to avoid deforming the tube end, which can compromise fitting seal integrity. Verify fitting compatibility and pressure ratings before placing the system back in service.
