Coilhose Pneumatics NC1210-500K Nylon Tube 165 Psi 500 Ft

Product Description

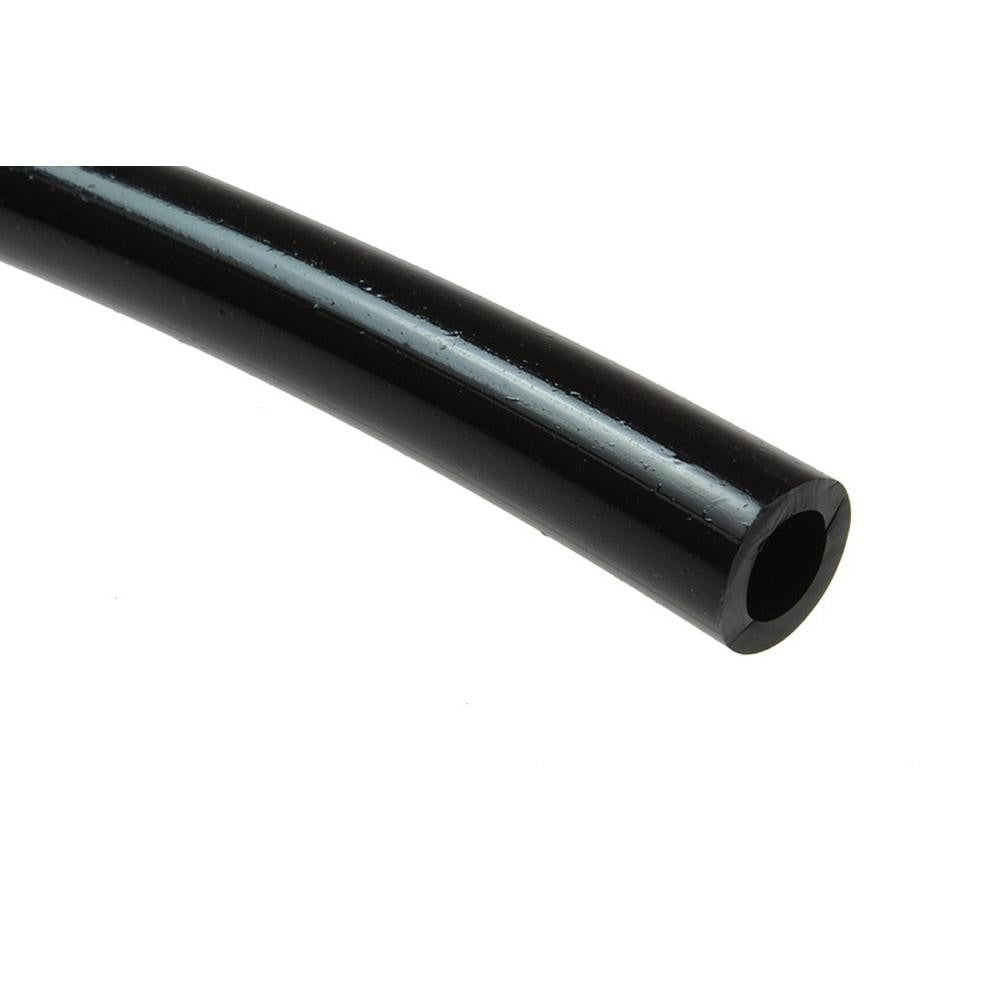

The COILHOSE PNEUMATICS NC1210-500K is a flexible black nylon pneumatic tube rated for continuous service from -60 degrees F to 200 degrees F at a maximum working pressure of 165 psi. It features a 12.00 mm outside diameter, a 10.00 mm inside diameter, and a 1.00 mm wall thickness. Sold in 1-foot increments with a 25-foot minimum cut length, this tube ships from a 500-foot parent coil. It is a standard choice for compressed air distribution lines, pneumatic tool feeds, and light fluid-transfer applications in industrial and production environments.

This tube is suited for both shop floor and field installations where a flexible, lightweight air line is required. Its nylon construction handles moderate working pressures and a wide service temperature range, making it appropriate for unheated facilities, outdoor enclosures, and general-purpose pneumatic circuits. Installers in manufacturing, MRO, and light industrial settings regularly use this type of tube to build out air distribution systems or replace aging polyurethane and poly-tube runs.

Key Features

• 165 psi maximum working pressure for standard compressed air service
• Wide temperature range: -60 degrees F to 200 degrees F
• 12.00 mm OD / 10.00 mm ID with 1.00 mm wall thickness
• Flexible nylon construction rated UL94HB for flame retardancy
• 78 HR hardness rating — firm enough to resist kinking under moderate bend radius
• 500-foot coil; sold in 1-foot increments with 25-foot minimum cut length

Compatibility

Compatible with Coilock fittings and Poly-Tube fittings as specified by the manufacturer.

Installation Notes

Installation is typically performed by pneumatic system technicians or maintenance mechanics. Before cutting and fitting, depressurize the supply line completely and verify the fitting style matches the tube OD. Use a clean, square tube cut to ensure a leak-free seat in push-to-connect or compression fittings. Observe all applicable facility and regional compressed air system codes when integrating into a pressurized distribution network.
