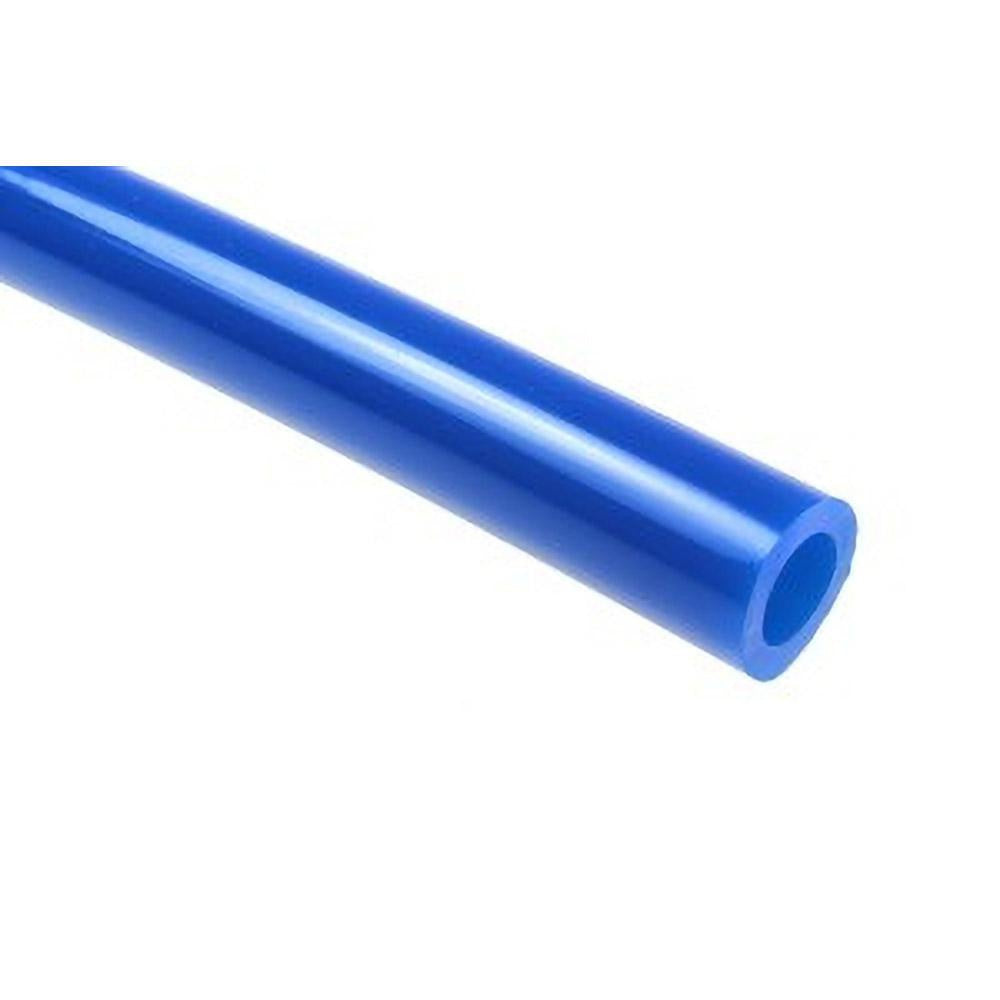

Coilhose Pneumatics NC0440-1000B Nylon Tube 1/4 Od Blue

Product Description

The COILHOSE PNEUMATICS NC0440-1000B is a flexible blue nylon pneumatic tubing designed for compressed air and fluid transfer applications in industrial and trade environments. With a 1/4 inch outside diameter and an 11/64 inch (0.170 inch) inside diameter, this tube handles working pressures up to 265 psi and operates across a wide temperature range of -60 to 200 degrees F. The 0.040 inch wall thickness and nylon construction provide durability and kink resistance. It ships as a 1,000 foot coil and is sold in 1 foot increments with a 25 foot minimum cut length. HVAC technicians, industrial maintenance techs, and pneumatic system installers are the primary users.

This tubing is suited for compressed air lines, pneumatic control circuits, and fluid transfer runs in both light industrial and commercial settings. It performs reliably in environments with temperature swings or exposure to moderate mechanical stress. The flexible nylon material makes routing through panels, enclosures, and equipment frames straightforward. Compatible with Coilock fittings and Poly-Tube fittings, it integrates cleanly into standard pneumatic assemblies without requiring specialty adapters.

Key Features

• 265 psi maximum working pressure for demanding pneumatic applications
• Wide service temperature range: -60 to 200 degrees F
• Flexible nylon construction with 78 HR hardness rating for kink resistance
• Blue color coding simplifies line identification in multi-tube runs
• UL94HB flame rating meets standard industrial compliance requirements
• 1,000 foot coil with 1 foot increment pricing and 25 foot minimum cut length

Compatibility

Compatible with Coilock fittings and Poly-Tube fittings. Designed as a general-purpose flexible nylon pneumatic tube for standard push-to-connect and compression-style pneumatic fitting systems.

Installation Notes

Installation is typically performed by pneumatic system technicians or industrial maintenance professionals. Depressurize and lock out the air supply before cutting or connecting tubing. Use a clean, square tube cut to ensure a proper seal at push-to-connect or compression fittings. Avoid bending below the minimum bend radius specified by the fitting manufacturer to prevent flow restriction or tube damage.
