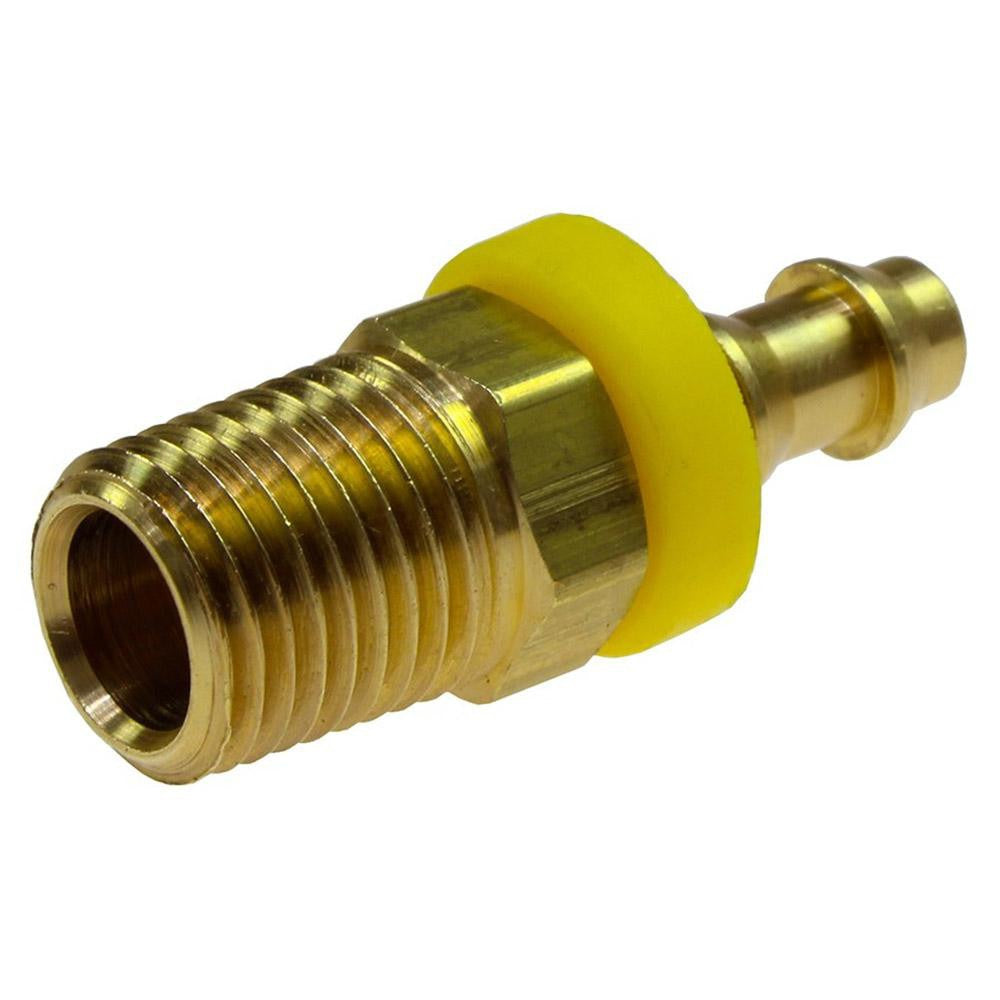

Coilhose Pneumatics LRM0404 Male Hose Connector Brass

Product Description

The COILHOSE PNEUMATICS LRM0404 is a barbed push-on hose male connector designed for pneumatic and fluid transfer lines. Machined from brass, it features a 1/4 inch NPT male thread on one end and a 1/4 inch barb on the other for securing push-on hose without clamps. The fitting is rated to 300 psi maximum working pressure and handles temperatures from -40 degrees F to 212 degrees F, making it suitable for compressed air, water, and a range of compatible fluids in shop, industrial, and light commercial applications. Plumbers, pipefitters, and HVAC technicians install this type of fitting when transitioning from threaded ports to flexible hose assemblies.

This connector is used in pneumatic tool lines, compressor distribution systems, and fluid transfer setups where a threaded male port must terminate into a barbed hose connection. The push-on barb design is compatible with standard 1/4 inch inside diameter flexible hose. It is commonly found in residential and light commercial shops, service trucks, and maintenance installations requiring a reliable, low-profile hose termination.

Key Features

• 1/4 inch NPT male thread for direct connection to standard threaded ports
• 1/4 inch barb accepts push-on flexible hose with 1/4 inch inside diameter
• Brass construction provides corrosion resistance for air and water service
• Rated to 300 psi maximum working pressure
• Wide temperature range: -40 degrees F to 212 degrees F

Compatibility

Designed as a replacement-style barbed push-on male connector for pneumatic and fluid systems using 1/4 inch NPT threaded ports and 1/4 inch inside diameter flexible hose.

Installation Notes

Installation should be performed by a qualified plumber, pipefitter, or pneumatic systems technician. Depressurize and isolate the system before removing or installing any fittings. Apply thread sealant or PTFE tape to NPT threads in accordance with applicable codes before tightening. Ensure hose is fully seated past the barb bead and inspect for leaks before returning the system to service.
