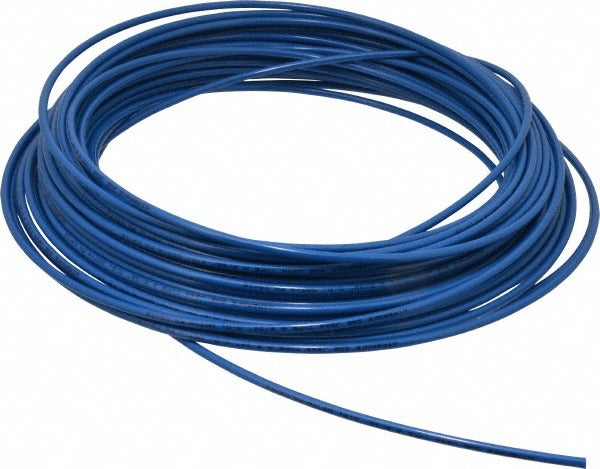

Coilhose Pneumatics ADOT532-100D-B Nylon Tube 5/32 in Od 100 Ft

Product Description

The COILHOSE PNEUMATICS ADOT532-100D-B is a single-wall nylon pneumatic tube designed for compressed air and fluid transfer in industrial and shop environments. It measures 3/32 inch (0.092 inch) inside diameter and 5/32 inch (0.156 inch) outside diameter with a 100-foot coil length. Rated to 150 psi maximum working pressure and a temperature range of -40 to 200 degrees F, it handles the demands of continuous pneumatic service. The blue color aids line identification. It meets SAE Specifications J844 Type A, making it a recognized standard for air brake and pneumatic tubing applications.

This tube is suited for light-duty to medium-duty pneumatic circuit work in manufacturing, automation, and general shop settings. The 100-foot coil length allows technicians to cut custom lengths for instrument air lines, control circuits, and point-of-use pneumatic drops. The flexible nylon construction handles repeated routing through tight spaces and around fixtures with a minimum bend radius of 0.5 inches, reducing the risk of kinking during installation.

Key Features

• 150 psi maximum working pressure for reliable compressed air service
• Temperature range of -40 to 200 degrees F for both cold-start and high-heat environments
• 3/32 inch ID and 5/32 inch OD for compatibility with standard small-bore pneumatic fittings
• 0.5 inch minimum bend radius reduces kinking during routing
• Blue color for quick visual identification of pneumatic lines
• Meets SAE Specifications J844 Type A

Compatibility

Designed for use with standard small-bore pneumatic fittings and push-to-connect adapters accepting 5/32 inch OD nylon tubing. Meets SAE Specifications J844 Type A for pneumatic tubing applications.

Installation Notes

Installation is typically performed by pneumatic system technicians or pipefitters working under applicable shop air and instrumentation codes. Depressurize and lock out the pneumatic circuit before cutting into existing lines or connecting fittings. Use a clean, square tube cutter or sharp deburring tool to ensure a flush, burr-free cut before inserting into push-to-connect fittings. Avoid exceeding the minimum bend radius of 0.5 inches to prevent flow restriction or stress cracking at the bend.
