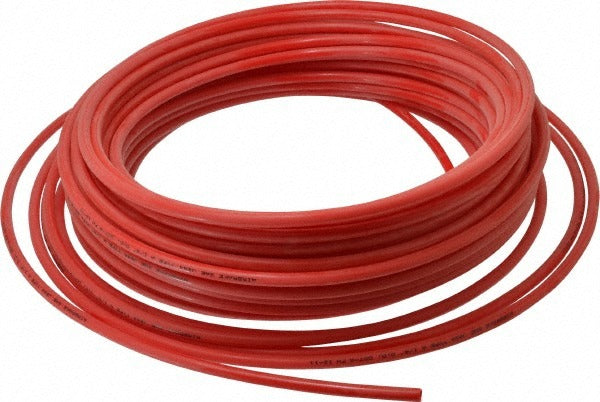

Coilhose Pneumatics ADOT14-100D-R Nylon Tube 1/4 in Od 100 Ft

Product Description

The COILHOSE PNEUMATICS ADOT14-100D-R is a red nylon pneumatic tube rated for continuous use in compressed air and fluid transfer systems. It features a 0.250-inch outside diameter and a 0.170-inch inside diameter, with a 0.040-inch wall thickness that balances flexibility with pressure integrity. The tube is rated to 150 psi maximum working pressure and handles temperatures from -40 degrees F to 200 degrees F, making it suitable for a wide range of shop, production, and field pneumatic applications. Licensed HVAC techs, plumbers, and industrial mechanics install this type of tubing as part of instrument air lines, pilot lines, and general pneumatic circuits.

This nylon tube is suited for residential and light commercial shop environments as well as industrial pneumatic control systems. The 100-foot coil length provides enough material for routing runs in equipment panels, compressed air distribution drops, and pneumatic tool supply lines. It conforms to SAE Specification J844 Type A, which governs nylon tubing used in pneumatic systems and air-brake-style applications. The red color coding aids identification of specific circuits in multi-line installations.

Key Features

• 150 psi maximum working pressure for standard compressed air service
• Temperature range of -40 degrees F to 200 degrees F for demanding environments
• 0.250-inch OD x 0.170-inch ID with 0.040-inch wall thickness
• Minimum bend radius of 1.0 inch reduces kinking during routing
• Meets SAE Specification J844 Type A
• Red color coding for circuit identification in multi-line systems

Compatibility

Designed as a standard 1/4-inch OD nylon pneumatic tube for use with push-to-connect and compression fittings sized for 1/4-inch OD tubing in compressed air and pneumatic control systems.

Installation Notes

Nylon pneumatic tubing is typically installed by pipefitters, HVAC mechanics, or industrial technicians following applicable pneumatic system codes. De-pressurize the entire pneumatic circuit and verify zero pressure before cutting, connecting, or disconnecting tube runs. Use a clean, square cut to ensure proper sealing in push-to-connect or compression fittings. Avoid routing tubing in contact with sharp edges or heat sources that exceed the rated temperature limit.
