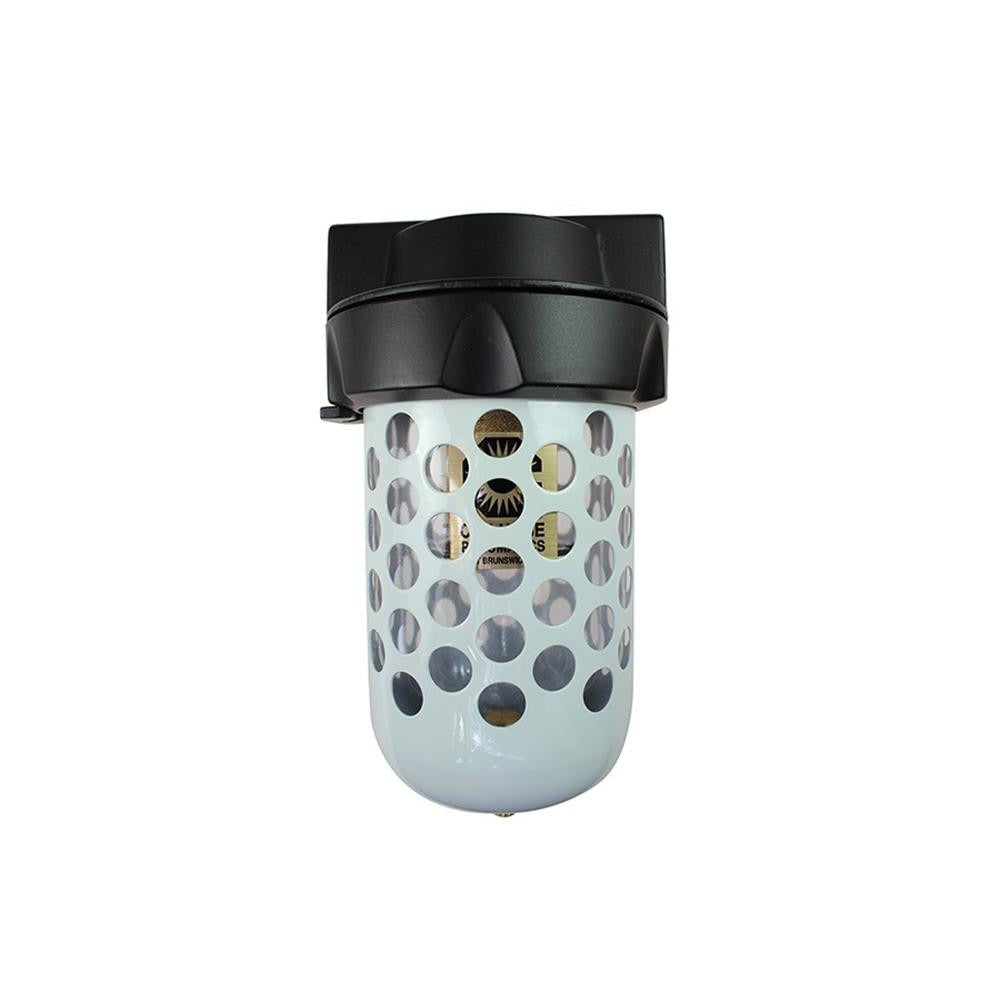

Coilhose Pneumatics 8824RD Compressed Air Filter 1/2 Npt

Product Description

The COILHOSE PNEUMATICS 8824RD is a heavy-duty compressed air filter designed to remove contaminants from compressed air lines in industrial and commercial pneumatic systems. Built around a sintered bronze filter element with a 40-micron rating, it captures particulate matter before it reaches downstream tools, valves, and actuators. The polycarbonate bowl holds up to 8 ounces of separated liquid and drains automatically, reducing maintenance intervals on active lines. This filter connects via 1/2 inch NPT end connections and stands 7 inches tall, making it a straightforward fit for in-line installations. It is typically installed by industrial maintenance technicians, pipefitters, or pneumatic system specialists.

The 8824RD is suited for use in compressed air distribution systems where consistent air quality is required. It fits applications in manufacturing facilities, maintenance shops, and similar environments where pneumatic tools and equipment depend on clean, dry air. The automatic drain feature makes it practical for continuously operating systems where manual bowl draining is not convenient. The 1/2 inch NPT port size is common in mid-flow compressed air circuits serving tools, cylinders, and process equipment.

Key Features

• 40-micron sintered bronze filter element removes particulate from compressed air
• Automatic drain eliminates the need for manual bowl servicing during operation
• Polycarbonate bowl with 8-ounce capacity provides visible liquid level monitoring
• 1/2 inch NPT end connections for standard in-line installation
• 7-inch overall height suits typical filter-regulator panel and manifold layouts
• Heavy-duty Series 88 construction for demanding industrial environments

Compatibility

Designed as an OEM-style replacement or new-installation compressed air filter for pneumatic systems using 1/2 inch NPT in-line connections, compatible with standard compressed air distribution circuits requiring 40-micron particulate filtration.

Installation Notes

Installation is typically performed by a qualified pipefitter or pneumatic systems technician. Depressurize and lock out the compressed air supply completely before removing any existing filter or making connections. Apply thread sealant appropriate for compressed air service to NPT fittings and torque to the fitting manufacturer's specifications. Verify the automatic drain is functioning after startup and confirm no leaks are present before returning the system to service.
